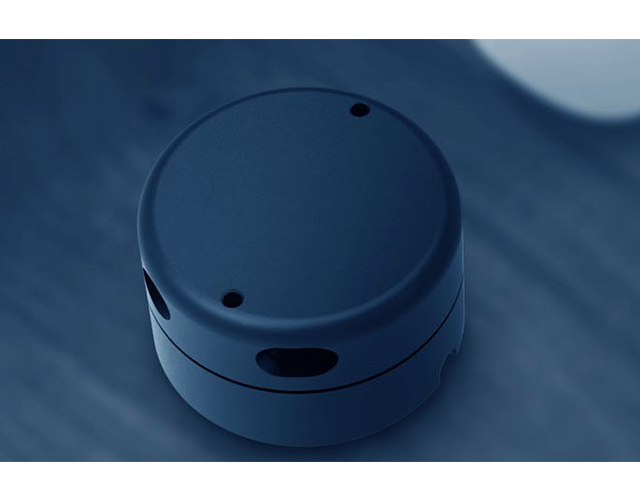

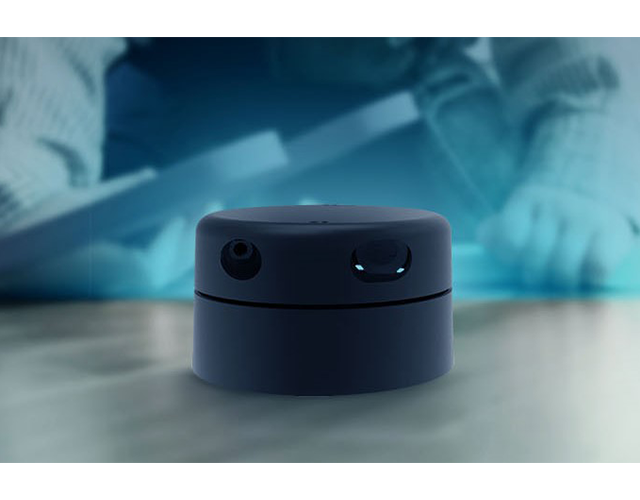

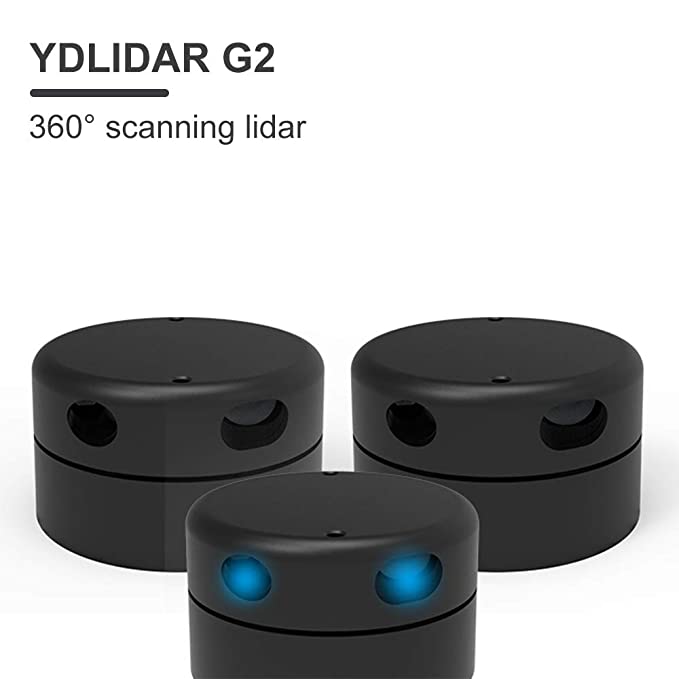

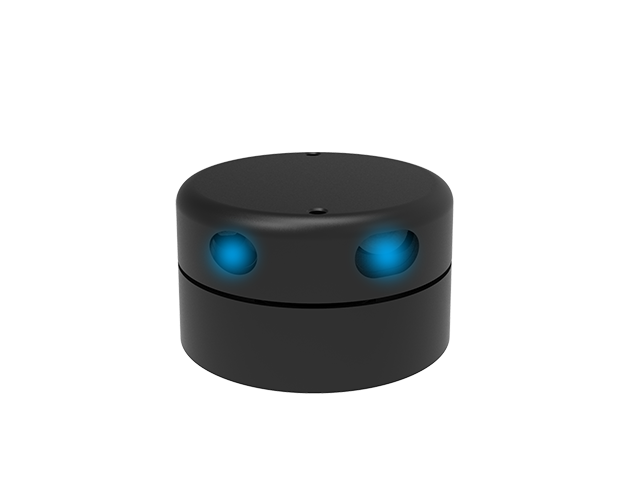

YDLIDAR G2 is a 360 degrees 2D LiDAR (hereinafter referred to as G2) developed by the EAI team. Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Applications:

1. Robot navigation and obstacle avoidance
2. Industrial automation
3. Regional security
4. Intelligent transportation
5. Environmental scanning and 3D reconstruction
6. Digital multimedia interaction
7. Robot ROS teaching and research

Features:

1. 360 degrees scan ranging
2. Stable performance and high accuracy

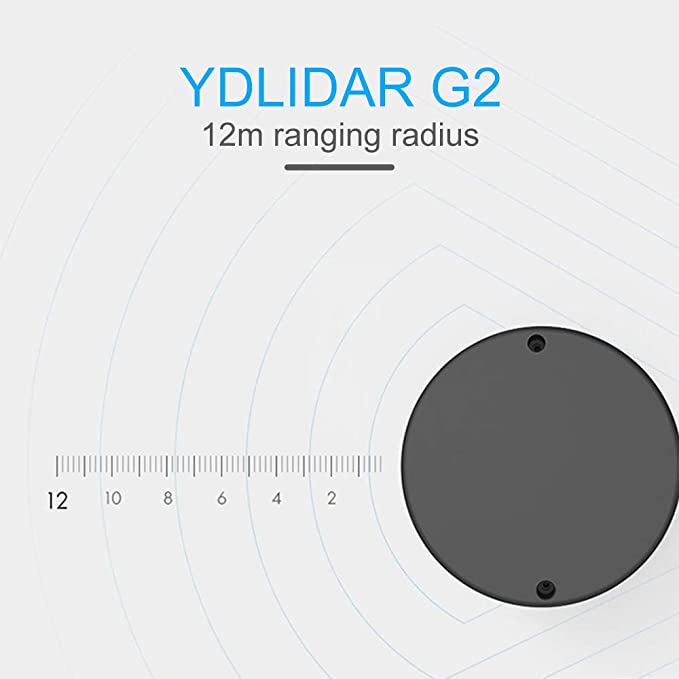

3. Wide measuring range
4. Strong resistance to ambient light interference
5. Industrial-grade brushless motor drive, stable performance
6. Laser power meets Class I laser safety standards

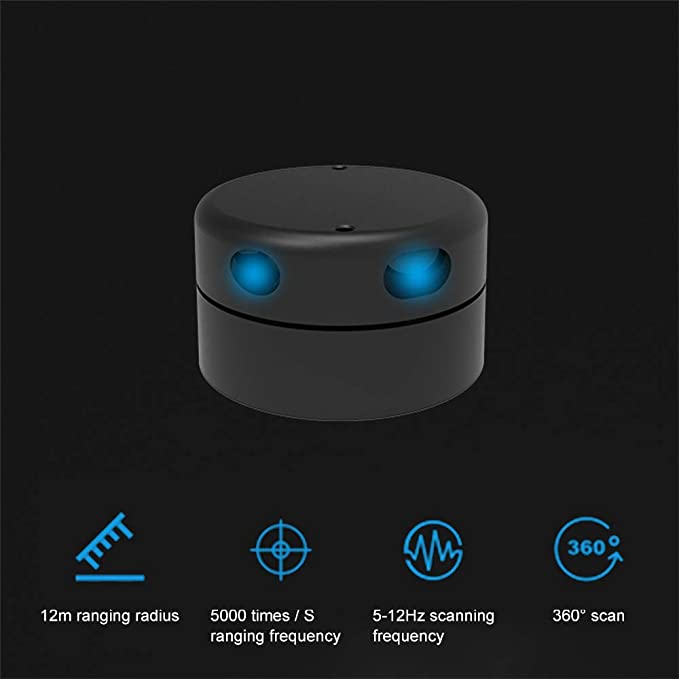

7. 360 degrees omnidirectional scanning and 5-12Hz frequency
8. Using optical and magnetic fusion technology to realize wireless communication and wireless power supply
9. High-speed ranging, up to 5000Hz frequency

Useful Link:

https://www.ydlidar.com/products/view/1.html

Packages Includes:

• 1 x G2 Lidar
• 1 x USB Type-C Cable
• 1 x USB Adapter Board
