Benewake TF-LUNA Micro LiDAR Distance Sensor for IoT ITS (Range: 0.2m~8m) UART
- Range : 0.2m~8m
- Range resolution 1cm
- Power Consumption: ≤0.35W
- Frame Rate:
- 1-250Hz(Default 100Hz)
- FOV:
- 2°
- Weight:
- <=5g
SKU: Not Found
Brand: Benewake
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
If you want to detect Obstacles with your drones then the Benewake TF03 100M Long Distance Laser Lidar/Rangefinder is a quite good solution.No matter If you are a newbie, you can learn more things about this distance sensor.
TF-Luna is a single-point ranging LiDAR, based on the TOF principle. With unique optical and electrical design, it can achieve stable, accurate, and highly sensitive range measurement. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
The TF Luna is suitable for its technical specifications and its ultra-compact size perfect for identification applications of all kinds. This includes, for example, level measurements, lift systems, or applications in intrusion detection. Due to its easy installation and integration, you can use the LiDAR from Benewake also used in numerous other projects.
Product Characteristics
The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
Extreme Cost Performance
Low-cost ranging LiDAR module, with 0.2-8m operating range. TF-Luna has a highly stable, accurate, sensitive range detection.
Slim Figure Yet Big Skill
The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
The TF-Luna adopts serial communication protocol so that it can connect to any control board supporting serial port communication like Arduino, Raspberry Pi, etc.

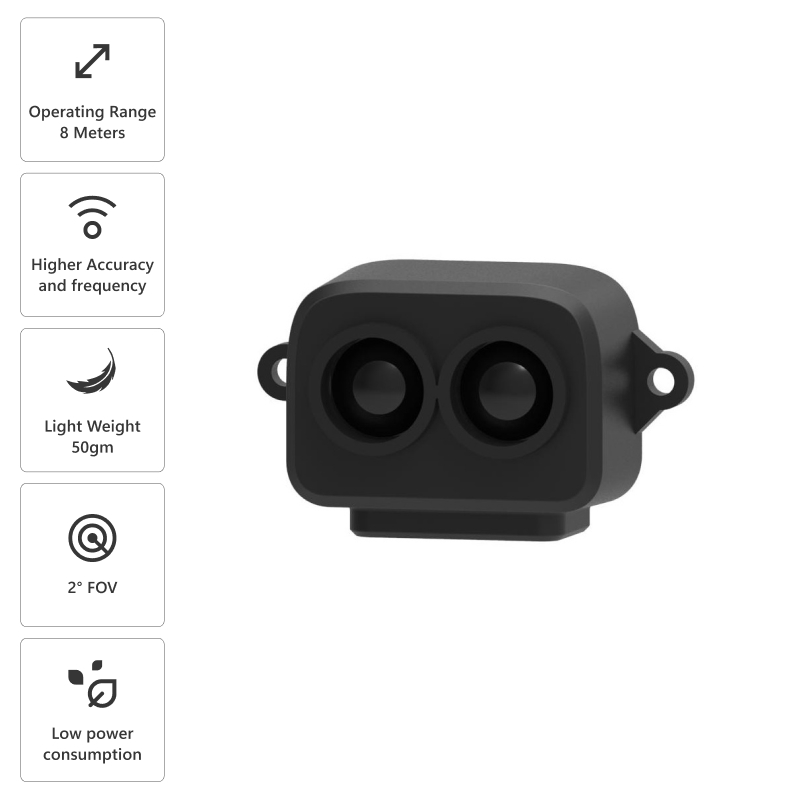

Features:
- The range is up to 0.2m~8m
- Low power consumption
- Wide range of temperature adaptation and voltage input.
- It has high accuracy and frequency.
- Small size
- Lightweight
Applications:
- Auxiliary focus
- Elevator projection
- Intrusion detection
- Level measurement
- UAV/UAS Robots
Package Includes:
1 x Benewake TF-LUNA Micro LiDAR Distance Sensor for IoT ITS (Range: 0.2m~8m) UART

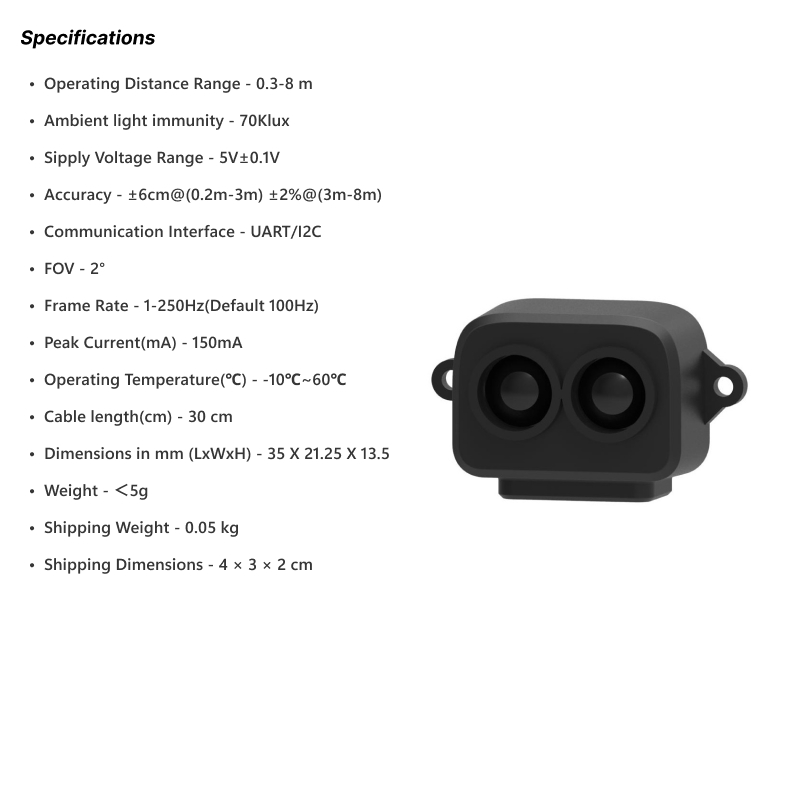

Technical Specifications
| Accuracy | ±6cm@(0.2m-3m) ±2%@(3m-8m) |
|---|---|
| Ambient light immunity(Klux) | 70klux |
| Average Current(mA) | ≤70mA |
| Cable Length (cm) | 30 |
| Communication Interface | UART / I2C |
| Dimensions (L x W x H) mm | 35*21.25*13.5 |
| Distance resolution | 1cm |
| Field of View (FOV) | 2Deg. |
| Frame rate(Hz) | 1-250Hz(Default 100Hz) |
| Model | LiDAR Distance Sensor |
| Operating Temperature (°C) | -10℃~60℃ |
| Peak Current (mA) | 150mA |
| Power Consumption (W) | ≤0.35W |
| Shipping Dimensions | 4 × 3 × 2 cm |
| Shipping Weight | 0.05 kg |
| Supply Voltage (V) | 5V±0.1V |
| Weight (g) | ＜5g |
