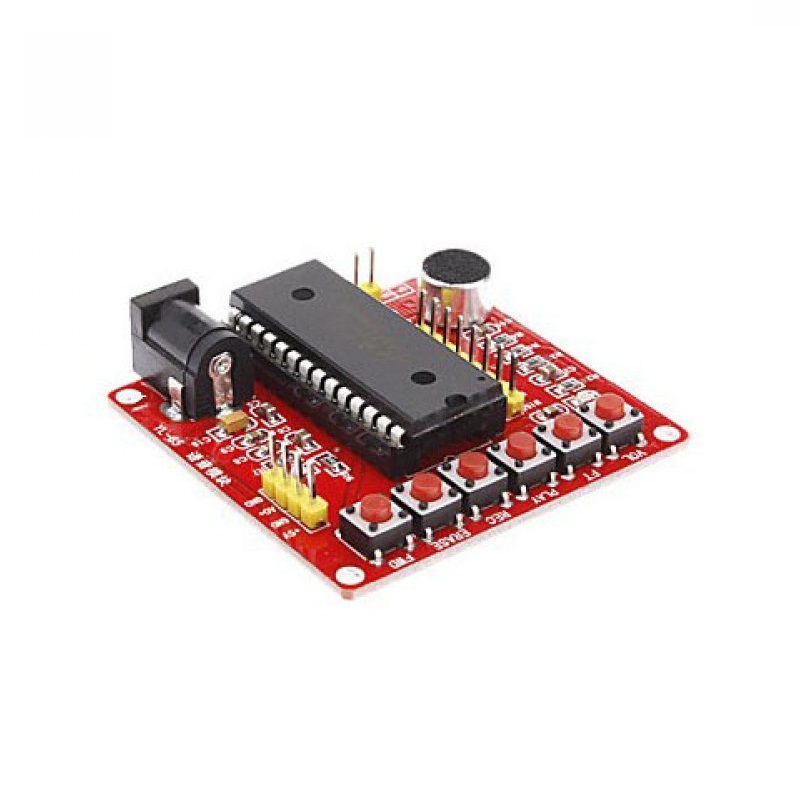

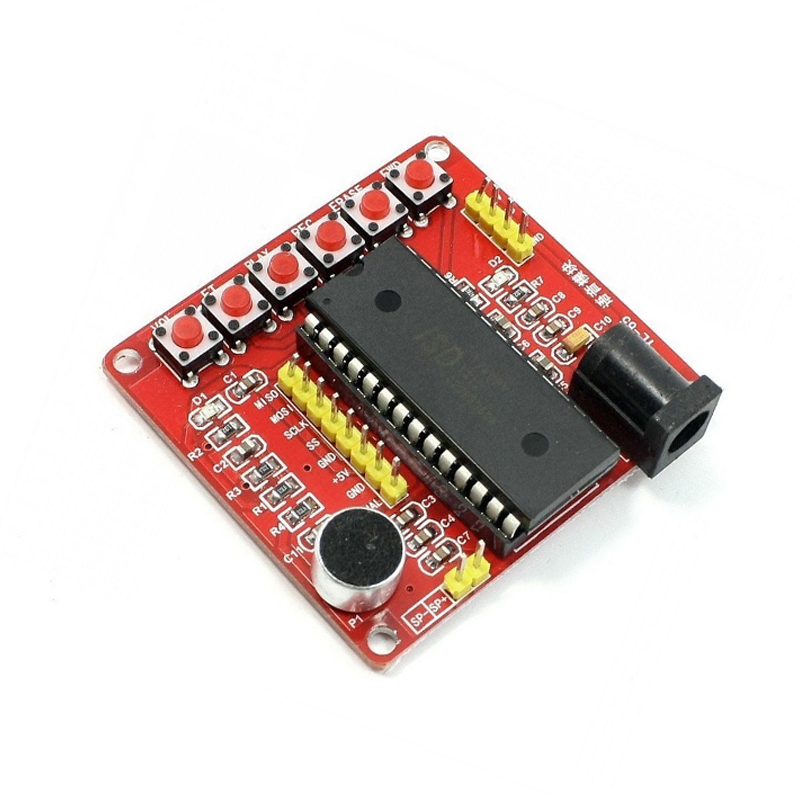

This is ISD1760 Recording Playback Module. The ISD1700 voice module is designed for users who can quickly understand and use the ISD1700 series family chips. It applies to all ISD1700 series chip, with a simple, fully functional characteristics. Recording chip ISD1700 series is a highly integrated, high-performance chips.

ISD1760 Recording Playback Module can do multi-segment recording, the sampling rate can be adjusted from 4K to 12K, the power supply can range from 2.4V to 5.5V. ISD1700 there was the new recording prompts, when a new recording after, LED back flash once every few seconds to alert users to new recordings. In addition, there are four kinds of sound to prompt the user’s operating results, such as start recording, stop recording, erase, erase all the next one and so on.

Recording data is stored in the FLASH chip, without any compression, so there is a better sound quality and power storage. Chip has two independent audio signal input channel, microphone input, and analog signal inputs.

In the independent key mode, when the operation is completed, a functional chip will automatically enter the power-down mode to reduce power consumption. In SPI mode, the user can do more functions on the chip operation. If any memory address for playback on the analog channel configuration register (Analog PathConfiguration register, APC) for reading and writing.

Note:- This Module Is Available In Blue And Red Color. Will Be Sent Randomly.

Features :

1. Non-volatile message storage using patented multi-level storage (MLS)
2. Full range of Record and Playback Durations (40 Seconds to 120 Seconds)
3. 4.0 to 12.0KHz Sampling Frequency provides Industry-Leading Sound Quality
4. Designed for Message Management
5. Single/Multiple messages
6. Low Voltage Operation
7. Package: PDIP, SOIC, Die.

Package Includes :

1 x ISD1760 Recording Playback Module
