LIDAR Sensors

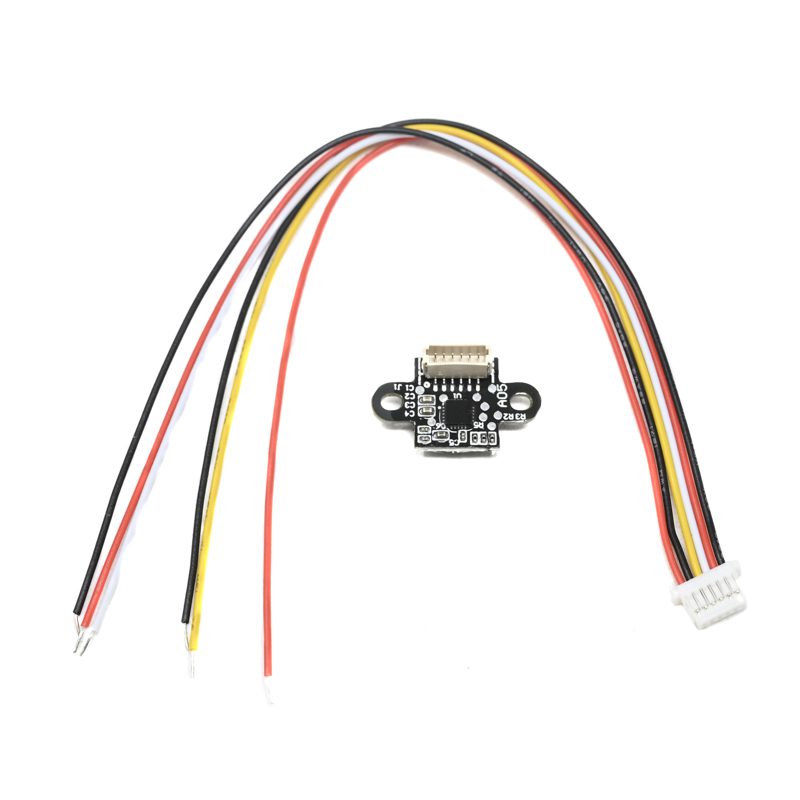

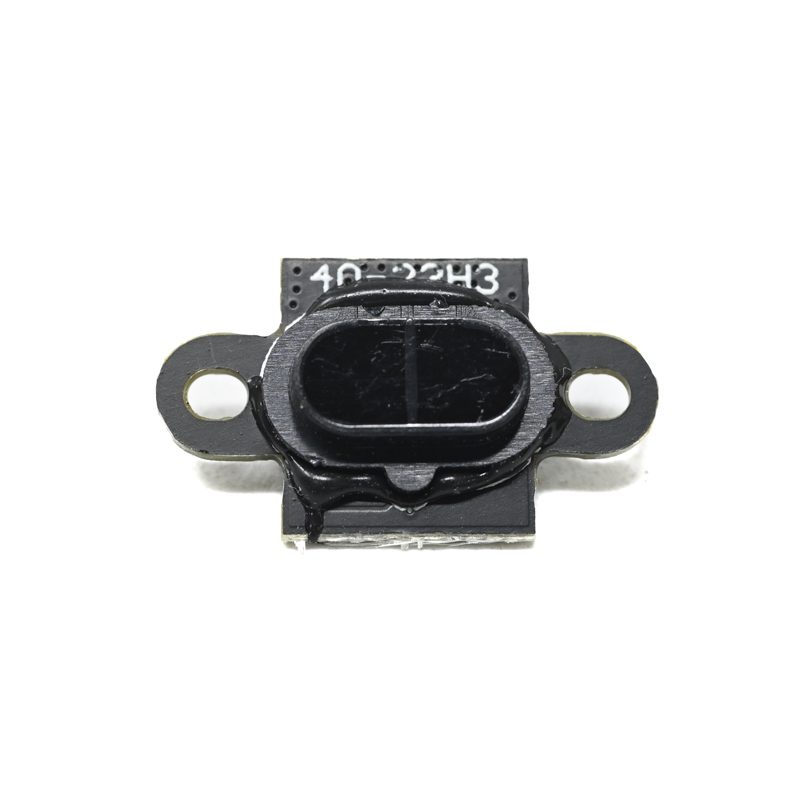

Benewake TF-LC02 LiDAR Range Finder Sensor Module VCSEL DC 3-3.6V, Range: 3cm~200cm
- Product: Lidar Range Sensor Module
- Measuring range: 3cm~200cm at 90% reflectivity
- Detection speed: 33 msec
- Accuracy: ±2cm at (3cm-100cm); ±5% at (100-200cm)
- Storage temperature: -20-85°C
SKU: Not Found
Brand: Benewake
Out of stock
₹867.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
TF-LC02 is a LiDAR ranging module including a high-precision ToF sensor, and it has a built-in TDC (ie-to-digital converter) circuit. It can be used for ranging of various electronic devices such as sweepers, robots, drones and smart home products.TF-LC02 lidar ranging module is easy to operate and install, and supports UART communication. Measuring range: 3cm~200cm at 90% reflectivity丨 Detection speed: 33msec丨 Accuracy:±2cm at (3cm~100cm); ±5% @ (100~200cm).This ranging module is recommended to be used in indoor ambient light conditions. Strong outdoor light will interfere with this product and cause performance degradation.
Package include:
1 X Benewake TF-LC02 LiDAR Range Finder Sensor Module VCSEL DC 3-3.6V, Range: 3cm~200cm
Technical Specifications
| Accuracy | ±2cm at (3cm-100cm); ±5% at (100-200cm) |
|---|---|
| Additional Specs. | Detection speed: 33msec |
| Measuring Current Range | 3cm~200cm at 90% reflectivity |
| Operating Temperature (°C) | -20-70°C |
| Shipping Dimensions | 11 × 7 × 1 cm |
| Shipping Weight | 0.03 kg |
| Storage Temperature (°C) | -20-85°C |
