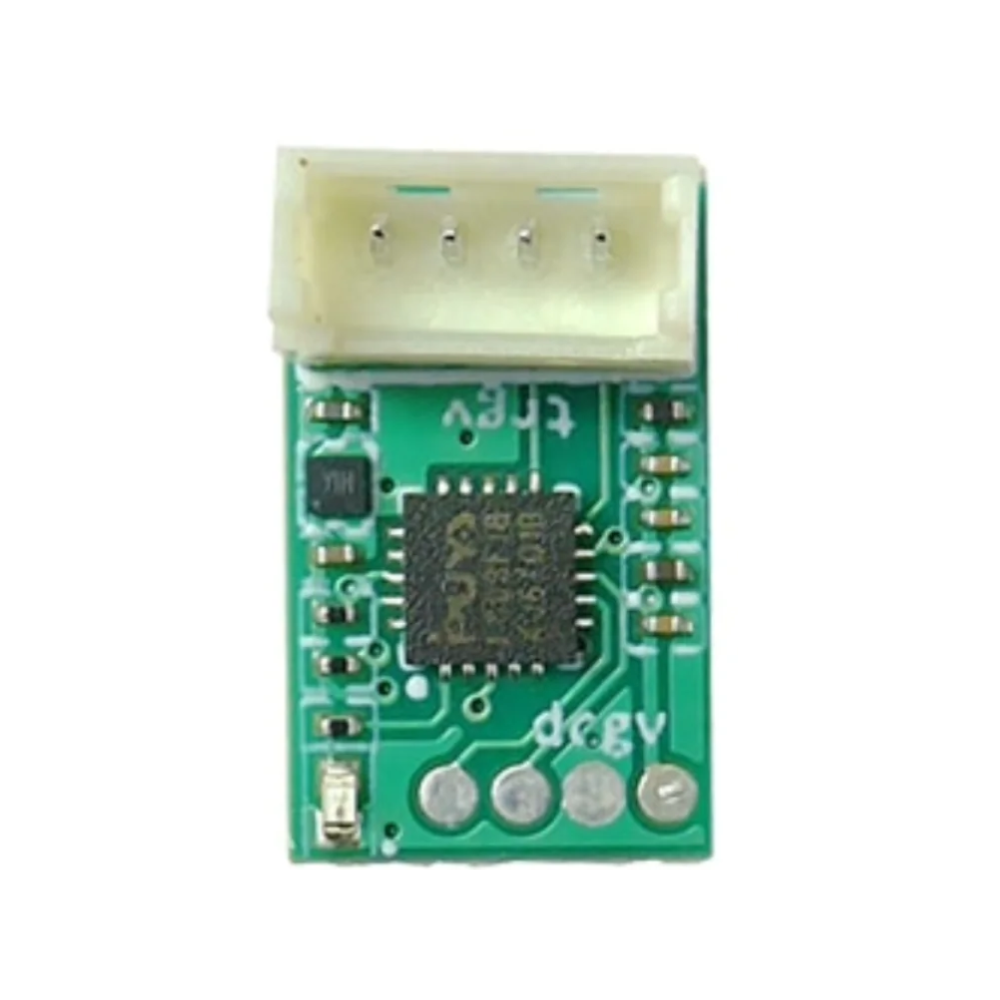

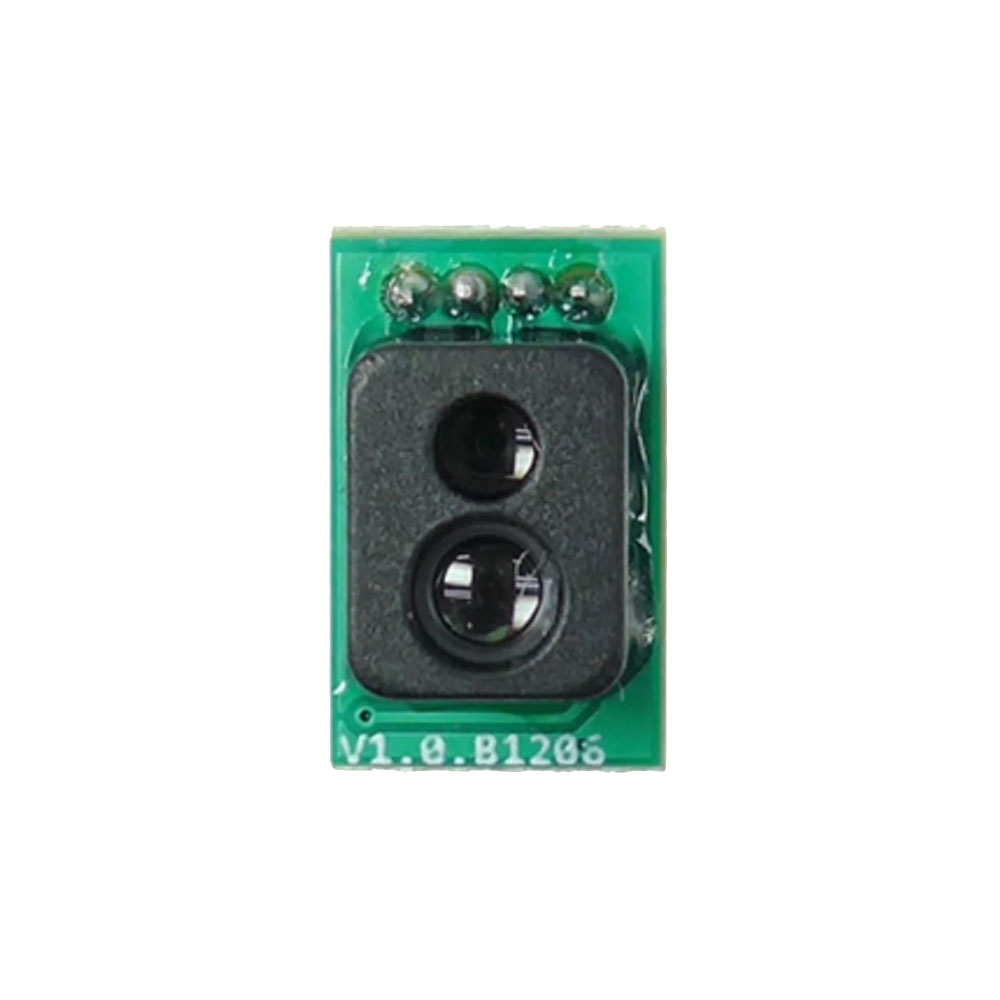

PONO TSD10-10m Single-Point ToF LiDAR Distance Sensor Module, UART, 5V, 50Hz, Range: 0.05~10m
- Technology: DTOF (Direct Time of Flight)
- Range: 0.05m – 10m
- Accuracy: ±5cm (<5m), 1% (≥5m)
- Resolution: 1mm
- Frequency: 50Hz
SKU: Not Found
Brand: PONO
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The PONO TSD10-10m Single-Point ToF LiDAR Distance Sensor Module is a compact and cost-effective ranging solution based on the DTOF principle. Designed for drones, robotics, and industrial automation, it offers reliable distance measurement from 0.05m to 10m with high accuracy and fast 50Hz output. Its strong ambient light immunity ensures stable performance even in bright environments. With UART communication, low power consumption, and ultra-small form factor, this sensor is easy to integrate into embedded systems. Ideal for obstacle avoidance, altitude holding, and safety monitoring, the TSD10 delivers consistent and precise measurements in real-time applications.
Features:
- DTOF-based precise distance measurement
- Measuring range up to 10 meters
- High-speed 50Hz measurement frequency
- Accuracy ±5cm (<5m), 1% (≥5m)
- Strong ambient light immunity up to 70Klux
- Compact and lightweight (1g) design
- UART communication interface
- Low power consumption (<0.1W)
Package Includes:
1 x PONO TSD10-10m Single-Point ToF LiDAR Distance Sensor Module, UART, 5V, 50Hz, Range: 0.05~10m
Technical Specifications
| Accuracy | ±5cm (<5m), 1% (≥5m) |
|---|---|
| Ambient light immunity(Klux) | 70 |
| Distance range | 0.05m – 10m |
| Frequency (Hz) | 50 |
| Height (mm) | 9.1 |
| Item Type | LiDAR Distance Sensor Module |
| Length (mm) | 12 |
| Model | TSD10 |
| Peak Current (mA) | 4.5 |
| Repeatability | ±10mm |
| Resolution | 1mm |
| Shipping Dimensions | 5 × 5 × 5 cm |
| Shipping Weight | 0.05 kg |
| Supply Voltage (V) | 4.5–5.5V DC |
| Technology | DTOF (Direct Time of Flight) |
| Weight (g) | ~10 |
| Width (mm) | 7.5 |
