TTM DC N20 Metal Geared Motor with Encoder

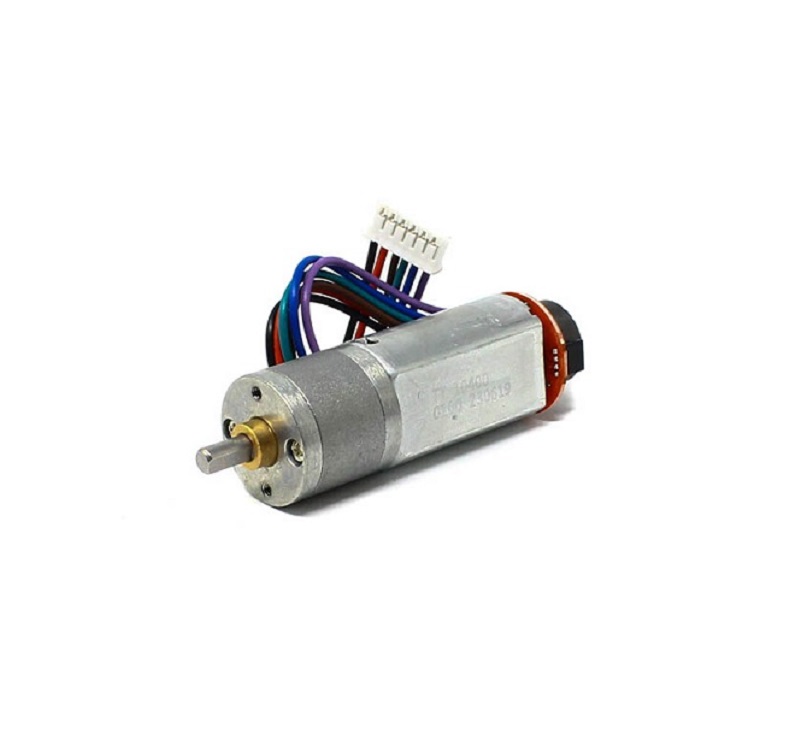

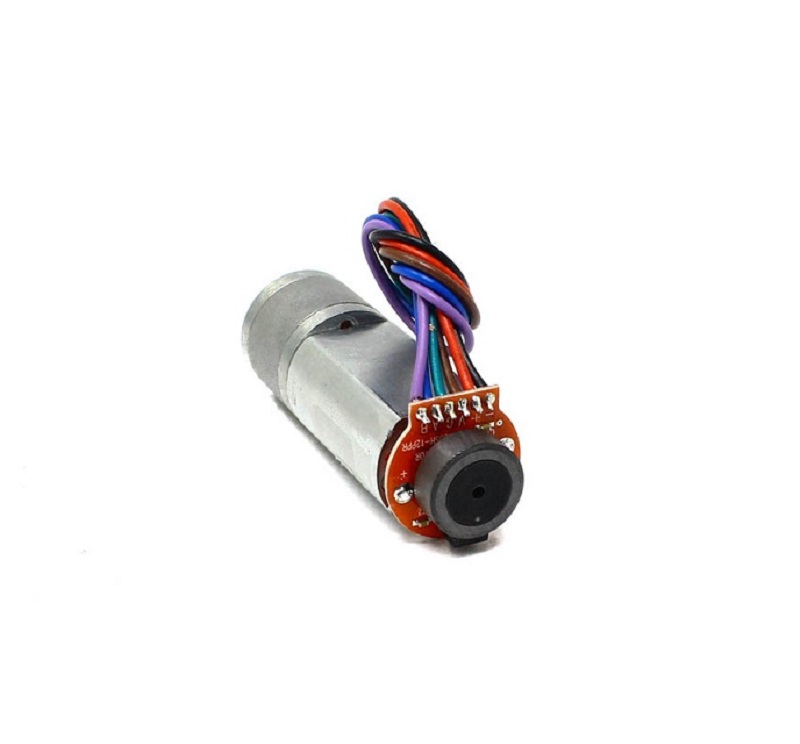

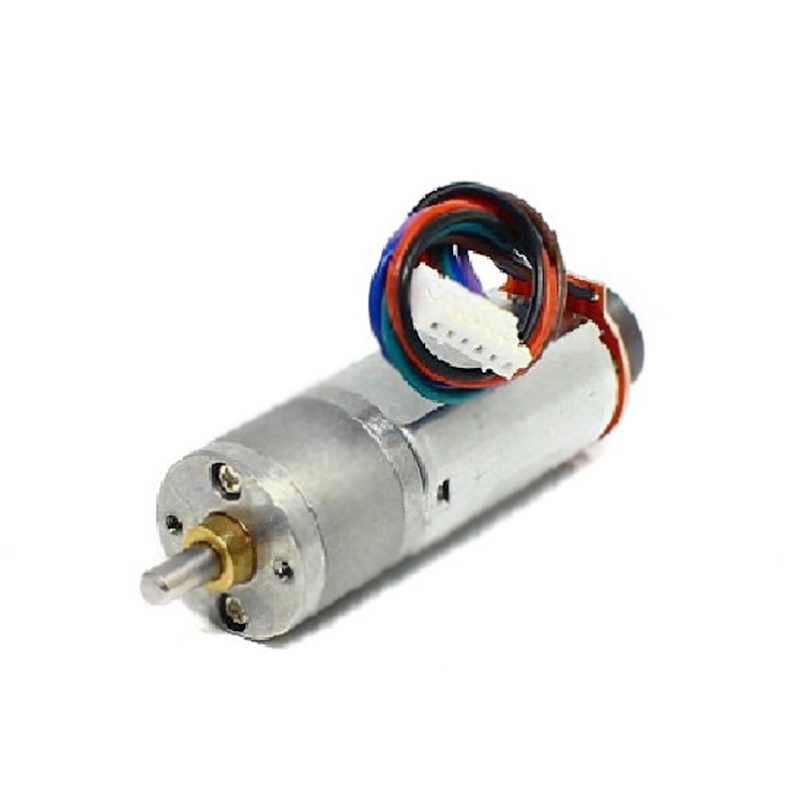

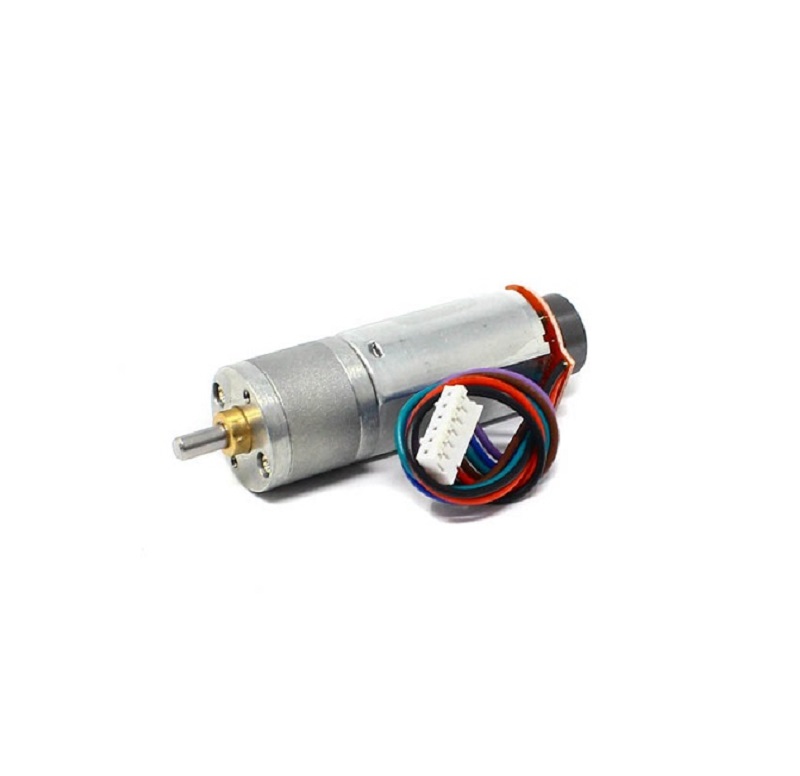

TT Motor – N20 6V 240RPM Metal Gear Motor With Encoder D Type Shaft
- Model: N20
- Type: Metal Gear Motor With Encoder D-Type Shaft
- Operating Voltage: 6V
- Rated RPM: 240
SKU: Not Found
Brand: TT Motors
Out of stock
₹446.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N20 6V 240RPM Metal Gear with Encoder is a compact and versatile motor system. It combines a durable metal gearbox and a precise encoder, providing smooth and controlled rotational motion. Operating at 6V, it achieves a speed of 240 revolutions per minute, making it suitable for various applications that require accurate speed and position control. The D-type encoder enhances its functionality by enabling accurate feedback, making it an ideal choice for robotics, automation, and other projects demanding reliable and controlled motor performance.
Note: For more technical details, please refer datasheet.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607480 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 52 |
| 1607483 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 55 |
| 1607486 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 65 |
| 1607484 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 90 |
| 1607487 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 125 |
| 1607478 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 125 |
| 1607479 | N20 Metal gear Motor With Encoder D type | 12 | 135 |
| 1607481 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 175 |
| 1607485 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 240 |
| 1607482 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 340 |
Features:
- N20 6V 240RPM Metal Gear Motor with Encoder
- Compact and durable metal gearbox
- Precise D-type encoder for accurate feedback
- Operates at 6V voltage
- Achieves a speed of 240 RPM
- Ideal for robotics and automation
- Reliable and controlled motor performance
Package Includes:
1 x N20 6V 240RPM Metal Gear Motor With Encoder D Type Shaft
Technical Specifications
| Length (mm) | 70 |
|---|---|
| Operating Voltage (V) | 6 |
| Rated Speed (RPM) | 240 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 8 |
| Shaft Type | D Type |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.062 kg |
| Weight (g) | 60 |
