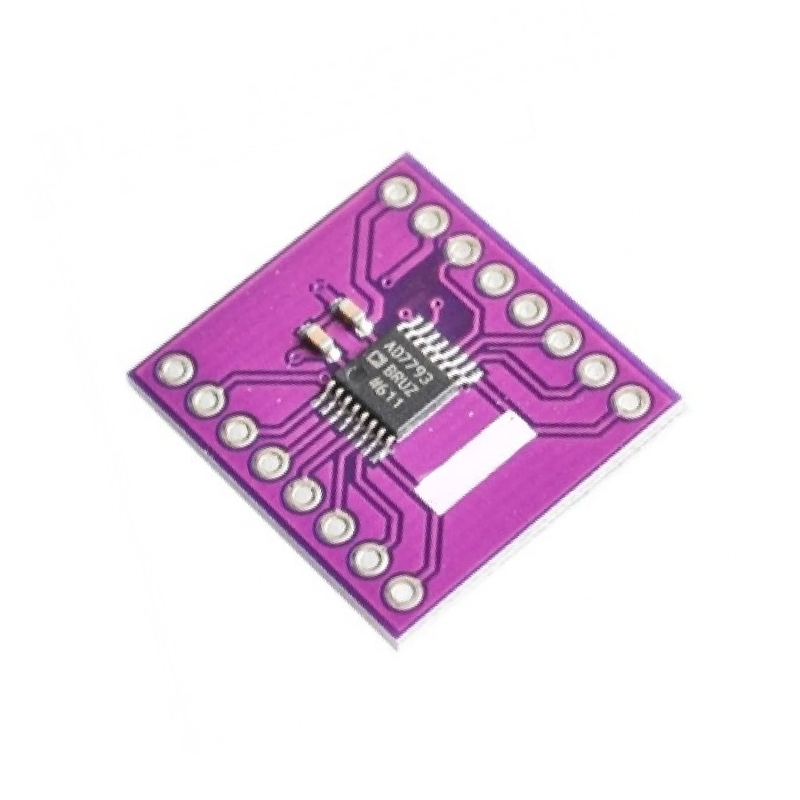

The CJMCU-7793 AD7793BRUZ Module is a high-precision 24-bit ADC designed for engineers and hobbyists who need exceptionally accurate low-level signal measurements. Built around Analog Devices’ AD7793 chip, this module integrates a low-noise instrumentation amplifier, allowing tiny sensor signals to be read directly without additional conditioning. It offers up to 23-bit effective resolution, extremely low RMS noise, and a wide programmable gain range for flexible use. With built-in current sources, bias generator, internal clock, and excellent 50/60 Hz noise rejection, it becomes an ideal choice for industrial sensing, thermocouple/RTD systems, laboratory instrumentation, and any precision monitoring application.

Features:

1. 1 µA maximum in power-down mode
2. Integrated low-noise programmable-gain instrumentation amplifier
3. Internal band-gap reference with 4 ppm/°C drift
4. Configurable update rate: 4.17 Hz to 470 Hz
5. Three differential measurement inputs
6. Internal clock oscillator
7. Excellent 50/60 Hz rejection
8. On-chip programmable current sources and bias generator

Package Includes:

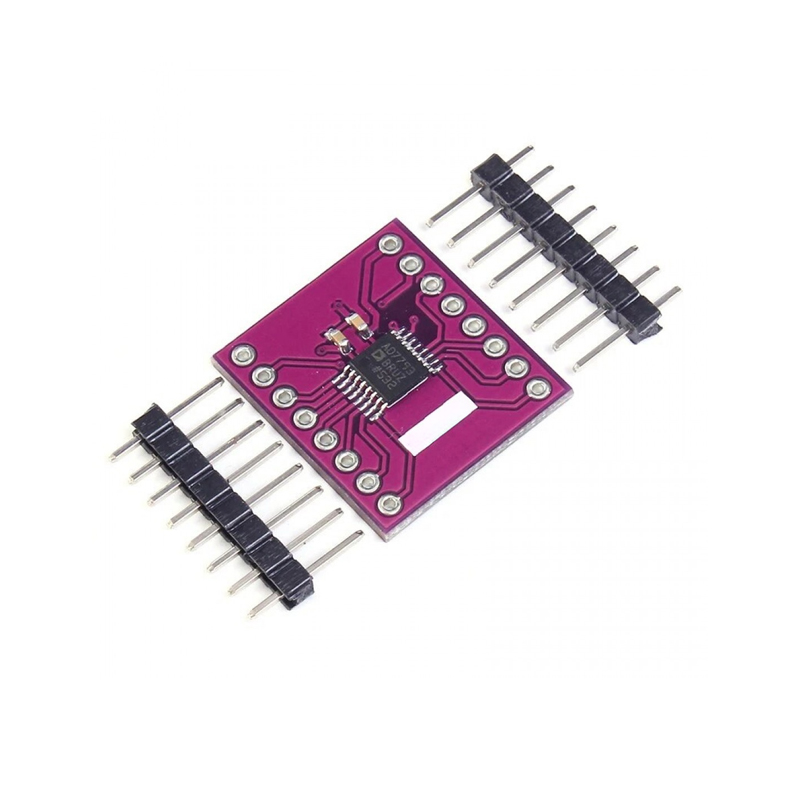

1 x AD7793BRUZ 24-Bit ADC – 3-Channel Instrumentation Amplifier
