Audio Amplifier Module

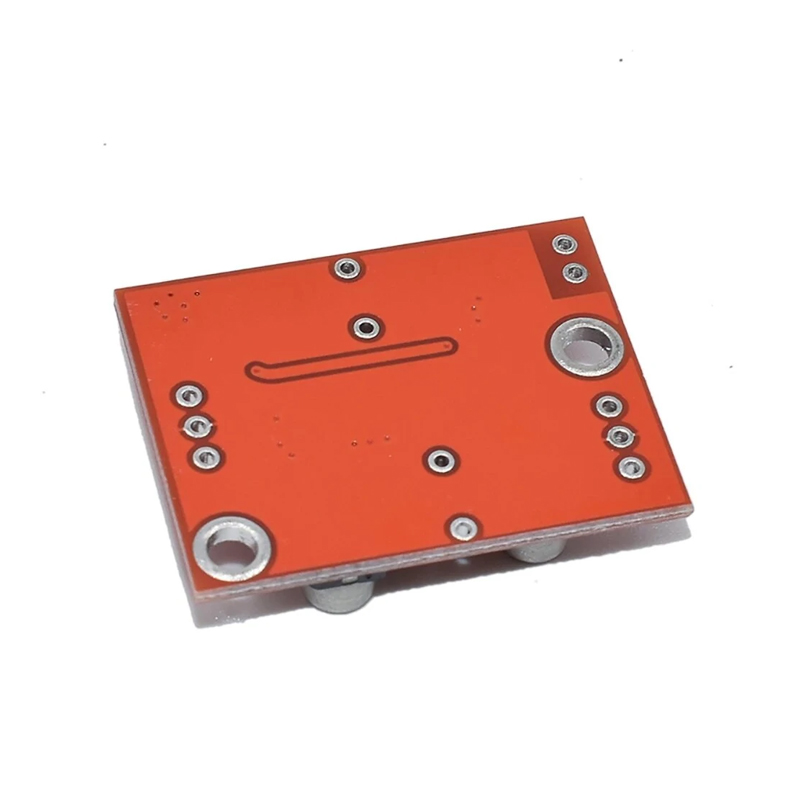

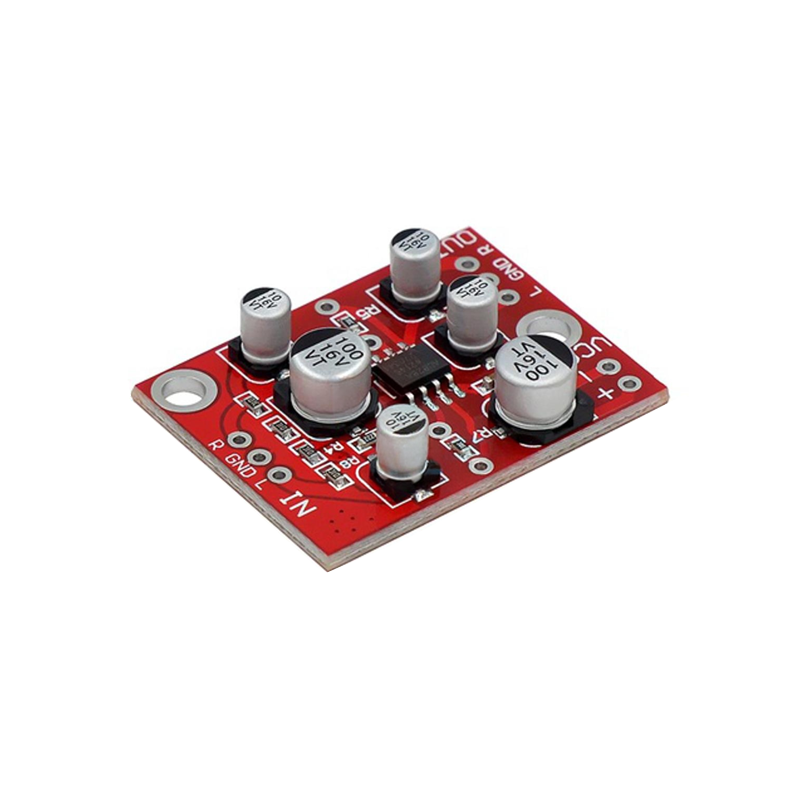

TDA1308 Operational Amplifier Front Stage Amplifier Board
- Compact SMD design, space-saving and reliable
- Imported non-polar capacitors for clean audio
- Works on 3V–6V, perfect for battery use
- Adjustable gain via R5/R7 (default ~5×)
- Easy resistor customization with SMD pads
SKU: Not Found
Brand: Generic
Out of stock
₹125.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Amplifier Board is ultra-compact audio preamplifier module is built using full SMD technology and features high-quality imported non-polar coupling capacitors for stable audio performance. Powered by the original TDA1308 low-voltage op-amp, it supports operation from 3V to 6V, making it ideal for portable and battery-powered applications.
The gain is adjustable via resistors R5 and R7, with a default magnification of ~5×. For customization, the onboard SMD resistors can be replaced with through-hole resistors via the reserved solder pads.
Features:
- Ultra-Compact Design: Full surface-mount construction for reliability and space-saving.
- High-Quality Components: Uses imported non-polar capacitors for clean signal coupling.
- Low-Voltage Operation: Works efficiently from 3V to 6V—ideal for battery-powered projects.
- Gain Adjustable: Change R5/R7 to set gain (default ~5×); higher resistance = higher gain.
- Flexible Customization: Easily swap chip resistors with plug-in resistors using reserved SMD pads.
Package Includes:
1 x TDA1308 Operational Amplifier front Stage Amplifier Board
Technical Specifications
| Amplifier Chip | TDA1308 |
|---|---|
| Height (mm) | 10 |
| Length (mm) | 33 |
| Model No | TDA1308 |
| Operating Voltage (VDC) | DC 3 – 6 |
| Shipping Dimensions | 10 × 10 × 2 cm |
| Shipping Weight | 0.007 kg |
| Weight (g) | 05 |
| Width (mm) | 25 |
