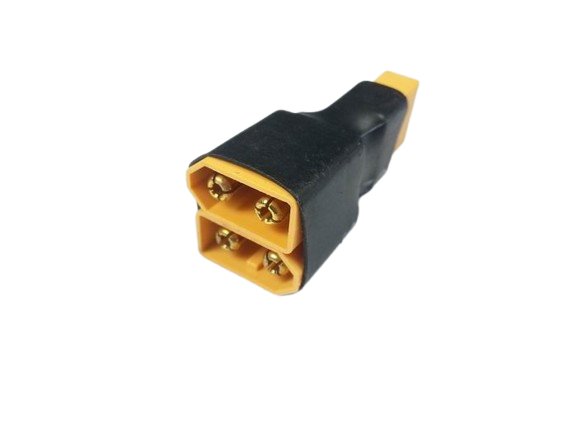

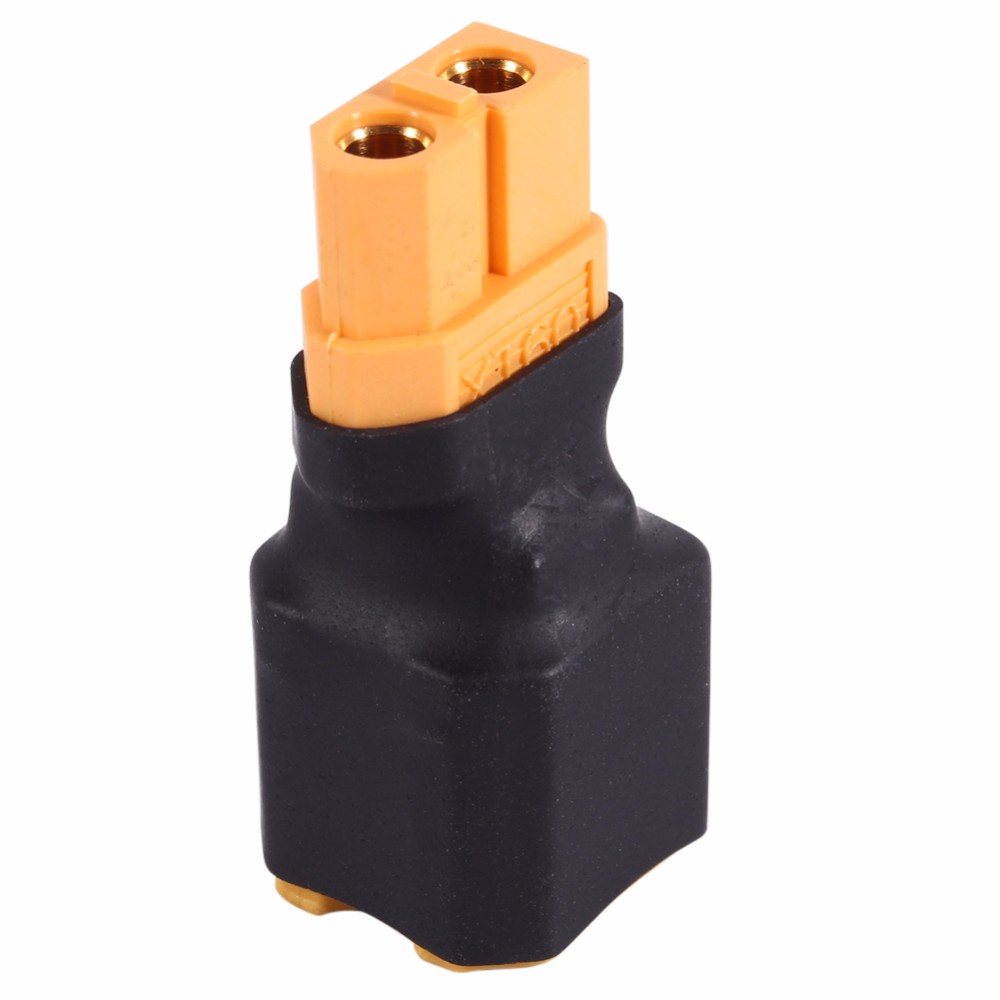

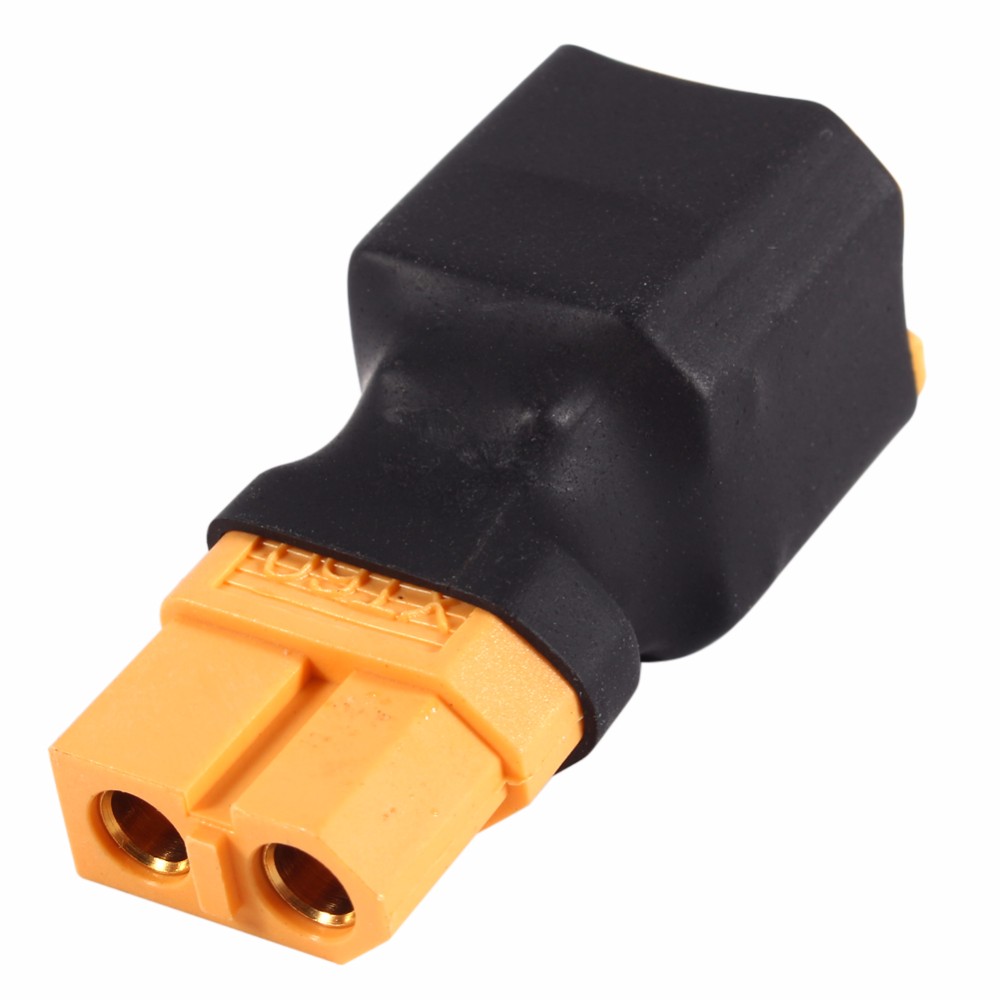

XT60 Series Adaptor Connection Plug – 1Pcs
- Designed for heavy duty
- High Power Application
- Connectors: 2 XT60 Male Connectors and 1 XT60 Female Connector
- Connector Type: XT60
- Material: High-Temp nylon
- Length: 42 mm
SKU: Not Found
Brand: Unknown Brand
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The XT60 Series Adaptor Connection Plug connects two LiPo batteries in series to increase the voltage i.e If we connect two 3S 1000mAh 30C batteries using XT60 Series adaptor they will act as 6 cell battery pack so to make the total voltage 22.2V.
The XT60 Series Adapters are the perfect solution for the modeler looking to increase voltage and reduce the weight of a model. The adapters also prevent adding additional lengths of cable, unlike most solutions.
It has two XT60 Male connectors at one end and one XT60 Female connector on another end. The series adapters are neatly soldered together and heat shrink shielded for a professional finish. These connectors are heavy-duty connectors with high power applications.
These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in.
Features :
- Designed for heavy-duty.
- High Power Application.
Package Includes :
1 x XT60 Series Adaptor Connection Plug.
Technical Specifications
| Connector Material | Gold plated connector and Nylon |
|---|---|
| Connector Type | 2 Male, 1 Female (Series Connection) |
| Constant Current capacity (A) | 60 |
| Height (mm) | 17 |
| Item Type | Adapter, Plug |
| Length (mm) | 39 |
| Max Current capacity (A) | 65 (30 sec) |
| Model | XT 60 |
| Shipping Dimensions | 5 × 4 × 3 cm |
| Shipping Weight | 0.016 kg |
| Weight (g) | 12 |
| Width (mm) | 18 |
