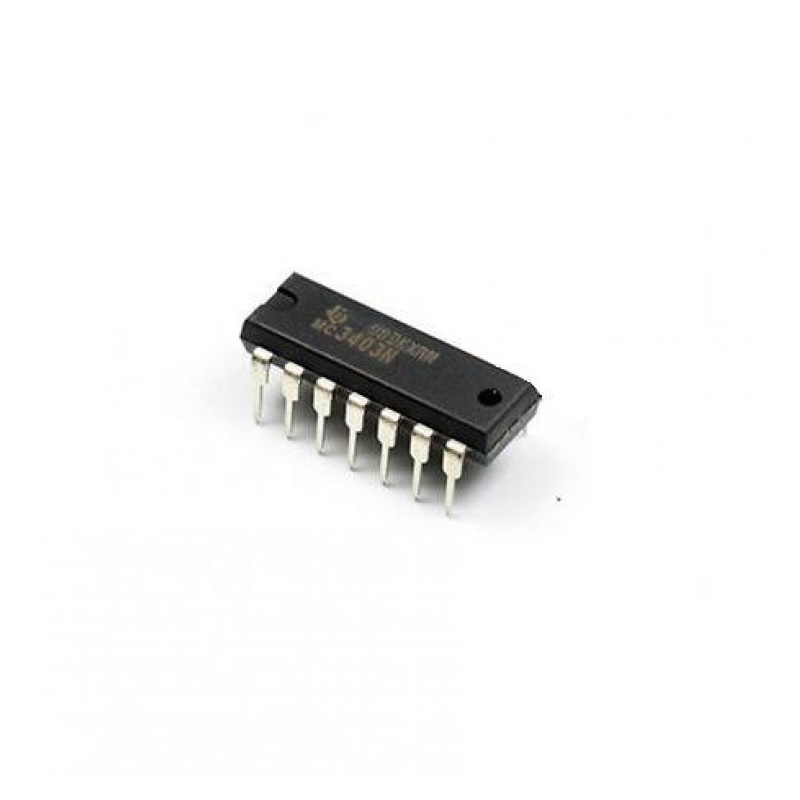

MC3403 Quad Low-Power Operational Amplifier IC DIP-14 Package
- Wide Range of Supply Voltages, Single-Supply . . . 3 V to 36 V or Dual Supplies
- Class AB Output Stage
- True Differential Input Stage
- Low Input Bias Current
- Internal Frequency Compensa
SKU: Not Found
Brand: Generic
Out of stock
₹87.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The MC3403 are quadruple operational amplifiers similar in performance to the µA741, but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 3 V to 36 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 36 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC – 1.5 V. Quiescent supply currents are less than one-half those of the µA741. The MC3403 is characterized for operation from 0°C
Features:
- Class AB Output Stage
- True Differential Input Stage
- Low Input Bias Current
- Internal Frequency Compensation
- Short-Circuit Protection
- Designed to Be Interchangeable With Motorola MC3303
Package Includes:
1 x MC3403 Quad Low-Power Operational Amplifier IC DIP-14 Package
Technical Specifications
| CMRR (dB) | 70 |
|---|---|
| Height (mm) | 6 |
| Input Bias Current (Ib) | -0.2 |
| Input offset current (nA) | 30 |
| Input Offset Voltage (Vos) | 2 |
| Length (mm) | 20 |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Total supply current(mA) | 2.8 |
| Unity-gain bandwidth(Mhz) | 1 |
| Weight (g) | 3 |
| Width (mm) | 5 |
