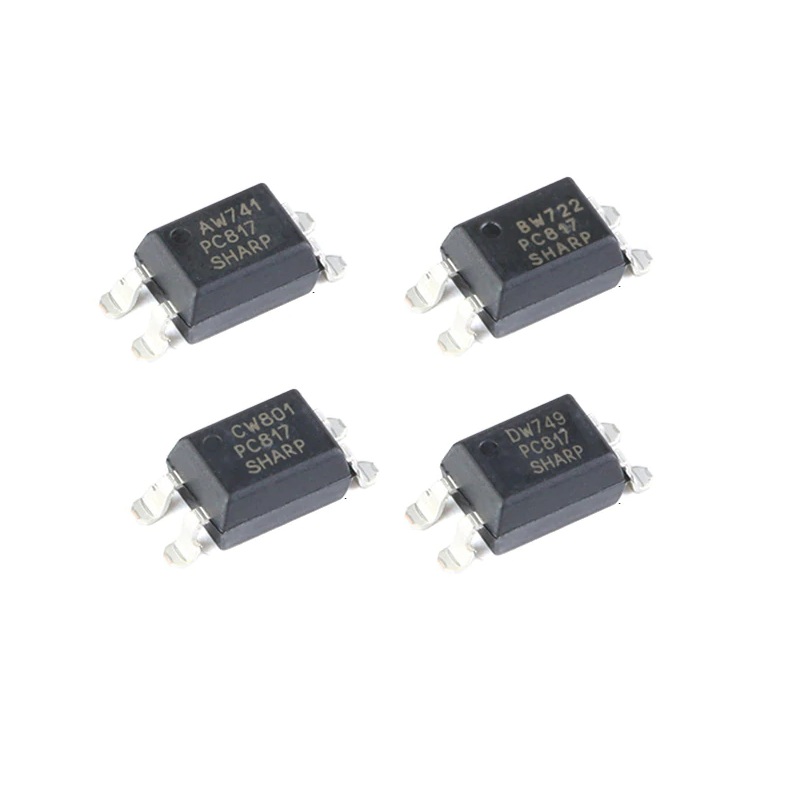

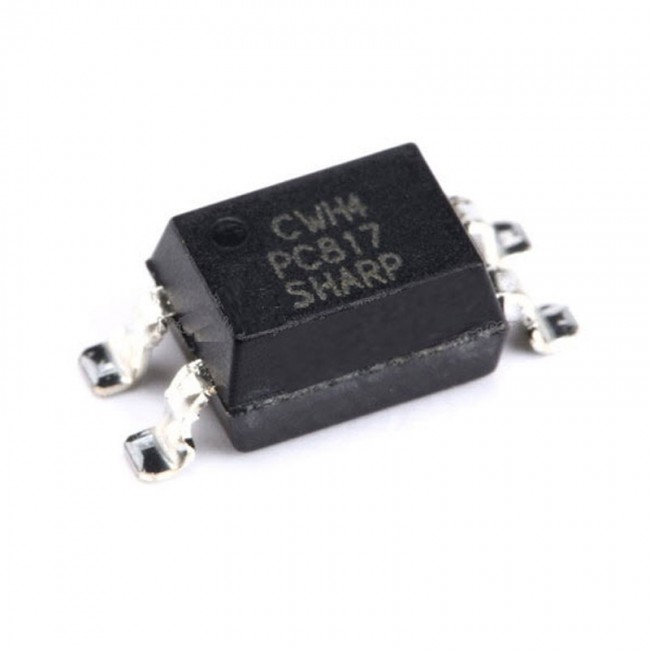

PC817 SMD Transistor Output Optocoupler
- SMD Packaging.
- 10 to 20mA Collector current.
- 50mA Forward current.
- 6V Reverse voltage.
- 200mW Total power dissipation.
- Applications: Communications & Networking, Industrial.
SKU: Not Found
Brand: Generic
Out of stock
₹6.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The PC817 SMD Transistor Output Optocoupler is a 1-channel 4-pin Transistor Output Photocoupler contains an IRED optically coupled to a phototransistor. It is suitable for programmable controllers and facsimiles.
For similar IC, click the link below.
Features:
- 10 to 20mA Collector current.
- 50mA Forward current.
- 6V Reverse voltage.
- 200mW Total power dissipation.
- Applications: Communications & Networking, Industrial.
Package Includes:
1 x PC817 SMD Transistor Output Optocoupler
Technical Specifications
| Additional Specs. | Collector Emitter Voltage: 80 V |
|---|---|
| Dimensions (L x W x H) mm | 11 x 4 x 3 |
| Fall Time | 3μs |
| Forward Current | 20 mA |
| Isolation Voltage | 5000 Vrms |
| Maximum Collector Current | 50 mA |
| Mounting Type | SMD |
| No. of Outputs | 1 |
| Operating Temperature (°C) | -30 to 100 |
| Power Dissipation (mW) | 200 |
| Reverse Voltage | 6 V |
| Rise Time | 4μs |
| Saturation Voltage | 0.2 V, Maximum Collector Emitter Side |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Vf - Forward Voltage | 1.2 V |
