Amplifier & Comparator IC

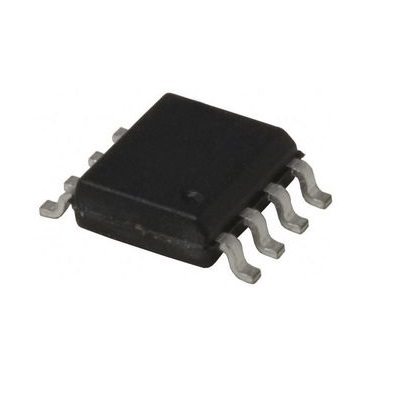

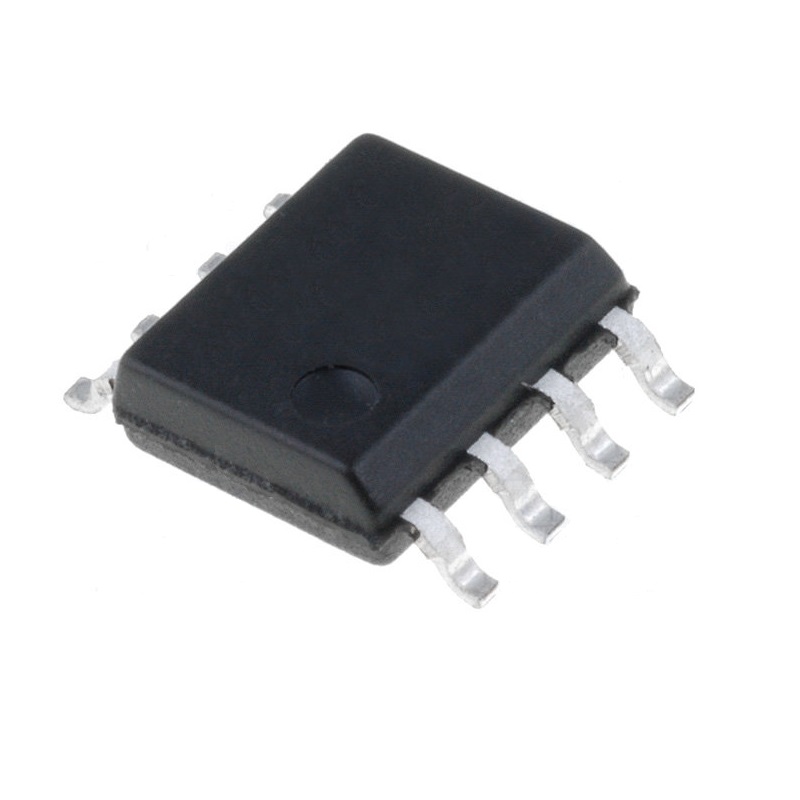

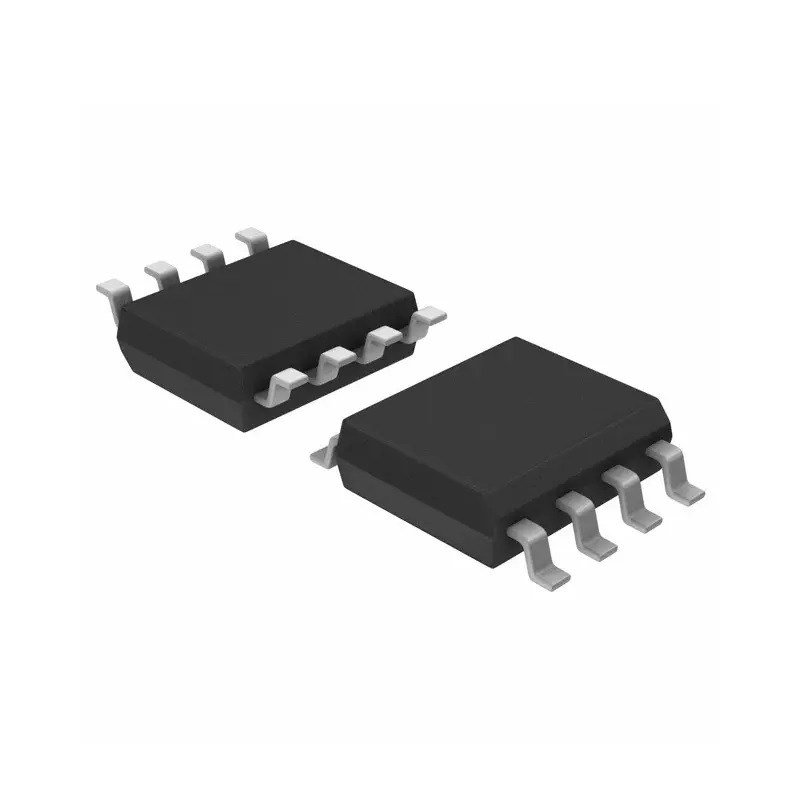

LM358DR SOIC-8 High Gain Operational Amplifier.
- Single supply voltage from 3V to 32V and dual supply range from ±1.5V to ±16V
- Slew rate at unity gain is 0.3 V/µs
- Wide unity gain bandwidth of 0.7MHz
- Low drain supply current is 0.7mA independent of supply voltage
- Input offset voltage of 3mV
- Input offset current of 2nA
- Input bias current of -20nA
- Differential input voltage range equal to the maximum rated supply voltage of 32V
SKU: Not Found
Brand: Generic
Out of stock
₹9.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Note: This Product is available in two different variants of IC (LM358DR and OPA1612) with the same working we will ship it randomly.
Note : The color of IC may be different
The LM358DR is a dual operational amplifier in an 8 pin SOIC package. It consists of two independent, high gain frequency compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.
Features:
- Single supply voltage from 3V to 32V and dual supply range from ±1.5V to ±16V
- Slew rate at unity gain is 0.3 V/µs
- Wide unity gain bandwidth of 0.7MHz
- Low drain supply current is 0.7mA independent of supply voltage
- Input offset voltage of 3mV
- Input offset current of 2nA
- Input bias current of -20nA
- Differential input voltage range equal to the maximum rated supply voltage of 32V
- Common mode rejection ratio (CMRR) of 80dB
- Operating temperature range from 0°C to 70°C
- Applications: Signal Processing, Sensing & Instrumentation, Consumer Electronics, Portable Devices, Motor Drive & Control
Note: Supply voltages larger than 32V for single supply and outside the range of ±16V for dual supply can permanently damage the device.
Warning: This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.
Package Includes:
1 x LM358DR SOIC-8 High Gain Operational Amplifier
Technical Specifications
| Amplifier Type | High Gain Amplifier |
|---|---|
| Case/Package | SOIC-8 |
| CMRR (dB) | 65 ~ 80 |
| Dimensions (L x W x H) mm | 4.9 x 3.91 x 1.58 |
| Gain Bandwidth Product (GBP) | 700kHz |
| Input Bias Current (Ib) | 150 nA |
| Input Offset Voltage (Vos) | 7 mV |
| Max Dual Supply Voltage | ±16 V |
| Max. Operating Current (mA) | 0.35 |
| Max. Supply Voltage (V) | 32 |
| Min Dual Supply Voltage (V) | ± 1.5 |
| Min Supply Voltage | 3 |
| Mounting Type | SMD/SMT |
| No. of Channels | 2 |
| Operating Temperature (°C) | 0 to 70 |
| Output Current Per Channel | 30 mA |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Slew Rate (SR) | 0.3 V/us |
| Technology | Bipolar |
| Voltage Gain (dB) | 100 |
