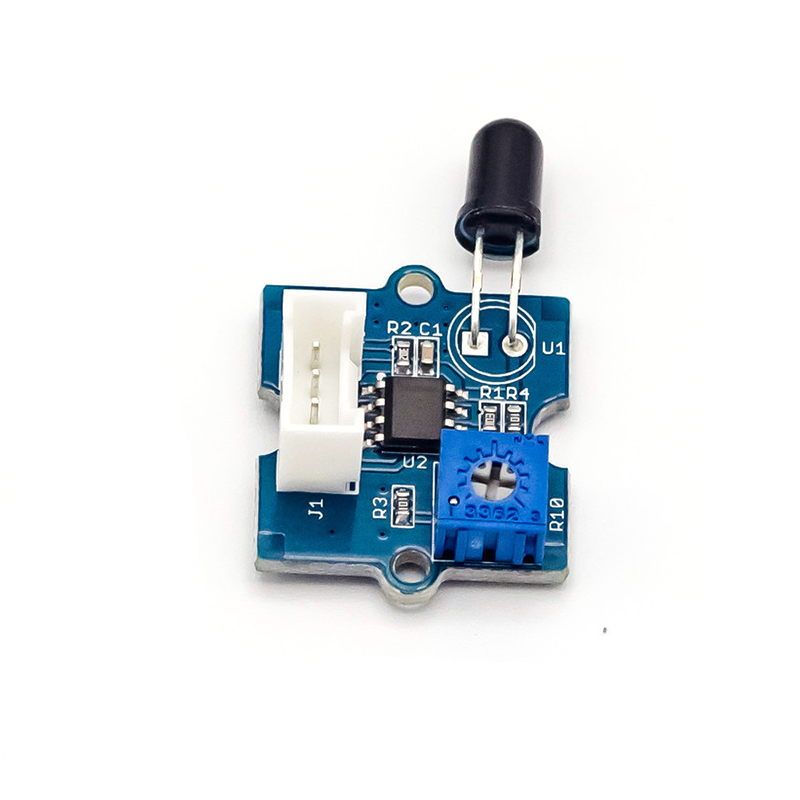

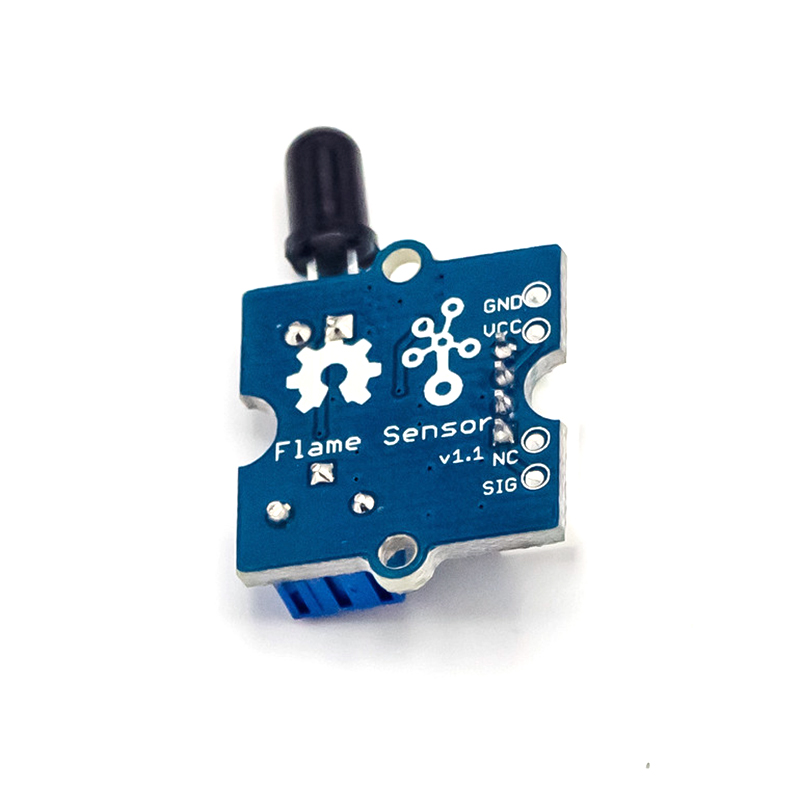

Seeed Studio Grove Flame Sensor
- Operating voltage (DC): 4.75 V to 5.30 V, typical 5 V
- Spectral bandwidth : 760 nm to 1100 nm, typical 940 nm
- Current: 20 mA
- Detection range: 0 – 1 m
- High photo sensitivity
- Fast response time
- Adjustable sensitivity
SKU: Not Found
Brand: Seeed Studio
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Need a device for detecting fire? We have brought the Grove – Flame Sensor v1.1 especially for you. It can be used to detect the fire source as well as other light sources of wavelength range 760 nm to 11oo nm. This sensor is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, this sensor is sensitive to infrared radiation.
The Grove – Flame Sensor sensor plays an important role in the robot fighting game. It can also be used as a robot eye to find the fire source. You can use this sensor for various light sensing purposes.
For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. So, why wait? Buy now!
Features:
- High photo-sensitivity
- Fast response time
- Adjustable sensitivity
- Grove compatible interface
- Easy to use
Useful Links:
Package Includes:
1 x Seeed Studio Grove Flame Sensor
Technical Specifications
| Detecting Range | 0 to 1 meter |
|---|---|
| Height (mm) | 12 |
| Length (mm) | 130 |
| Model | Flame Sensor |
| Mounting Hole Diameter (mm) | 2 |
| Operating Current (A) | 0.02 |
| Operating Temperature (°C) | -25 to +85 |
| Operating Voltage (VDC) | 4.75 to 5.30 |
| Shipping Dimensions | 6.9 × 4.4 × 1.2 cm |
| Shipping Weight | 0.005 kg |
| Spectral Bandwidth | 760 nm to 1100 nm (typical 940 nm) |
| Weight (g) | 4 |
| Width (mm) | 80 |
