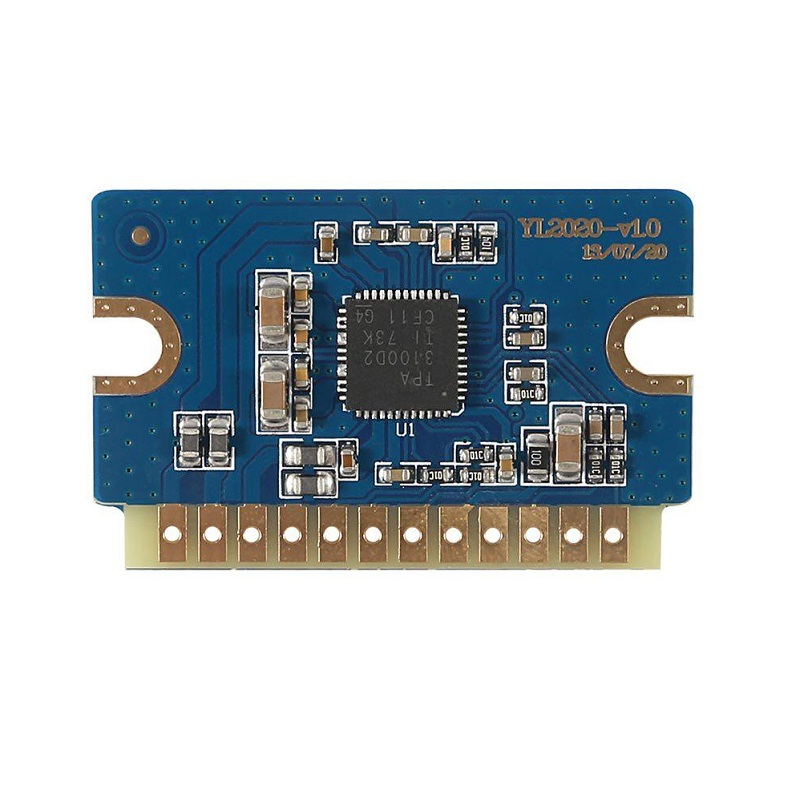

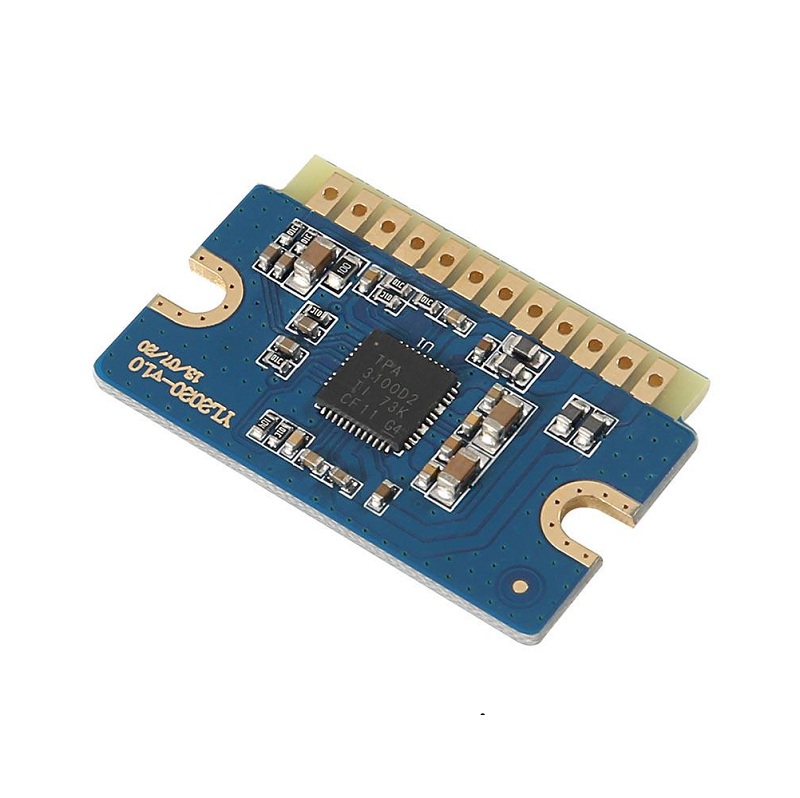

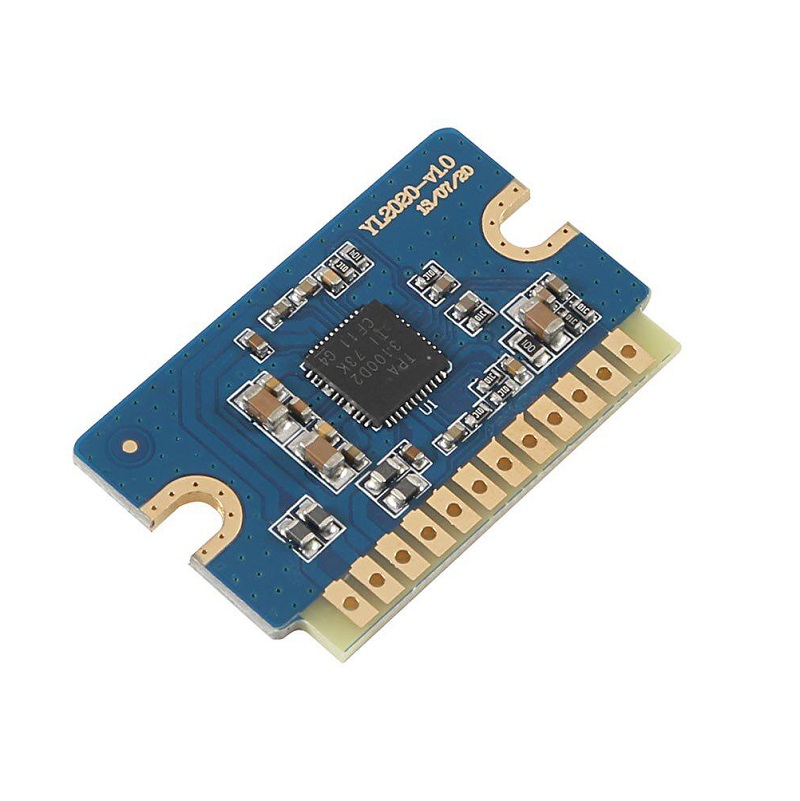

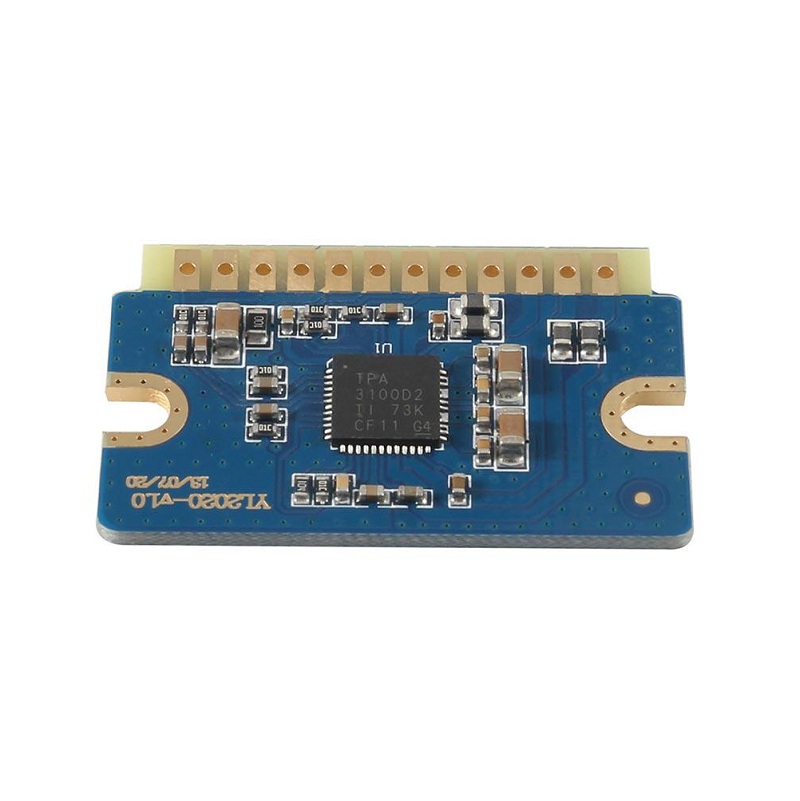

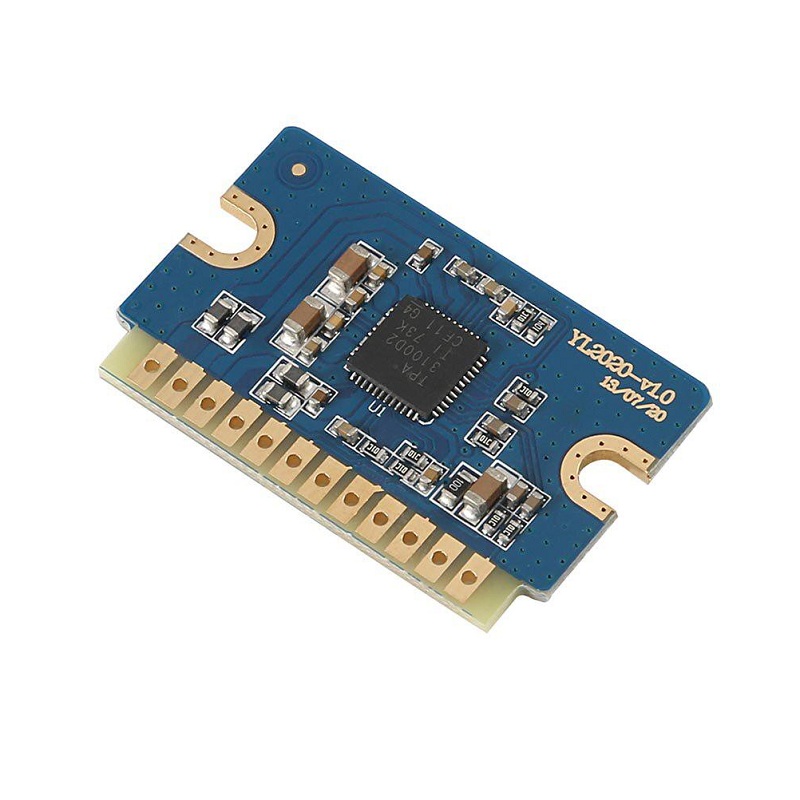

YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module
- Sam class D digital amplifier module
- Two-channel stereo.
- Power supply voltage 8v- 24v
- The maximum dynamic current:4 A
- Static current < 40mA
- Input signal:500 mV
- IMpedance 4-8 Europe
- Rated Power 20W*2

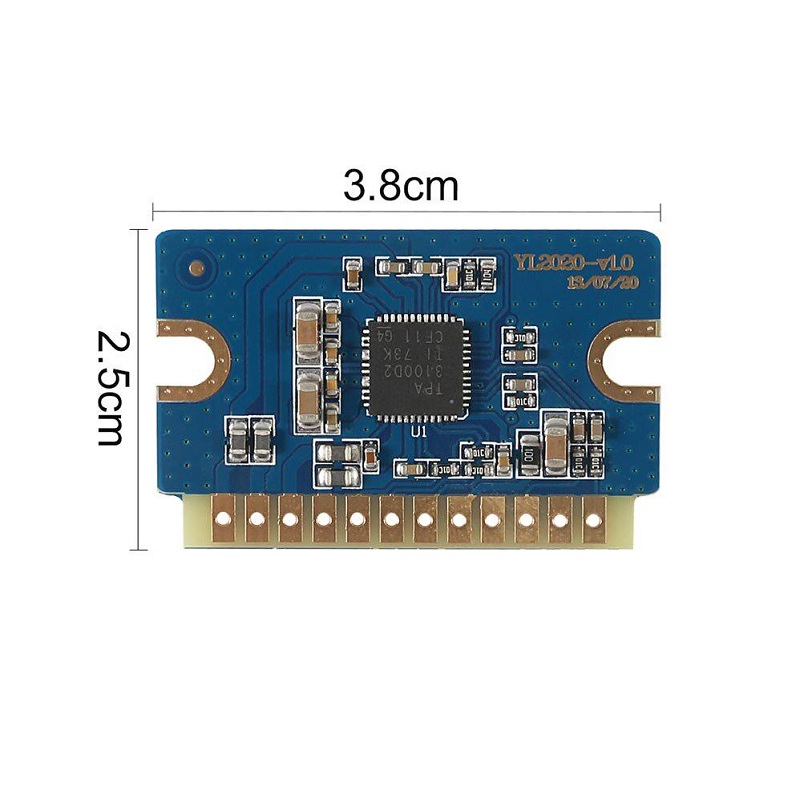

- PCB Size 38*20*2.8MM PIN Width :2.54MMX12, Length 40MM
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module is simple and mini size class D power amplifier but it has a remarkable audio power output via its dual stereo channel of 20W per channel.
Note : HW-004 on board working remains same.

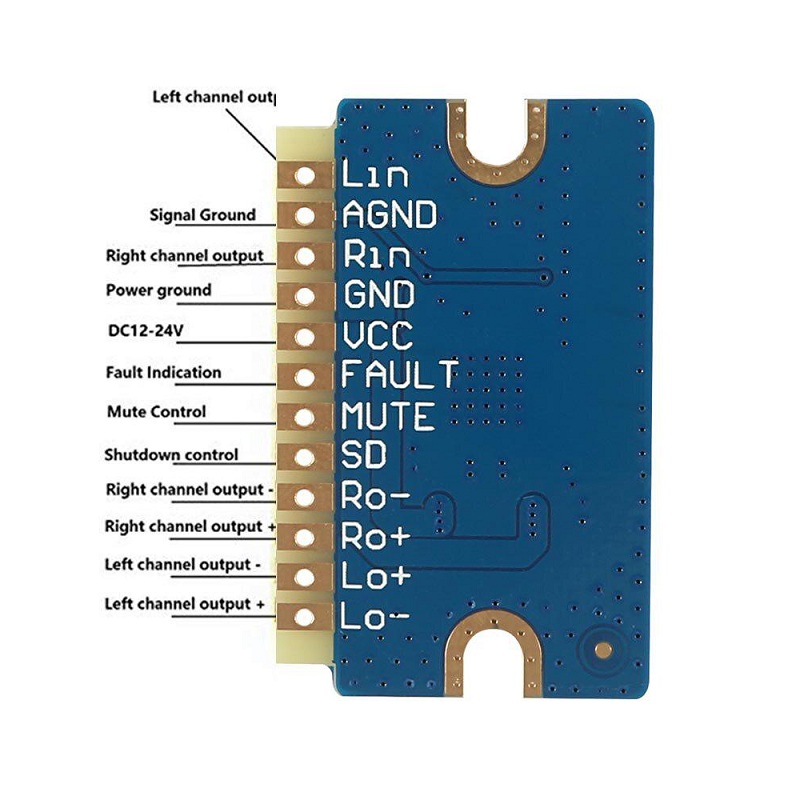

Schematic and Pin Description:
As you can see in the schematic it is a small PCB, easy to install, with marked terminals and convenient for soldering. You just need to solder everything where it belongs.
If you do not use MUTE, connect FAULT and MUTE together – it will mute the amplifier in case of errors.
To enable MUTE, it must be connected to the positive supply voltage VCC (Smaller enough, but it is the easiest way).
The SD input is! SHUTDOWN, no need to plugin, and don’t use it as a mute either, as using it will make your speakers pound.
Package Includes:
1 x YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module
Technical Specifications
| Amplifier Type | Sam class D digital |
|---|---|
| Height (mm) | 3 |
| Length (mm) | 40 |
| Model No | YL2020 |
| No. of Channels | 2 |
| Operating Voltage (VDC) | 8 to 24 |
| Output Power (W) | 40 |
| Shipping Dimensions | 4 × 3 × 1 cm |
| Shipping Weight | 0.005 kg |
| Signal Input | 500 mV |
| Static Current | < 40mA |
| Weight (g) | 4 |
| Width (mm) | 25 |
