Flame Sensor

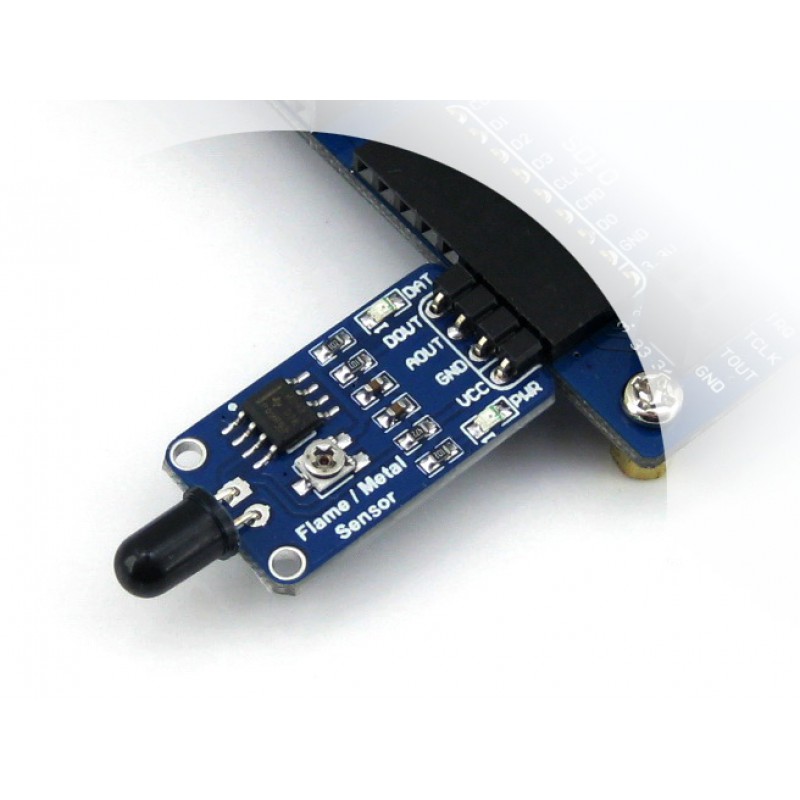

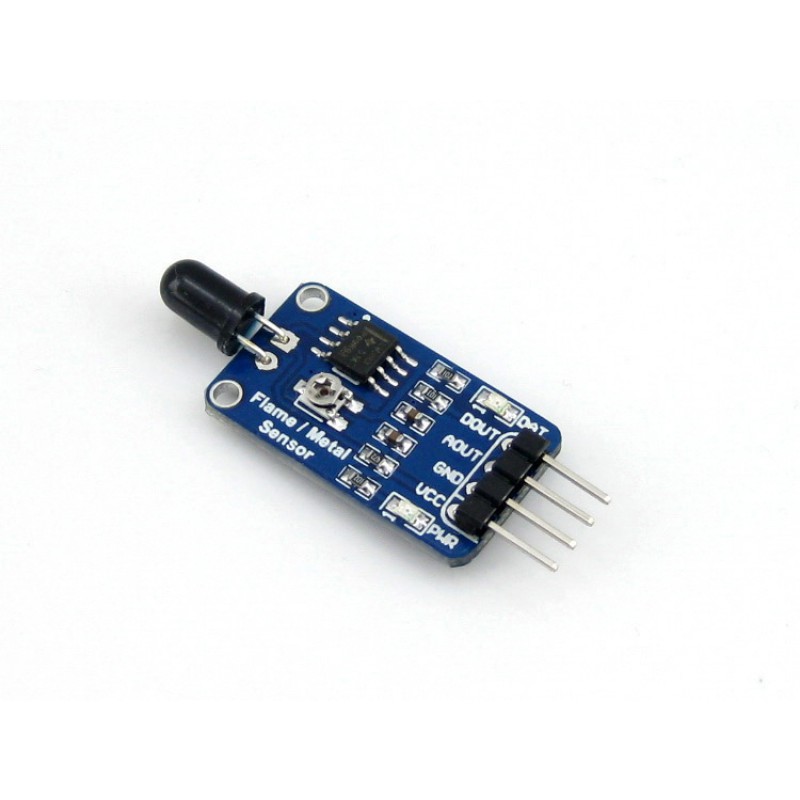

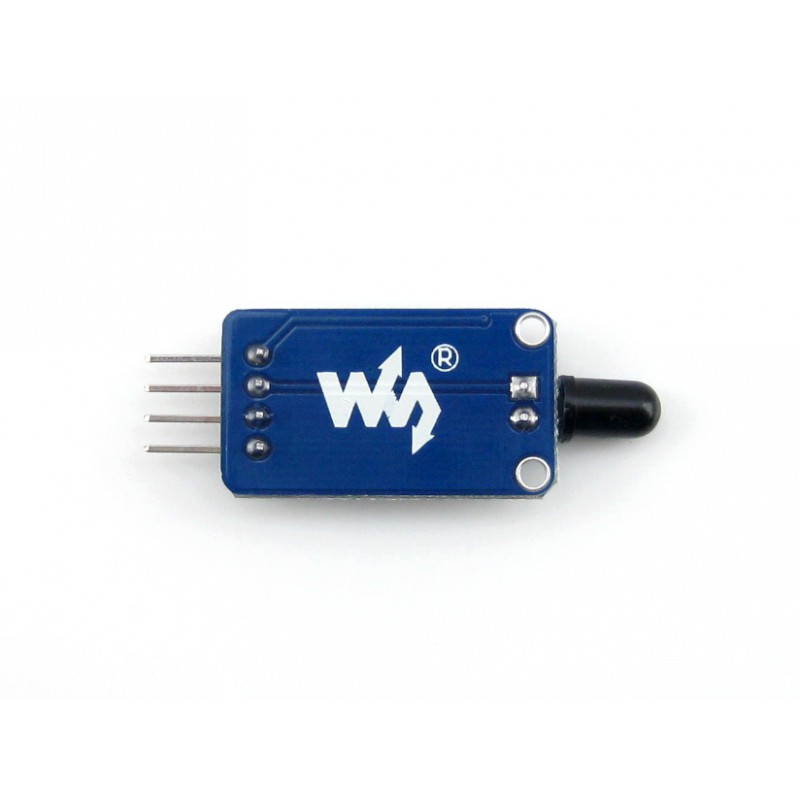

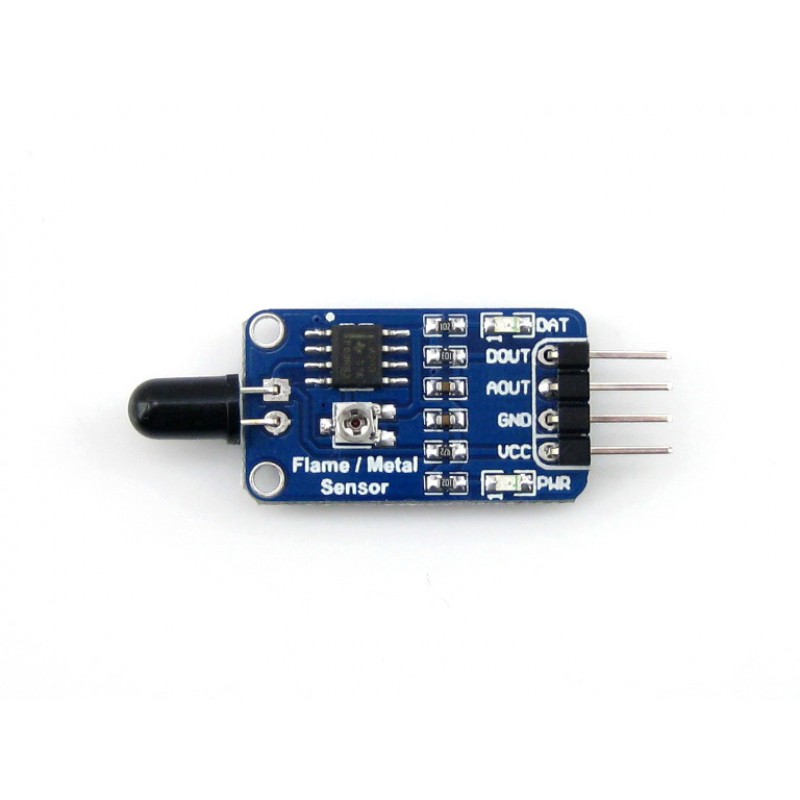

Waveshare Flame Sensor
- Spectrum range: 760nm ~ 1100nm
- Detection angle: 0 – 60 degree
- Power: 3.3V ~ 5.3V
- Operating temperature: -25℃ ~ 85℃
- Dimension: 27.3mm * 15.4mm
- Mounting holes size: 2.0mm
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹261.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Flame Sensor is used for detecting fire without any fire protection for itself, please keep a distance from the fire to avoid damage. Sensitive to flame spectrum Features wide-range voltage comparator LM393 Adjustable sensitivity Signal output indicator
Application:
- Fire detection
- Fire fighting robot
- Fire alarm
Features:
- Sensitive to flame spectrum
- Features wide-range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Useful link:
To do Hardware and Software setup, please follow this tutorial.
Package Includes:
1 x Waveshare Flame Sensor
Technical Specifications
| Communication Protocol | Without |
|---|---|
| Height (mm) | 0.5 |
| Interface | Analog, Digital |
| Length (mm) | 6 |
| Model | Flame Sensor |
| Operating Voltage (VDC) | 3.3 to 5 |
| Shipping Dimensions | 7 × 7 × 1 cm |
| Shipping Weight | 0.005 kg |
| Weight (g) | 5g |
| Width (mm) | 6 |
