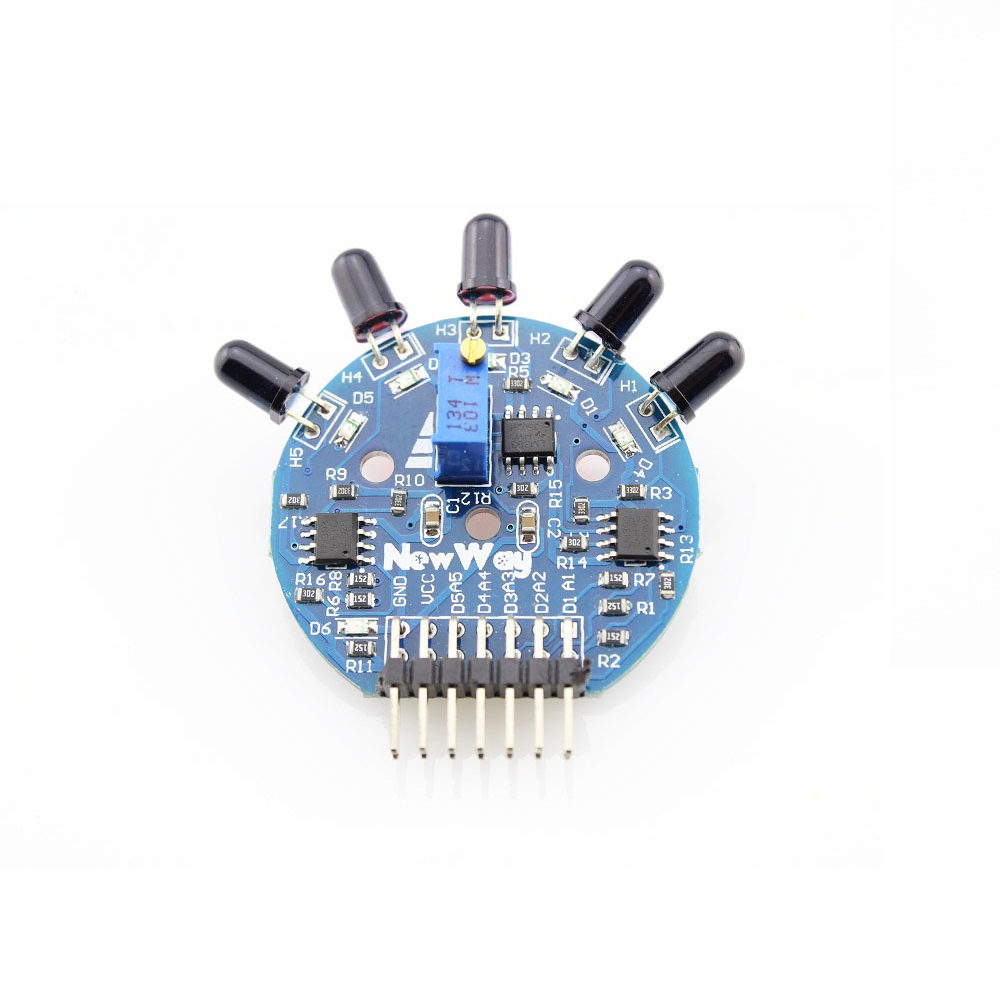

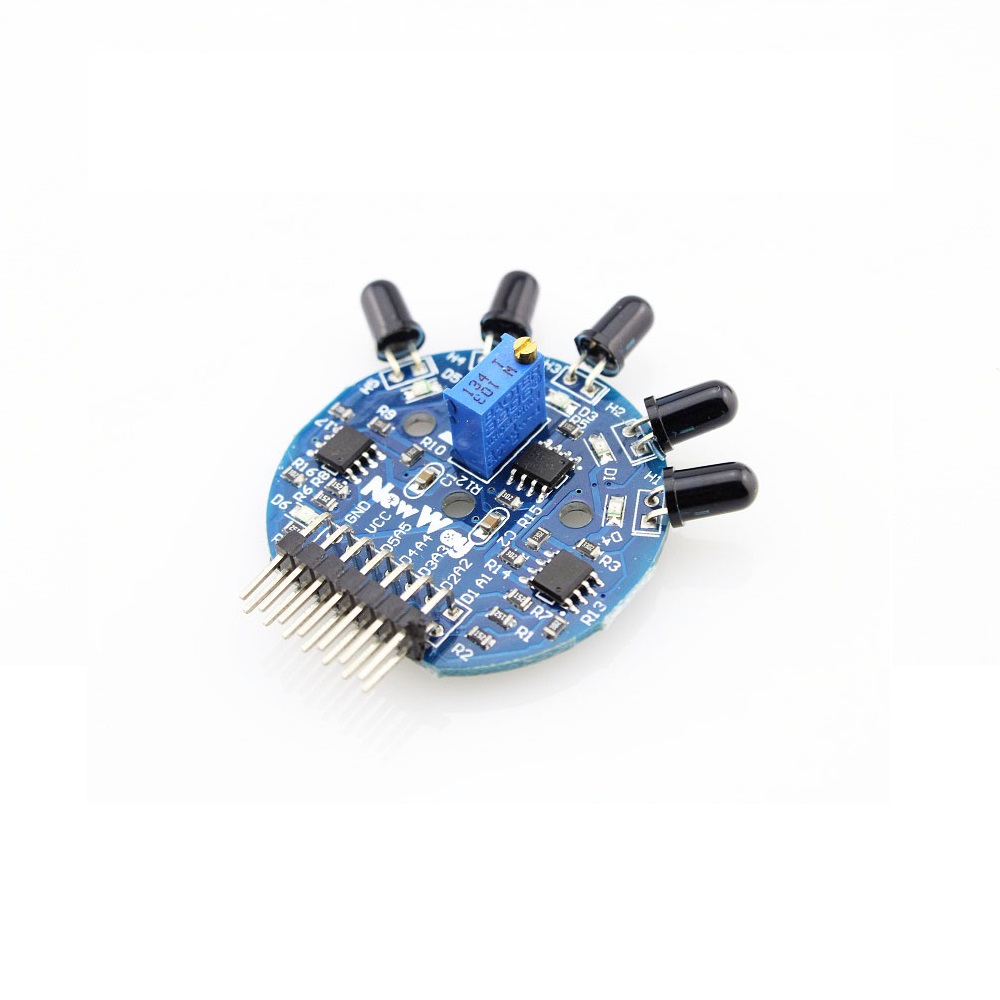

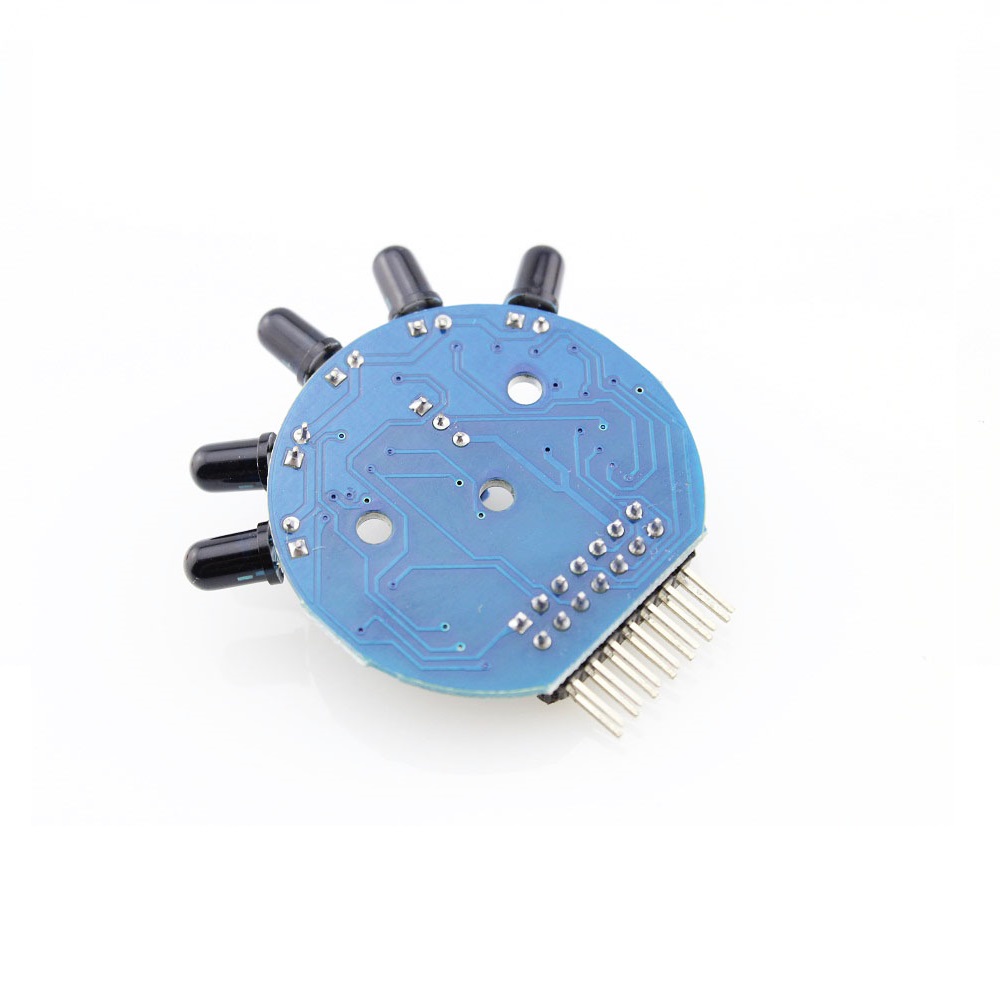

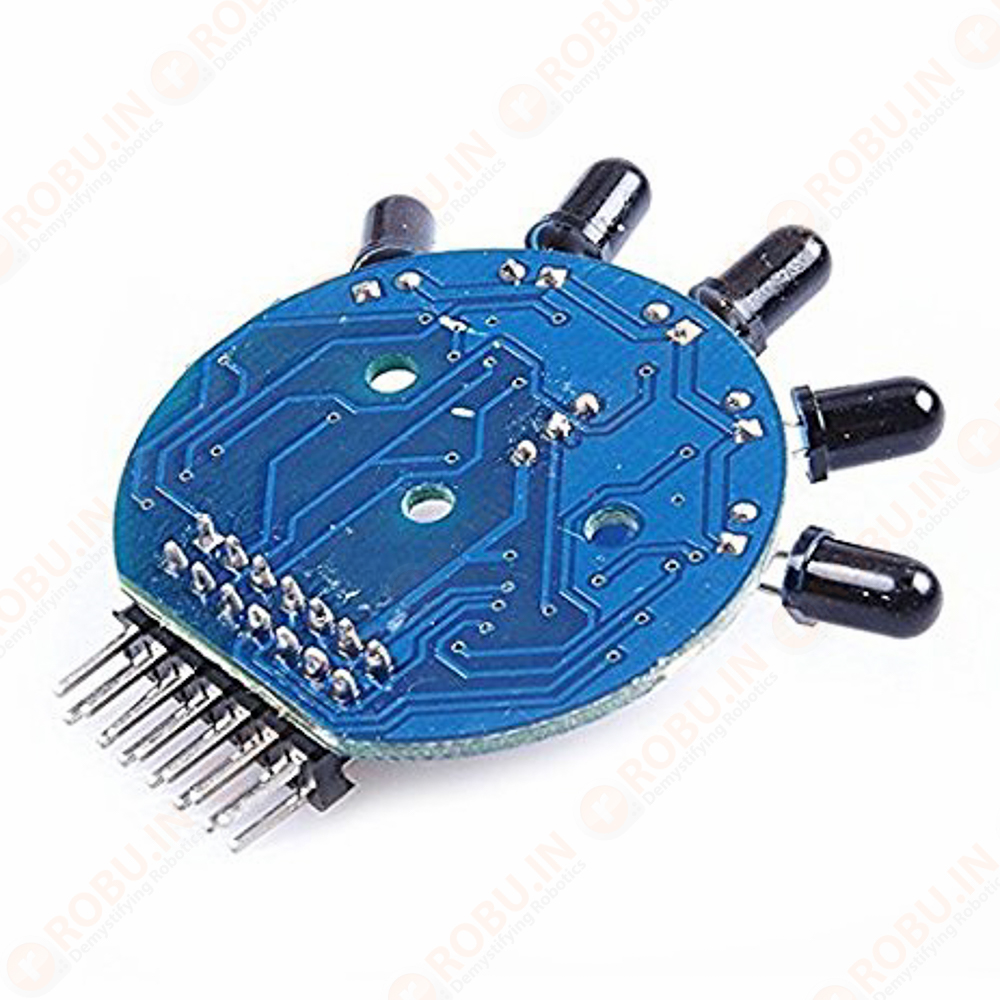

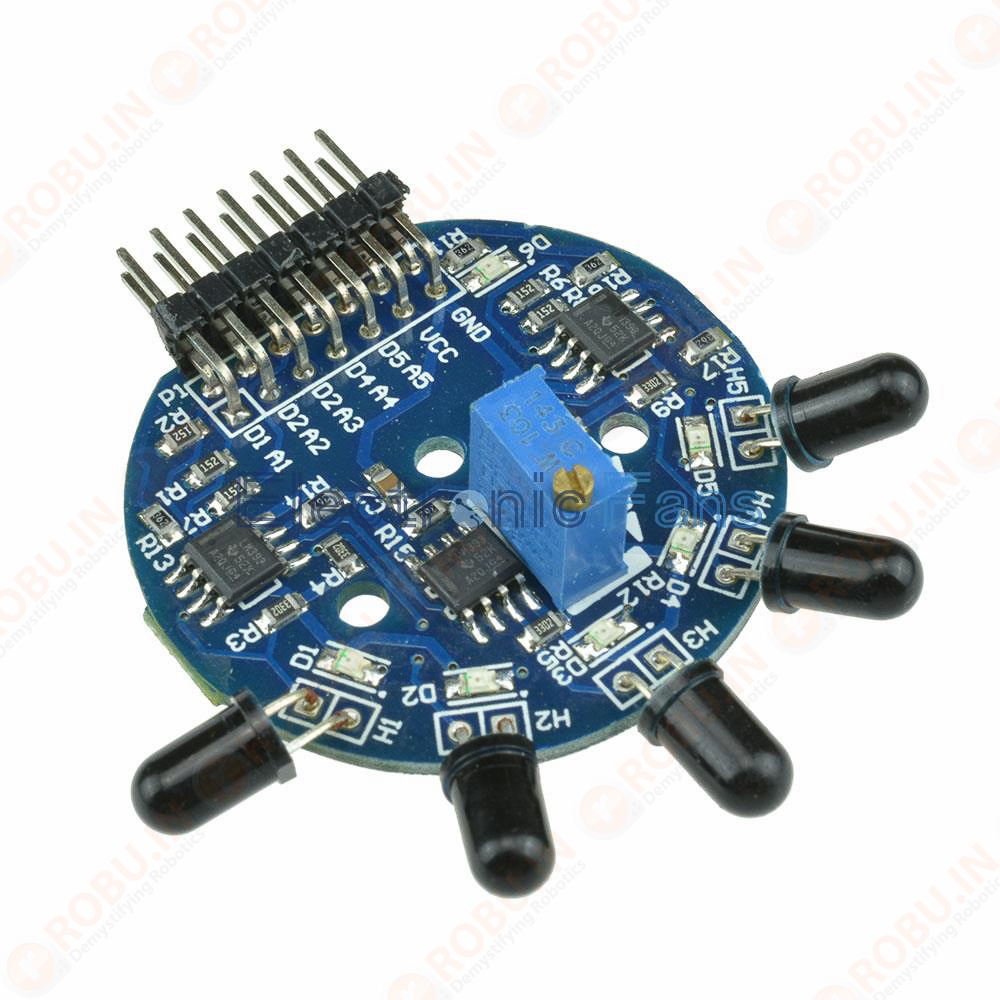

5-Channel Flame Sensor Module is a 5 channel flame detector module used to detect flame in the larger area( >120 degrees).

If you need a robot which should detect any fire around, then this module will be very useful for you. It detects the fire with 5 flame sensors which are arranged with 30 degrees.

This module outputs an analog signal, which would be more precise, and also digital signal which would be more easy to use, you can adjust the digital output sensitivity by the onboard potentiometer. The 5 LED indicators are helpful in your debugging, the high-precision resistors also make this sensor more precise than other flame sensors.

This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of a wavelength 760nm-1100 nm. lighter flame test distance of 80cm, for the greater the flame, the farther the distance test.

Features :

1. Analog and digital outputs
2. On-board potentiometer and indicators
3. 1% resistors to make this module more reliable and precise
4. Can output the analog signal can be accurately measured, for high precision applications
5. Adjustable detection range digital output, analog output sensitivity adjustable design flexibility

Package Includes :

1 x 5-Channel Flame Sensor Module.
