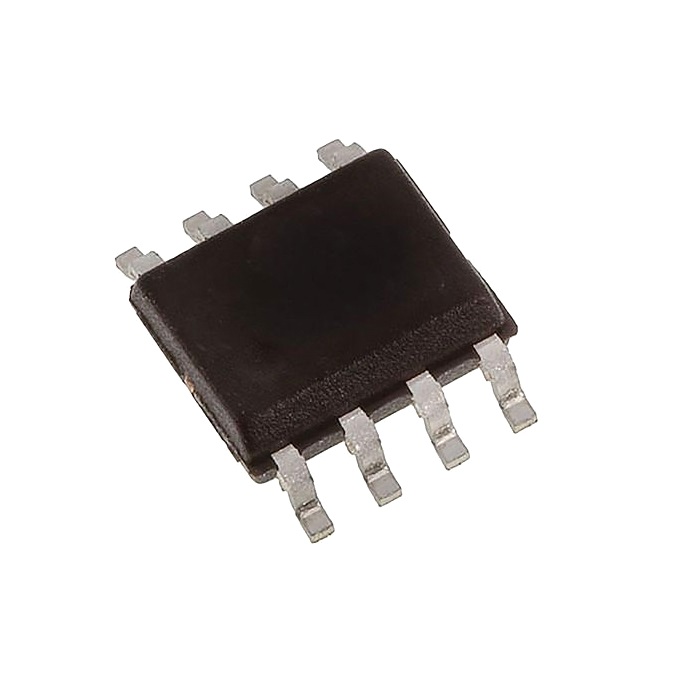

AMC1301DWVR-TEXAS INSTRUMENTS-SOIC-8-300mil Isolation Amplifiers ROHS.The AMC1301DWVR from Texas Instruments is a high-performance isolation amplifier designed for precise voltage sensing and current shunt monitoring in high-voltage systems. Packaged in a SOIC-8-300mil, it provides galvanic  isolation while ensuring accurate, low-noise signal transmission. Engineered for motor drives, renewable energy systems, industrial inverters, and power monitoring, the AMC1301 offers excellent common-mode transient immunity and wide input dynamic range. Its RoHS compliance ensures eco-friendly and reliable usage in long-term applications.

Note: Images for reference only.

Specifications:

Manufacturer: Texas Instruments
Package: SOIC-8-300mil
Operating Temperature: -40℃~+125℃
Output Type: Differential
Gain: 8.2
CMTI(kV/us): 15kV/us
Isolation Voltage(Vrms): 5000
Differential Input Voltage: ±250mV
Ib – Input Bias Current: 30uA
Vos – Input Offset Voltage: 50uV

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x AMC1301DWVR-TEXAS INSTRUMENTS-SOIC-8-300mil Isolation Amplifiers ROHS
