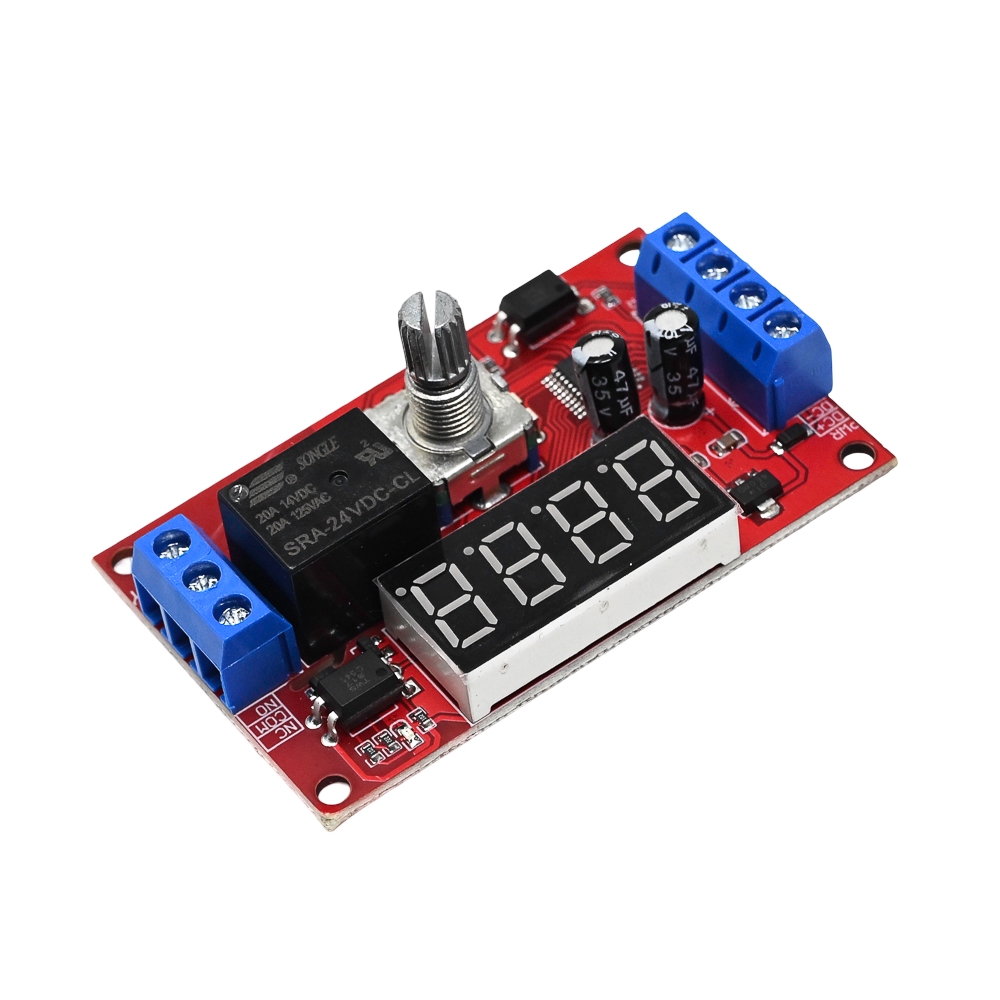

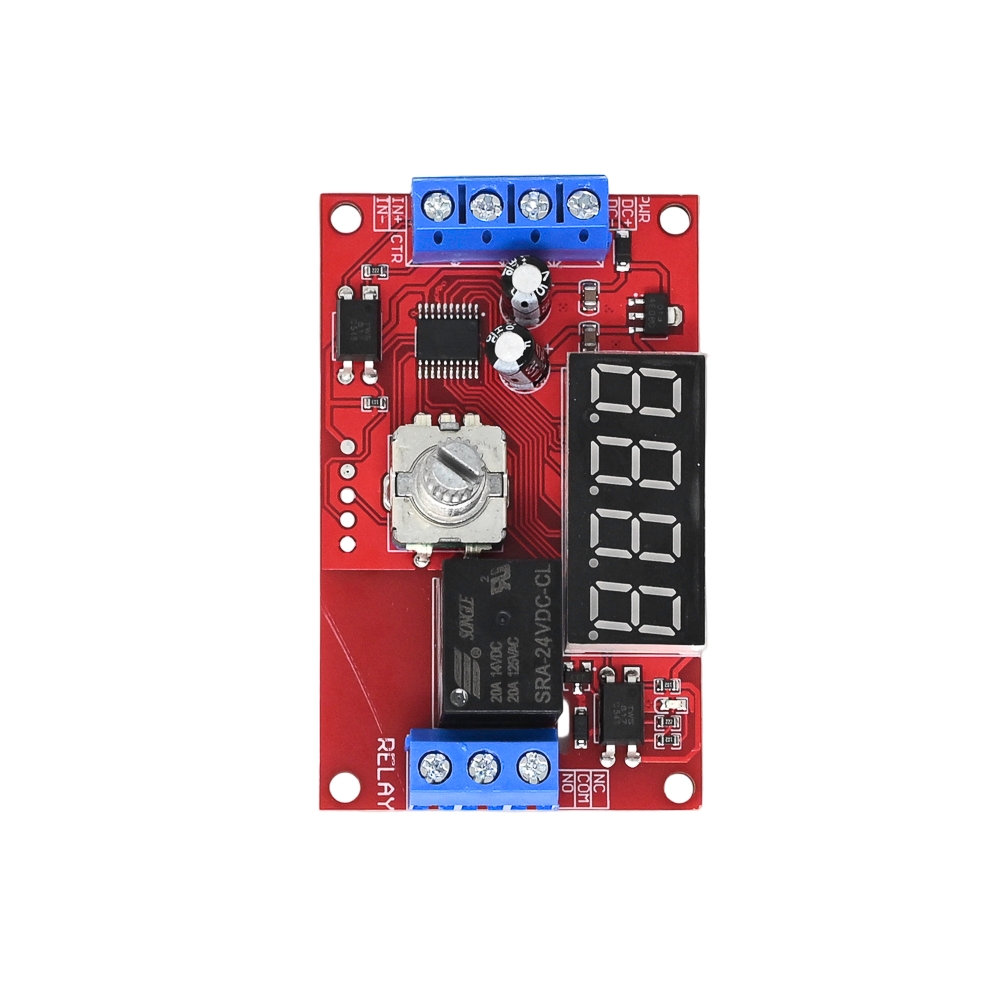

Knob Version 1 Channel 24V Adjustable Time Delay Relay Module 32 Modes LED Digital Timming Trigger Timer Control Switch
- Working Voltage: DC 24V
- Trigger Signal Voltage High: 24V, Low: 0V
- Time Range: 0.01s – 999 minutes
- Load Capacity: AC 250V/10A, DC 30V/10A
- Relay Type: One-way delay relay
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Knob Version 1 Channel 24V Adjustable Time Delay Relay Module is a reliable one-way delay relay designed for automation and electrical control applications. Powered by a 24V DC supply, it supports both switch signals and high or low-level trigger inputs. The module offers a wide adjustable timing range from 0.01 seconds up to 999 minutes, allowing accurate timing control for various devices. It can safely drive AC loads up to 250V/10A and DC loads up to 30V/10A. Built-in surge protection, lightning protection, and voltage backup protection ensure stable and long-lasting performance. Ideal for controlling motors, LEDs, lamps, water pumps, and solenoid valves in industrial and DIY projects.
Features:
- Dedicated 24V DC operating voltage
- Adjustable delay time from 0.01s to 999 minutes
- One-channel, one-way delay relay output
- Supports switch and high/low level trigger signals
- Handles AC and DC loads up to 10A
- Built-in surge and lightning protection
- Voltage backup protection for stability
- Suitable for automation and control systems

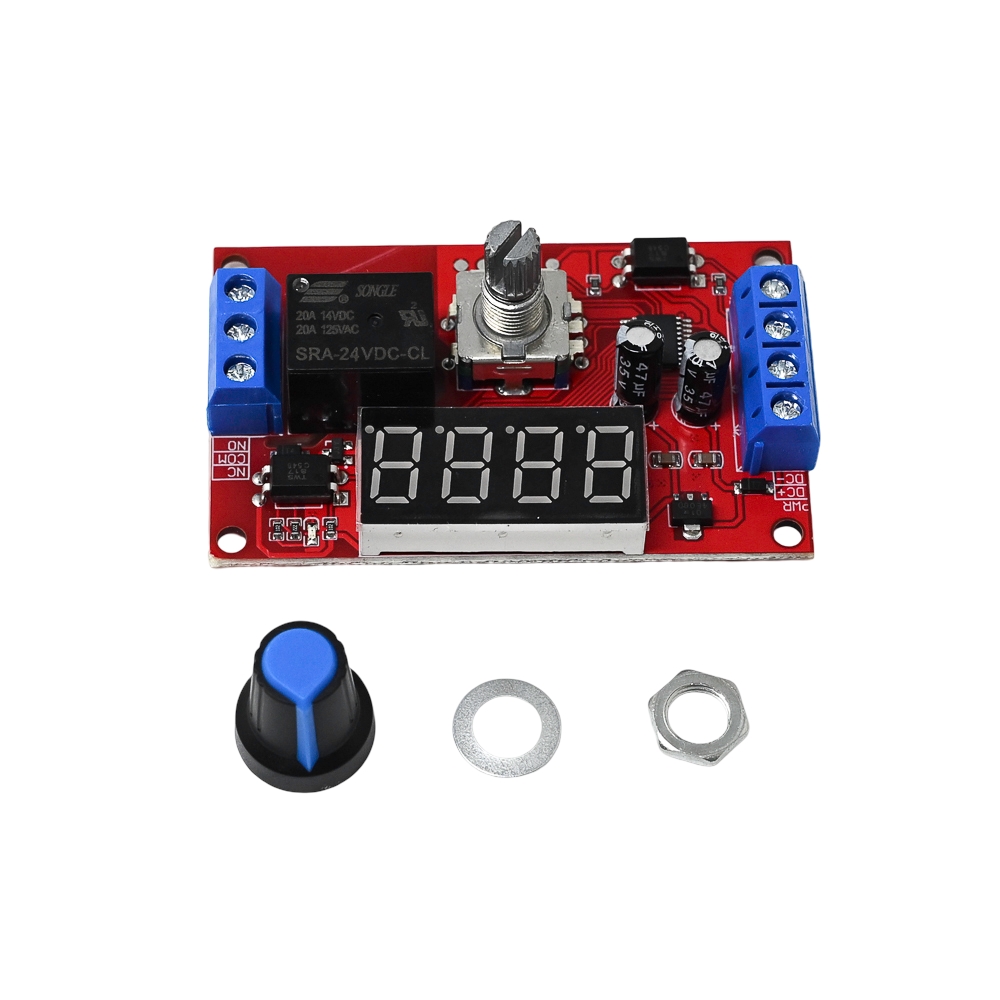

Package Includes:
1 x Knob Version 1 Channel 24V Adjustable Time Delay Relay Module 32 Modes LED Digital Timming Trigger Timer Control Switch
1 x Button
Technical Specifications
| Compatibility | Motor, LED, Lamp, Water Pump, Solenoid Valve |
|---|---|
| Control Method | Knob Adjustable Timing, Digital Timing Control |
| Height (mm) | 25 |
| Length (mm) | 65 |
| Max Capacity | AC 250V/10A, DC 30V/10A |
| Model | Knob Version 1 Channel 24V |
| No. of Channels | 01 |
| Operating Voltage (VDC) | 24 |
| Protection | Surge, Lightning, Voltage Backup |
| Shipping Dimensions | 12 × 10 × 4 cm |
| Shipping Weight | 0.03 kg |
| Signal Type | Switch, High/Low Level |
| Trigger Signal Type | Switch Signal, High / Low Level Signal |
| Weight (g) | 27 |
| Width (mm) | 40 |
