12V Relay Module with Automatic Delay Timer
- Operating Voltage: 12VDC
- Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A
- Working Current: 50mA
- Color: White
SKU: Not Found
Brand: Generic
Out of stock
₹571.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 14 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

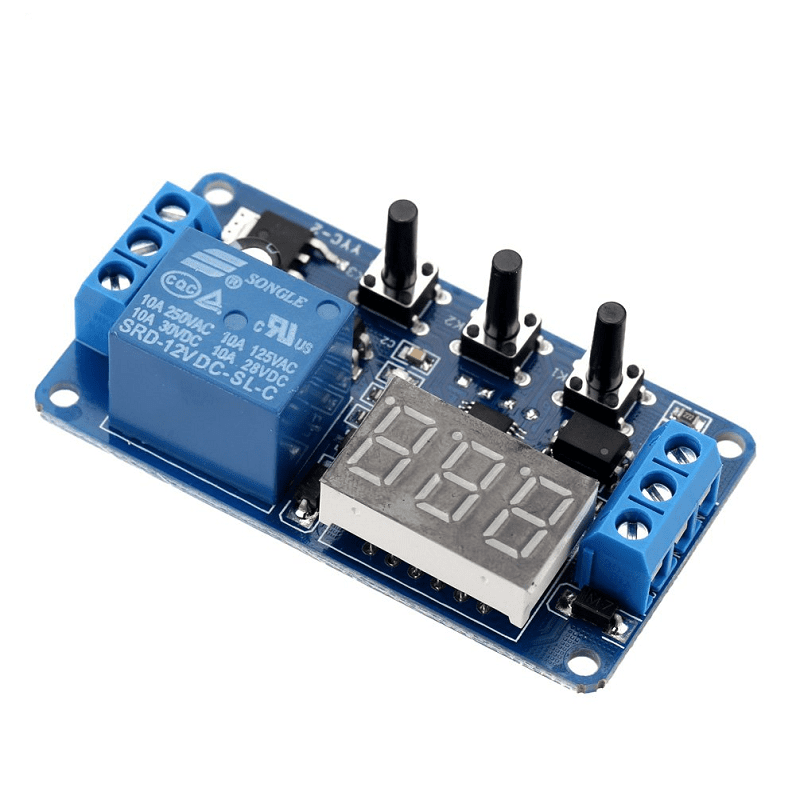

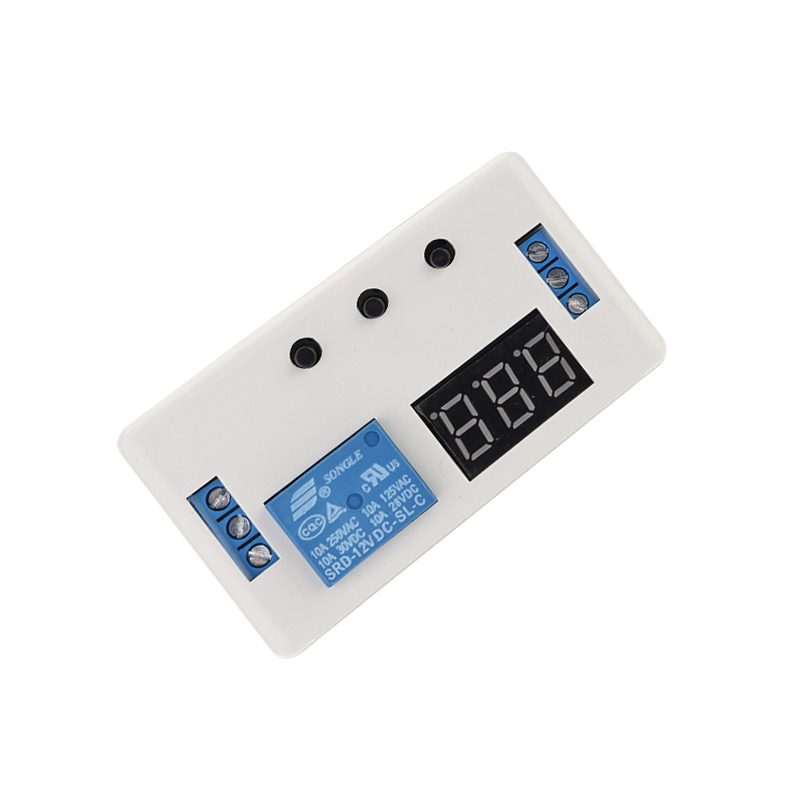

This is a 12V Relay Module with Automatic Delay Timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller.The module has three buttons one to control the function and others to set the delay time.

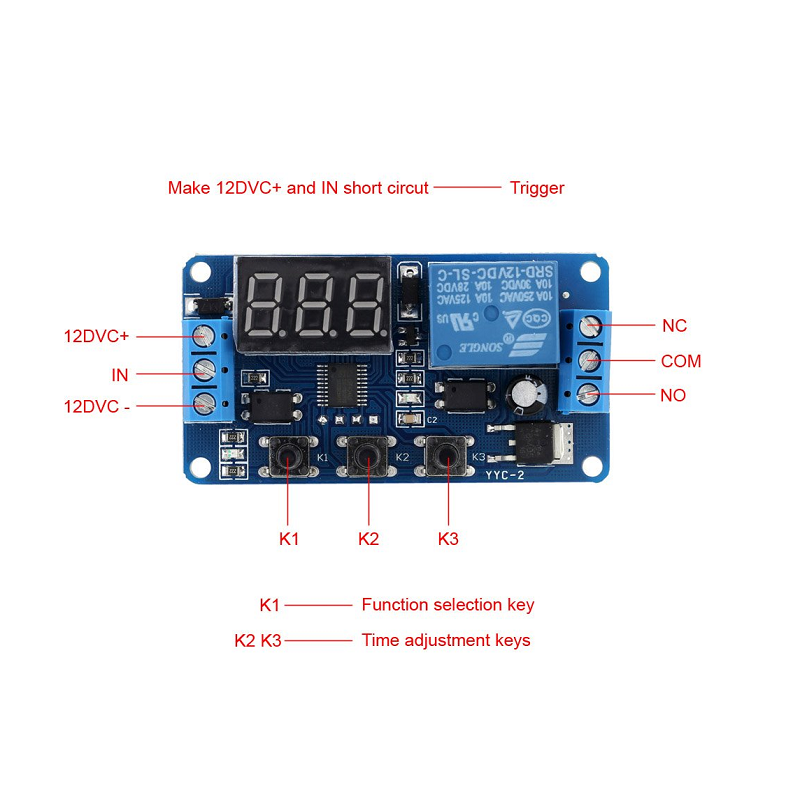

Connection Diagram:
1.12 V load
Features:
- Increase the power supply anti-reverse function.
- The use of optoisolated input and output enhanced anti-jamming capability and consumption.
- The last setting parameters can be memorized after power off.
- A signal terminal voltage signal can be maintained for a long time.
- To ensure stability, industrial grade PCB board.
Package Includes:
1 x 12V Relay Module with Automatic Delay Timer
Technical Specifications
| Height (mm) | 25 |
|---|---|
| Length (mm) | 68 |
| Model | Relay Module |
| Operating Temperature (°C) | -40 to 85 |
| Operating Voltage (VDC) | 12 |
| Output Capacity | Can Control the Load within DC 30V 5A or AC 220V 5A |
| Shipping Dimensions | 9 × 10 × 3 cm |
| Shipping Weight | 0.047 kg |
| Signal voltage | 4 – 20VDC |
| Static Current | 20mA |
| Weight (g) | 44 |
| Width (mm) | 40 |
| Working Current (mA) | 50mA |
