Audio Amplifier Module

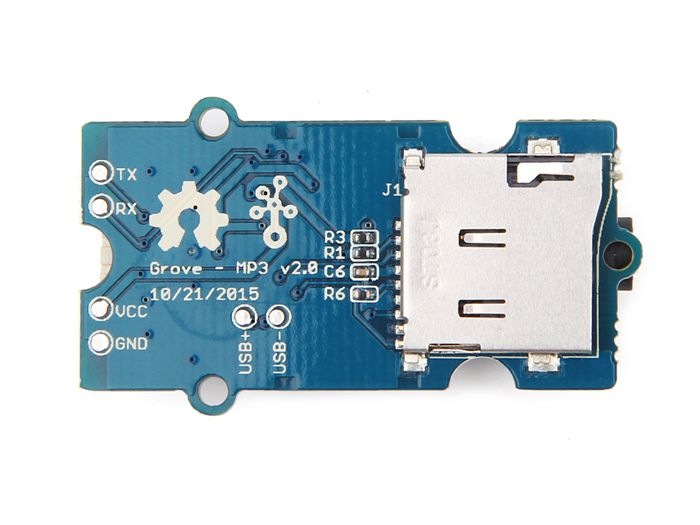

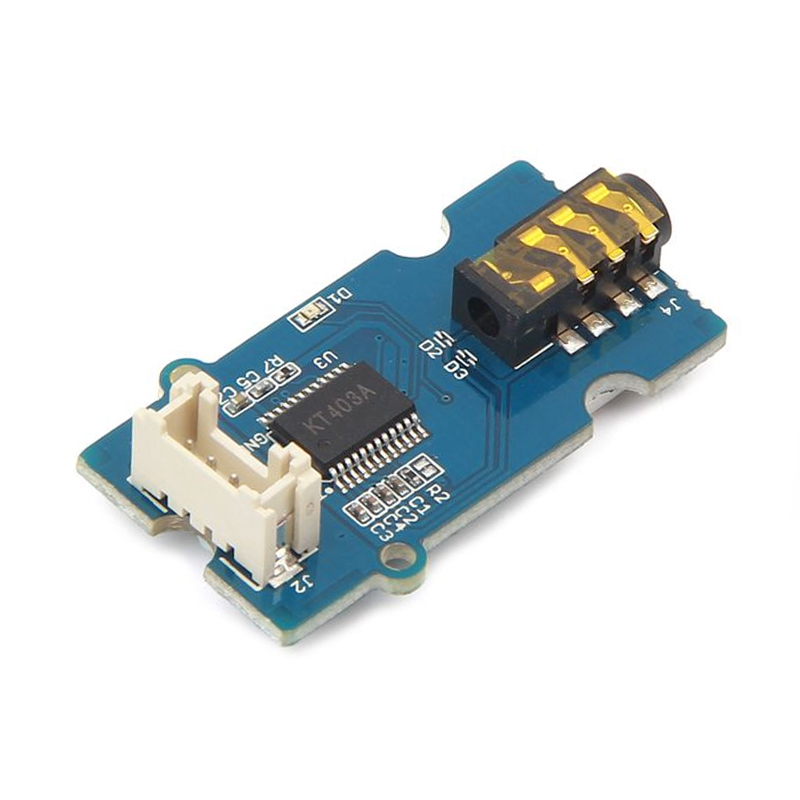

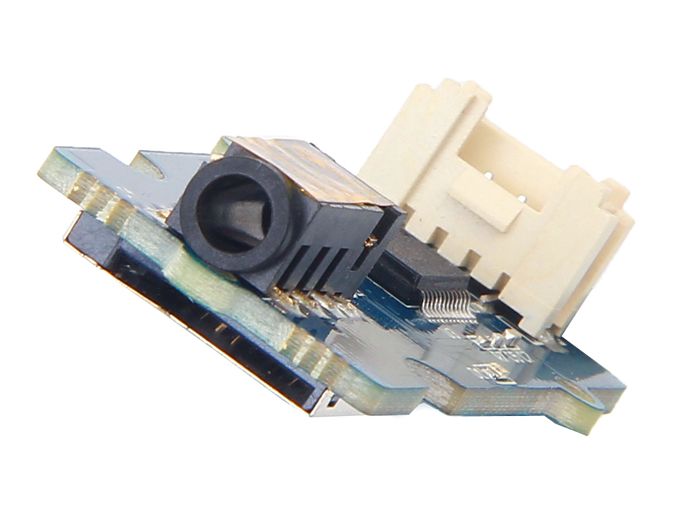

SeeedStudio Grove MP3 v2.0
- Input: 5V(DC)
- Operating current (without signal output state): less than 15 mA
- Operating current (with signal output state): less than 40 mA
- Chip: KT403A
- Chip LDO output voltage: 3.3 V
- Chip output current: 100 mA(at Max.)
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹1311.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 17 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Grove – MP3 v2.0 is a tiny-sized and compact audio module. It supports various audio file operations for an audio file of MP3, WAV and WMV format, such as random music playing, play music in specific files, and so on. With serial communication, you can use all predefined command or command combinations to do all operations on music files. This module also supports general file systems such as FAT16 and FAT32. It gets a Grove UART interface, a 3.5 mm audio jack and a micro-SD slot. With this module, you can add some noise to your silent applications.
Getting started with SeeedStudio Grove MP3 v2.0
Features:
- General operations on audio files
- On-board micro-SD slot and 3.5mm audio jack
- Support sample rate of 8/11.025/12/16/22.05/24/32/44.1/48(kHz)
- 24-bit DAC output, 90 dB(at Max.) dynamic output range, the signal-noise ratio at 85 dB
- MP3, WMW and WAV audio formats and FAT16, FAT32 files system supported
- Embed 10 levels of equalization in total

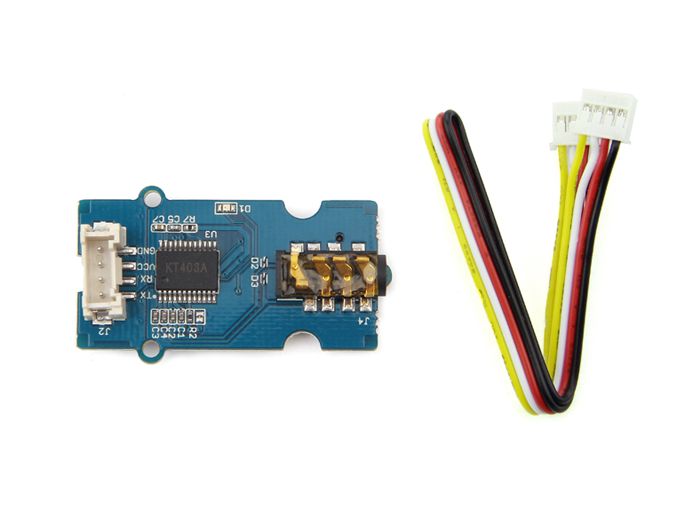

Package Includes :
1 x SeeedStudio Grove MP3 v2.0
1 x JST cable
Technical Specifications
| Chip | KT403A |
|---|---|
| Operating Current (mA) | less than 40 mA (with signal output state) |
| Operating Voltage (VDC) | 5 |
| Output Current (mA) | 100 mA(at Max.) Chip |
| Output Voltage (V) | 3.3 V Chip LDO |
| Sample Rate | 8/11.025/12/16/22.05/24/32/44.1/48 (kHz) |
| SD Card Support | 32 GB |
| Shipping Dimensions | 13 × 9 × 1 cm |
| Shipping Weight | 0.01 kg |
| Supported | File formate MP3, WAV, WMA |
