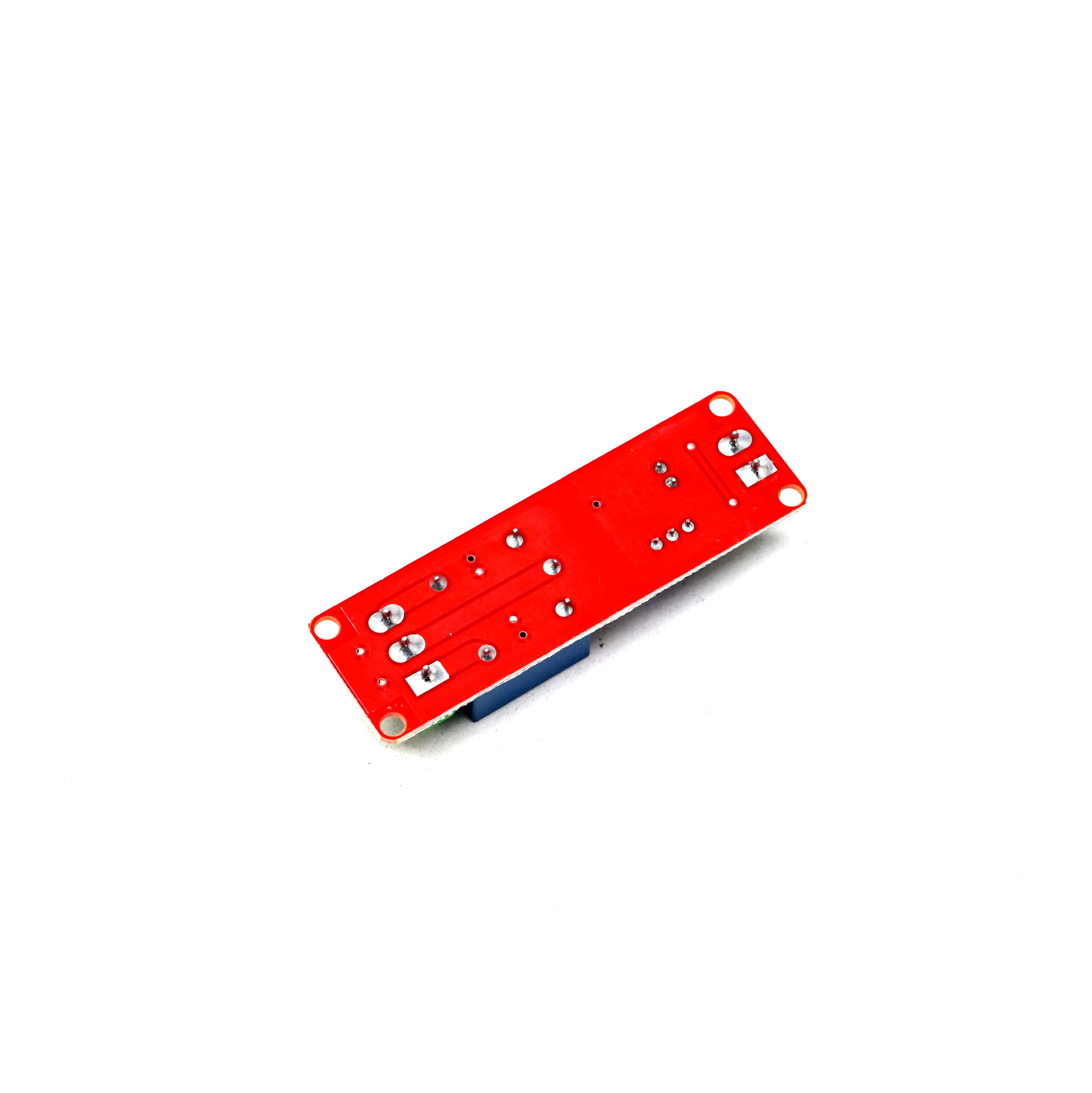

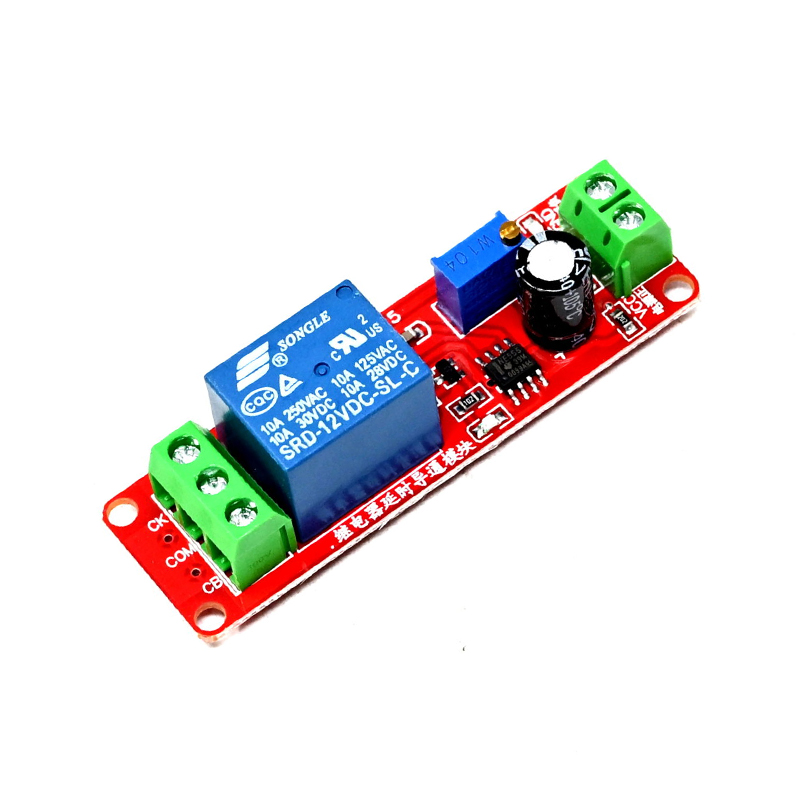

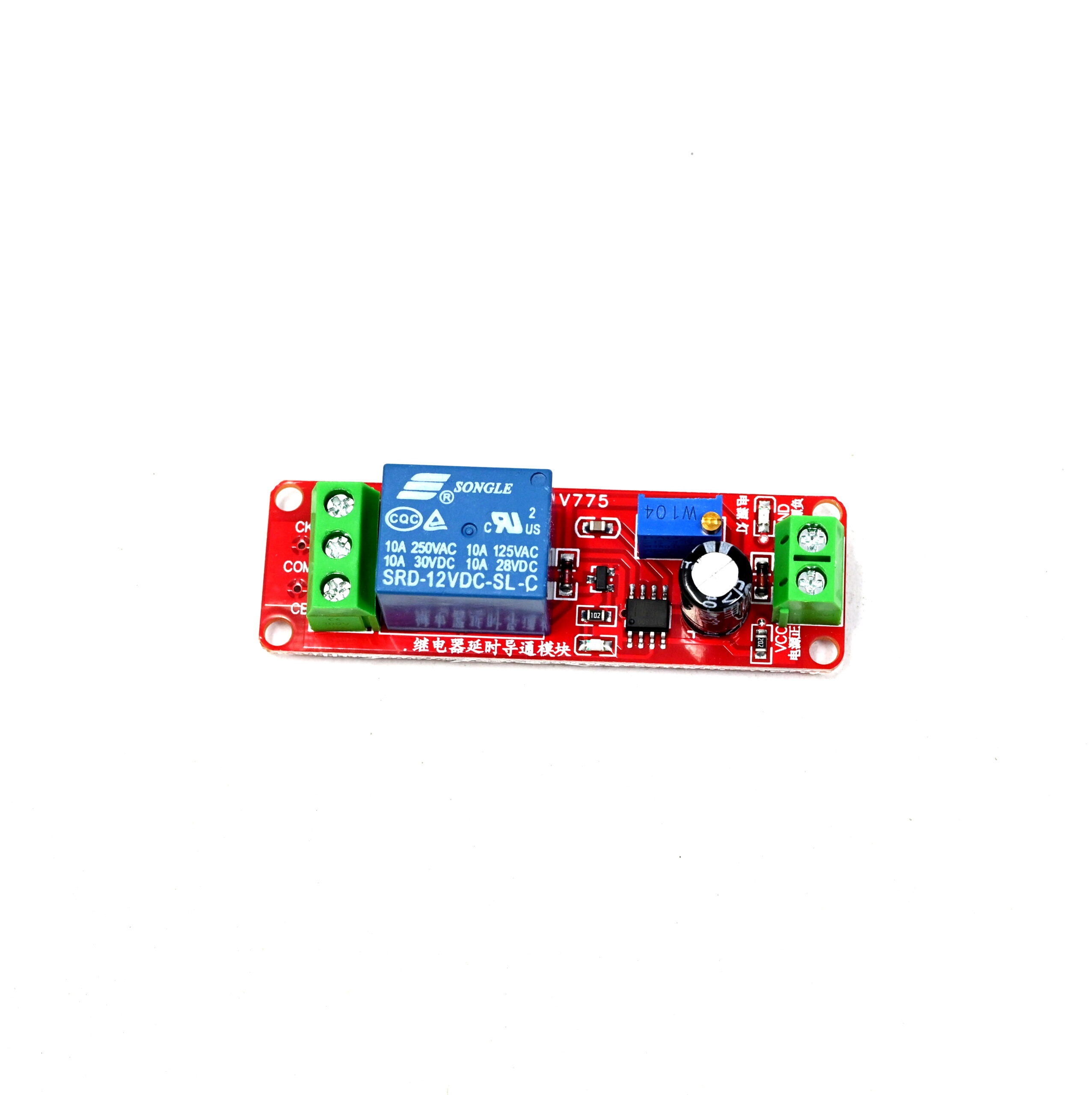

This NE555 Delay Monostable Switch Module Time Delay Switch Delay On Vehicle Electrical Delay 12V, based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.

Features :

1. Precision Pulse Generation / Timing.
2. Monostable Operation.
3. Standby no power consumption
4. Excellent temperature stability of 0.005%/°C
5. Time can be adjusted by a potentiometer, the default is 0-25 seconds.
6. Module signal side design has optocoupler isolation, anti-interference ability can adapt to the high-low level two kinds of control signal application, suitable for industrial control.

Package Includes :

1 x NE555 Delay Monostable Switch Module.
