TF03-100 is an industrial-grade long-range LiDAR. Its maximum detection range can reach 100m. With an integrated compensating algorithm for outdoor glare and other interference, TF03-100 can work under a strong light environment and rain, fog, and snow conditions. Multiple built-in operating modes let customers change their parameters and configuration to meet different applications.

TF03 adopts the pulsed time-of-flight principle. The unique design of the optical system and the signal processing circuit improved the detecting performance in a compact size. In addition to increasing the range to more than 70 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability, and detection frequency.

As the third generation product of the TF series, TF03-100 inherits the cost-effective and compact- integration characteristics of the previous two generations. Meanwhile, TF03-100 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application areas. The product is applicable to the terrain-following of drones, the collision avoidance of cars, intelligent transportation, and industrial safety warning.

TF03-100 RS485/RS232 version supports RS485 and RS232 communication modes at the same time. By default, both interfaces can communicate, and different interface lines can be used.

 Application:

1. Robot Obstacle avoidance
2. UAV Anti-collision
3. UAV Auto landing
4. UAV Height fixing / Distance keeping
5. UAV Terrain following
6. Level Measurement
7. Intelligent parking
8. Crane safety operations
9. Vehicle position sensing
10. Vehicle detection for barrier gate control

Explore the category for another variant of this product. Click here

Note: There are two versions of TF03-100 available. This is an RS485/RS232 version. It supports RS485/RS232 interface with a 6-24V power supply.

Features:

1. Wide range, as far as 100m
2. Multi-interface compatibility, able to be used in many fields
3. IP67 high-strength bodywork and high reliability
4. Small in volume and easy to be integrated
5. High-speed measuring up to 10KHz, high repeated accuracy
6. Excellent highlight interference, able to be used outdoor
7. RS485/RS232 version

Package Includes:

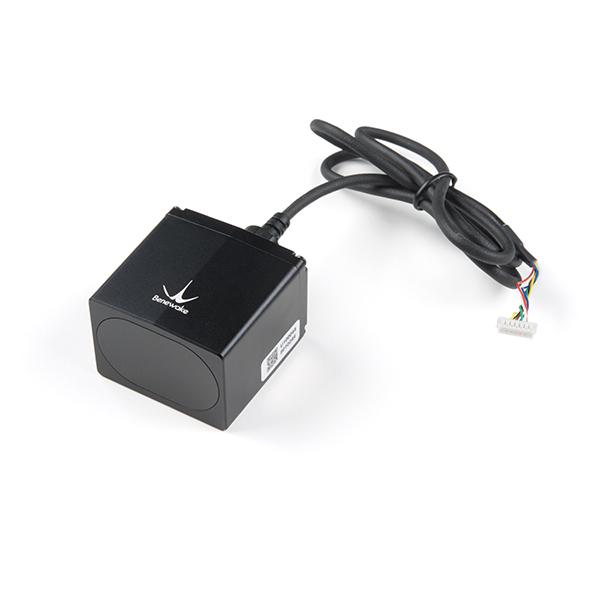

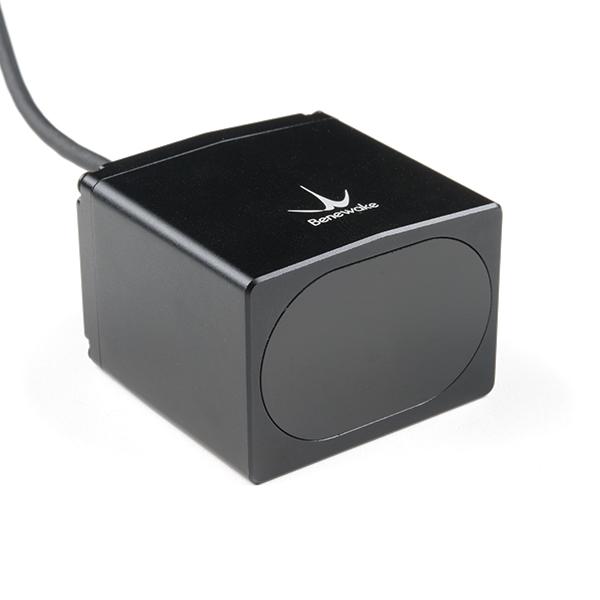

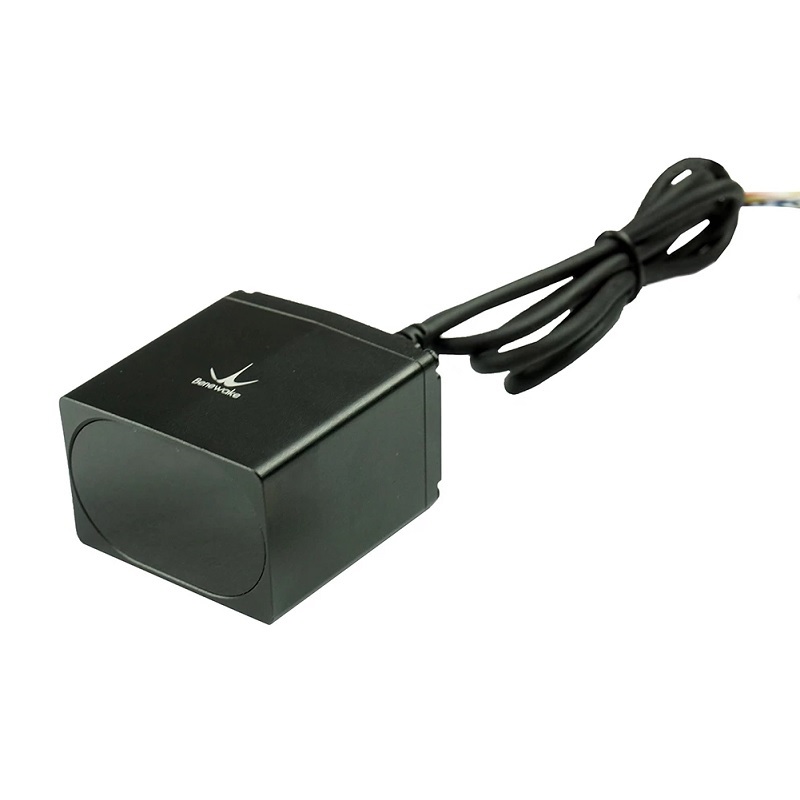

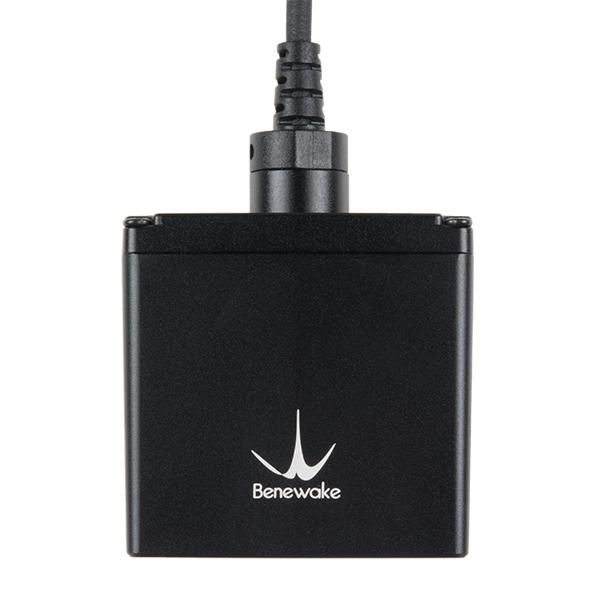

1 x Benewake TF03-100 RS485/RS232 Industrial LiDAR Sensor, Range: 0.1m~100m
