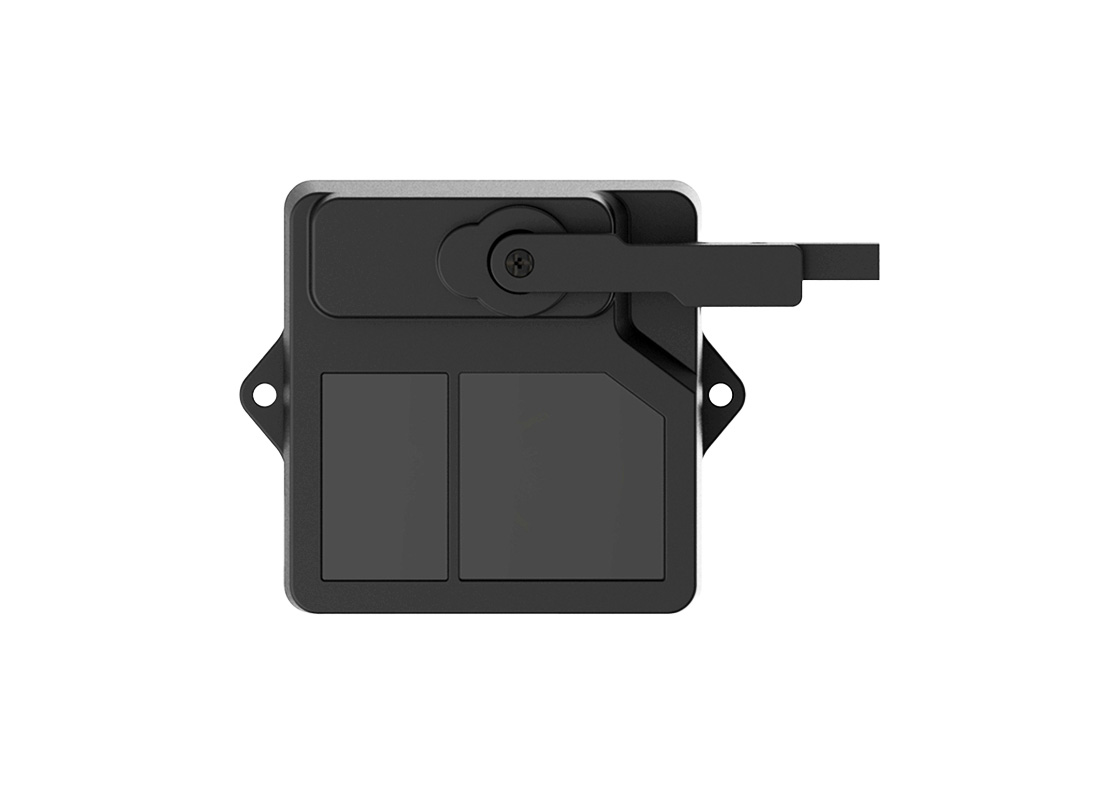

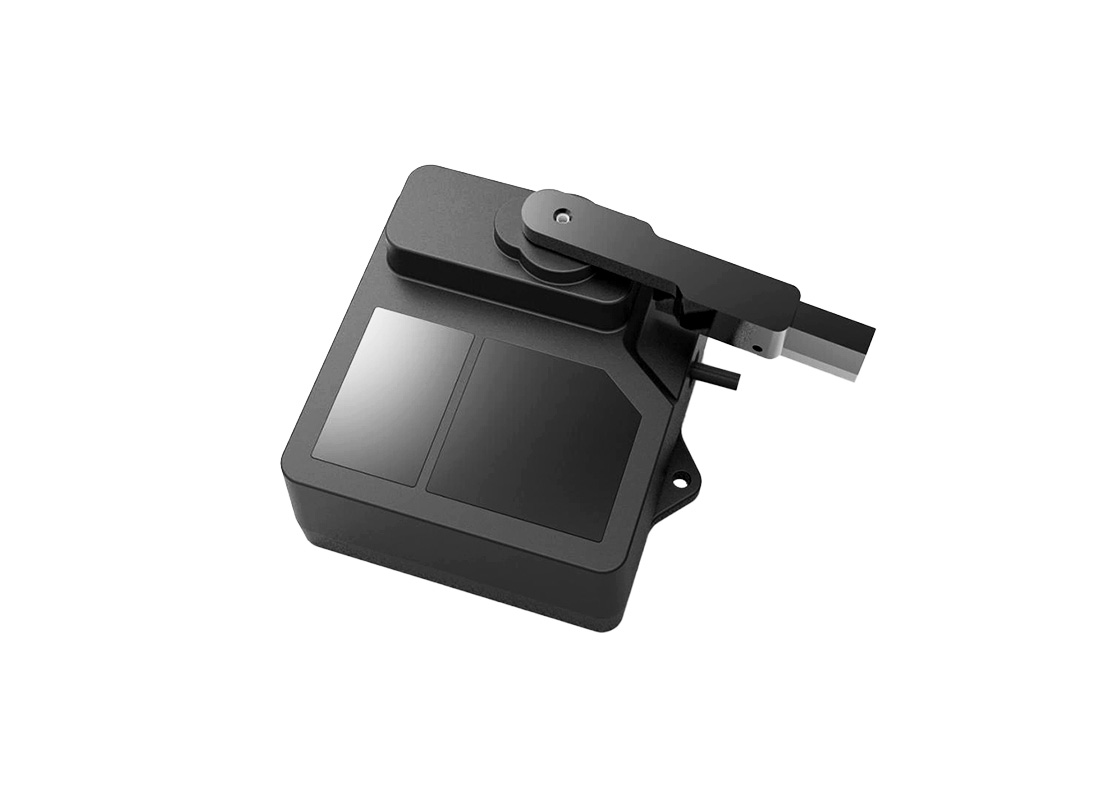

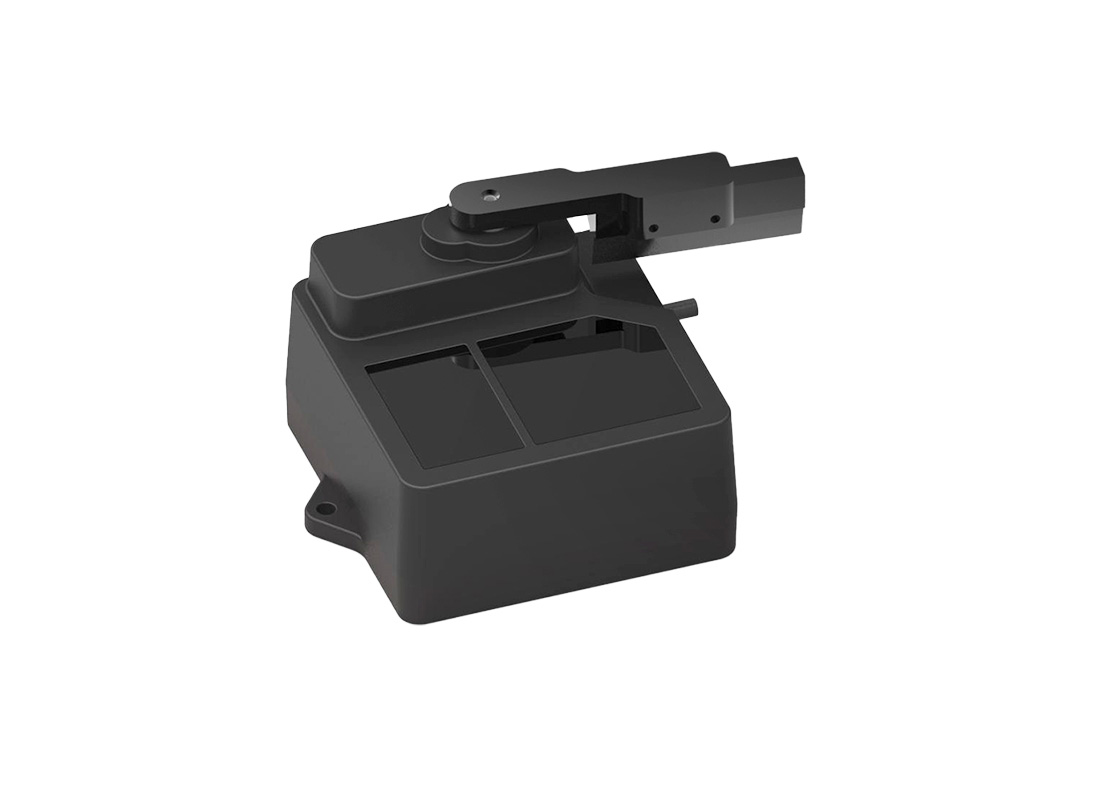

Benewake TF02-Pro-W self-cleaning LiDAR level Sensor (Range: 0.1~25m)
- The range up to 25 meters
- High frame rate(up to 1000Hz)
- Dust-removal function
- Main applications: Material level measurement
SKU: Not Found
Brand: Benewake
Out of stock
₹10465.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
TF02-Pro-W is a single-point ranging LiDAR specially developed for level detection, based on the ToF principle, with 25m detection range and cm-level detection accuracy. It is supplied with a unique dust-removal wiper, which automatically cleans the lens of the front panel of LiDAR regularly to solve the soiling problems, and can maintain the accuracy of ranging detection in a heavy dust environment.
Features:
-
- The range is up to 25 meters
- High frame rate(up to 1000Hz)
- Dust-removal function
- Main applications: Material level measurement
For all technical details go through the datasheets in the attachment Section
Package Includes:
1 x Benewake TF02-Pro-W self-cleaning LiDAR level Sensor (Range: 0.1~25m)
Technical Specifications
| Accuracy | +6cm (0.1m-6m) |
|---|---|
| Ambient light immunity(Klux) | 100 |
| Avg. Current Used (mA) | ≤400 |
| Cable length (mm) | 1200 |
| Central wavelength(nm) | 850 |
| Communication Mode | UART/I2C |
| Detection range | 25m |
| Distance Measuring Range(M) | 0.1~25m |
| Distance resolution | 1cm |
| Enclosure rating | IP5X |
| Frame rate(Hz) | 1 to 1000 |
| Height (mm) | 43 |
| Length (mm) | 85 |
| Operating Temperature (°C) | -20 to 60 |
| Peak Current (A) | 1 |
| Power Consumption (W) | ≤2 |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.2 kg |
| Storage Temperature (°C) | -30°C~80°C |
| Supply voltage(VDC) | 5 |
| View angle | 3° |
| Weight (g) | 90 |
| Width (mm) | 59 |
