The TF02-i LIDAR ToF Optical Ranging Sensor is a unidirectional ranging LiDAR, which is mainly used in height ranging and terrain-following of drones, supporting flight controls like Plixhawk, APM, TopXGun, EFY Technology, aiAero, DAISCH, etc.

Benewake TF02-i-CAN LiDAR Distance Sensor are updated single-point ranging LiDAR based on TF02-Pro. These sensors have been optimized in communication interface, input voltage, and reverse protection. These distance sensors operate from 7V to 30V supply voltage range and -20°C to 70°C temperature range. The TF02-i sensors suits for various industrial environments like pedestrian detection, vehicle testing, and altitude.

The protection design of the TF02-i is based on the IP65 level, which prevents it from dust, water, and corrosion. It is anti-inferential from the strong light outdoors. It can work under 100K lux light without interference from the temperature, humidity, light, electronics, and airflow.

High sensitivity, measuring distance up to (0.1-40m)  accuracy in cm level. Scan frequency up to 1000Hz, real-time distance detection with a 500 times/second refresh rate for more accurate data. TF02-i has a complete system containing a protective shell made of materials with a high transmittance of infrared, which doesn’t affect the optical performance.

It has been widely used in height fixing and terrain-following of drones, especially in agriculture. As a considerably mature product in the market, TF02-i LiDAR Laser Rangefinder Sensor has collected a large amount of experience and actual data in different situations, which has been taken as feedback for further product improvements. Meanwhile, to guarantee the reliability of the TF02-i, we conduct a rigorous seismic test, and the performance of TF02-i turns out excellent.

Features:

1. FOV3°
2. Anti-ambient light Function under 100k Lux ambient light.
3.  Communication Interface: CAN.
4. 7V to 30V wide input voltage range
5. Reverse protection

Application:

1. Robot Obstacle avoidance
2. Drones UAV Anti-collision
3. UAV Auto landing
4. UAV Height fixing / Distance keeping
5. UAV Terrain following
6. Level Measurement
7. Robots Obstacle avoidance
8. Tank volume / Bins volume/ Silo material level Detection
9. Smart Parking
10. Crane safety Operations
11. Wheel Ahead Detection/Alert
12. Vehicles Position Sensing/vehicles counting
13. Vehicles Detection for toll Gate Control
14. People Counting
15. Triggering Switch
16. Part of Rotating LiDAR

Package Includes:

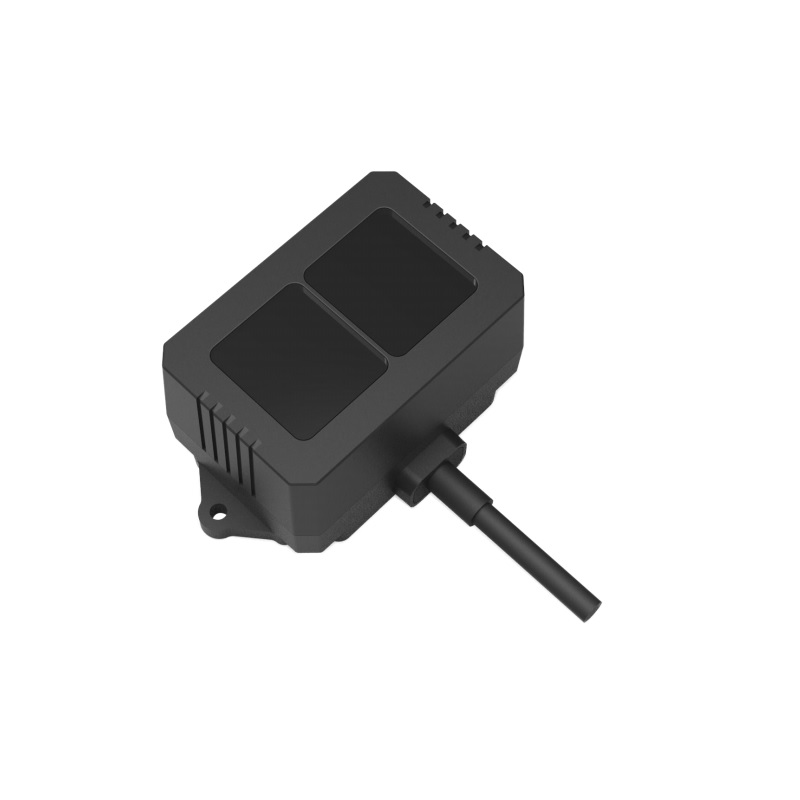

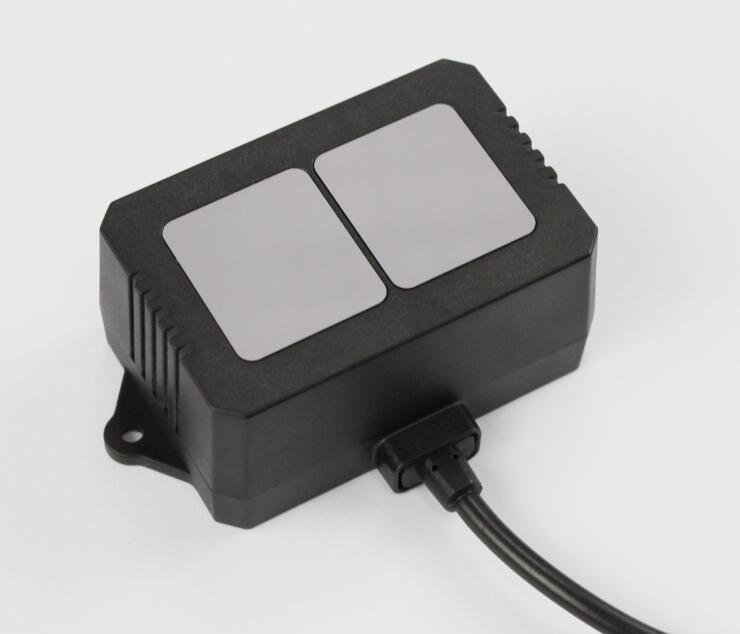

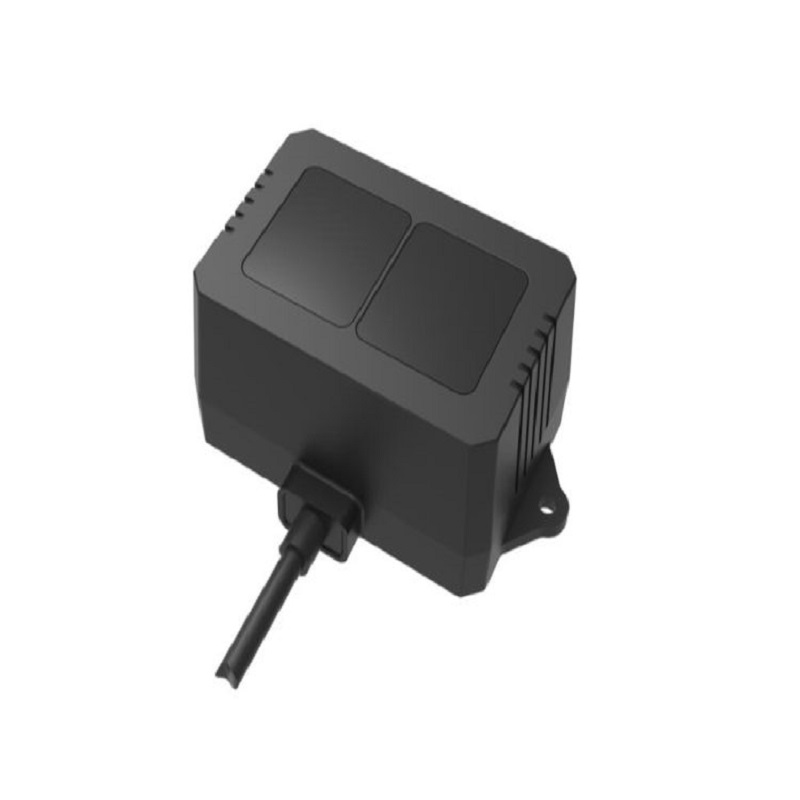

1 x Benewake TF02-i-CAN LiDAR Distance Sensor Module, Range: 0.1m~40m
