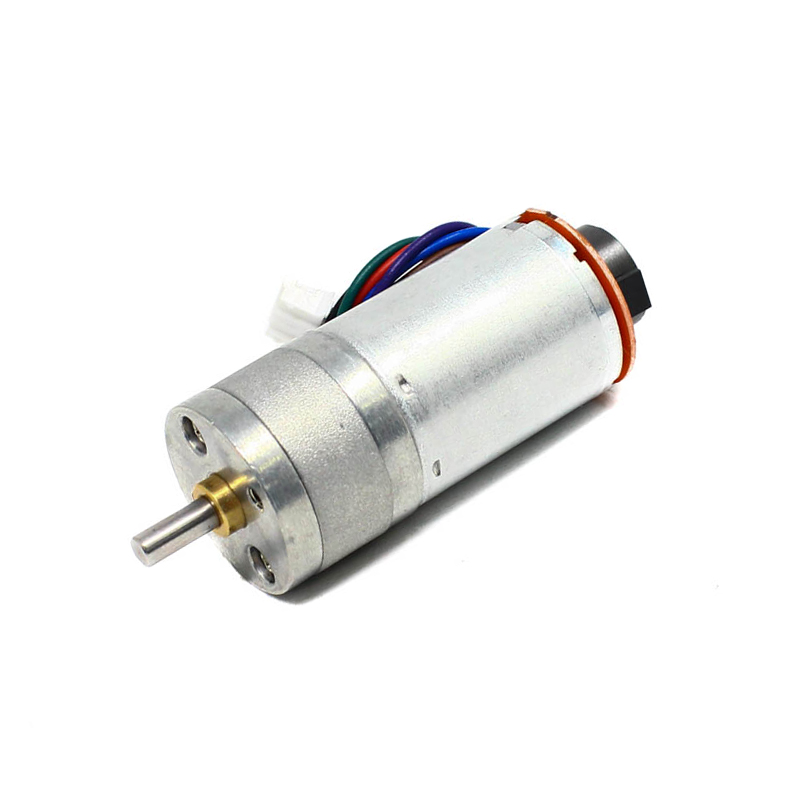

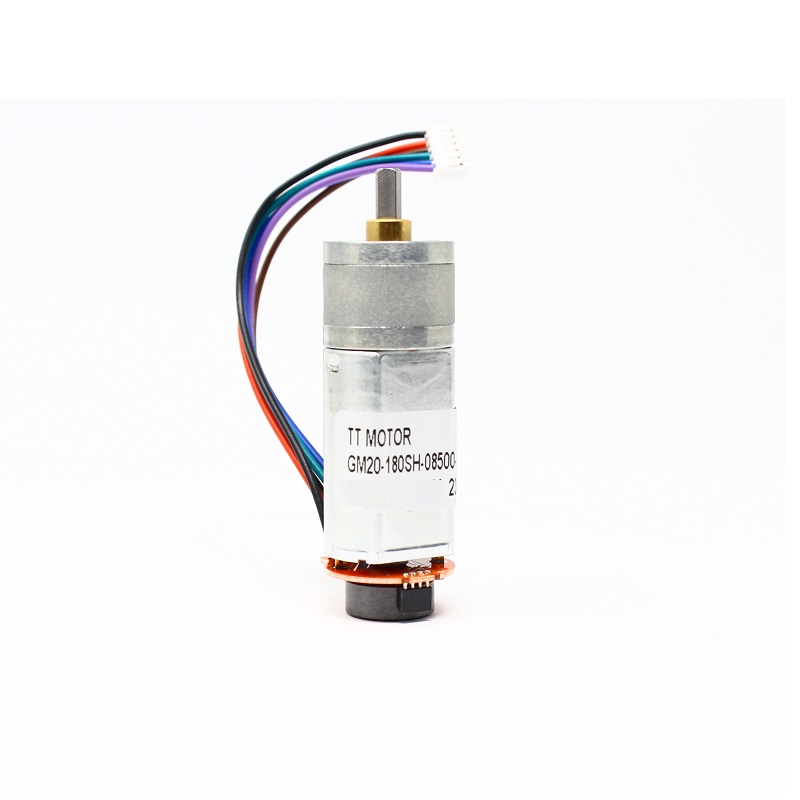

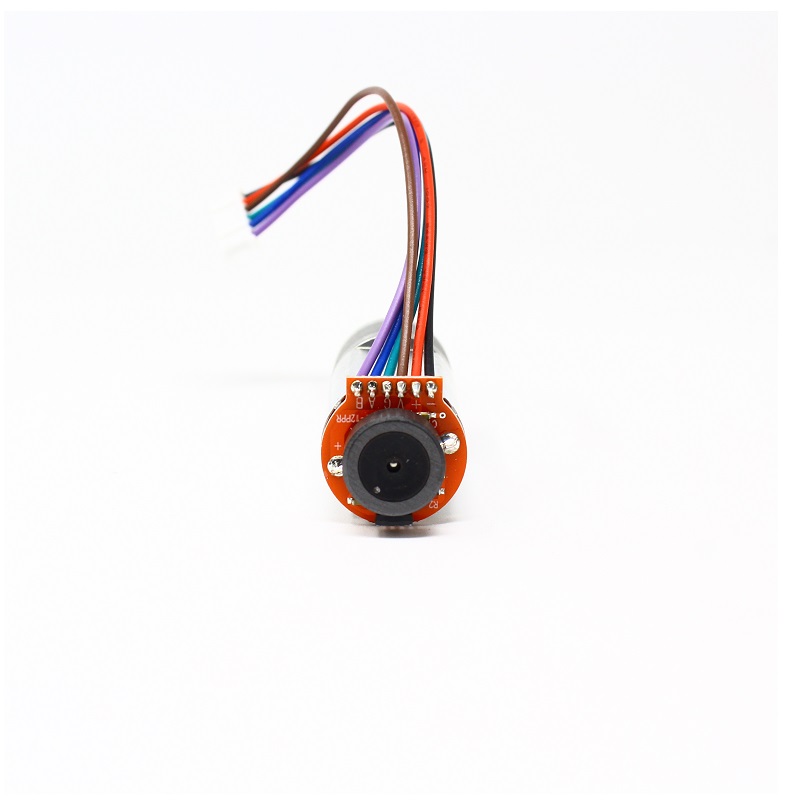

TTM DC N25 Metal Geared Motor with Encoder
TT Motor – N25 6V 115RPM Metal gear Motor With Encoder D type
- Model: N25
- Voltage: 6V
- RPM: 115
- Type: D type
- Shaft Length: 1cm
SKU: Not Found
Brand: TT Motors
Out of stock
₹534.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N25 6V 115RPM Metal Gear Motor with Encoder D type is a versatile and precision-engineered electro-mechanical device designed to provide reliable and controlled rotational motion in various applications. This motor combines the robustness of a metal gear system with the added functionality of an encoder, making it suitable for projects requiring accurate speed control, position monitoring, and feedback
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607490 | N25 Metal Gear Motor With Encoder D Type Shaft | 12 | 75 |
| 1607491 | N25 Metal gear Motor With Encoder D type | 6 | 115 |
| 1607488 | N25 Metal gear Motor With Encoder D Type Shaft | 12 | 170 |
| R207441 | N25 Metal Gear Motor With Encoder | 6 | 260 |
| 1607489 | N25 Metal Gear Motor With Encoder D type | 12 | 370 |
| 1607495 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 550 |
| 1607493 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 1330 |
Features:
- Precise Control
- Durable Metal Gears
- Optimal Speed
- Secure Connection
- Compact Design
- Effortless Integration
- Efficient Voltage
Package Includes:
1 x N25 6V 115RPM Metal gear Motor With Encoder D type
Technical Specifications
| Item Type | N25 Metal Gear Motor |
|---|---|
| Motor diameter (mm) | 24 |
| Motor Length (mm) | 73 |
| Operating Voltage (V) | 6 |
| Rated Speed (RPM) | 115 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 10 |
| Shaft Type | D Type |
| Shipping Dimensions | 12 × 8 × 3 cm |
| Shipping Weight | 0.06 kg |
