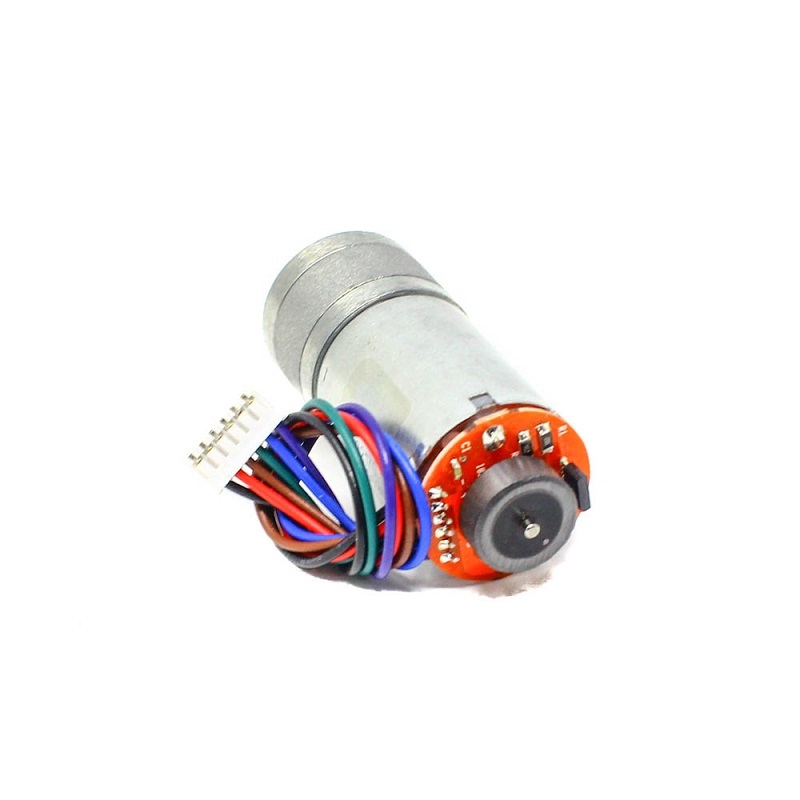

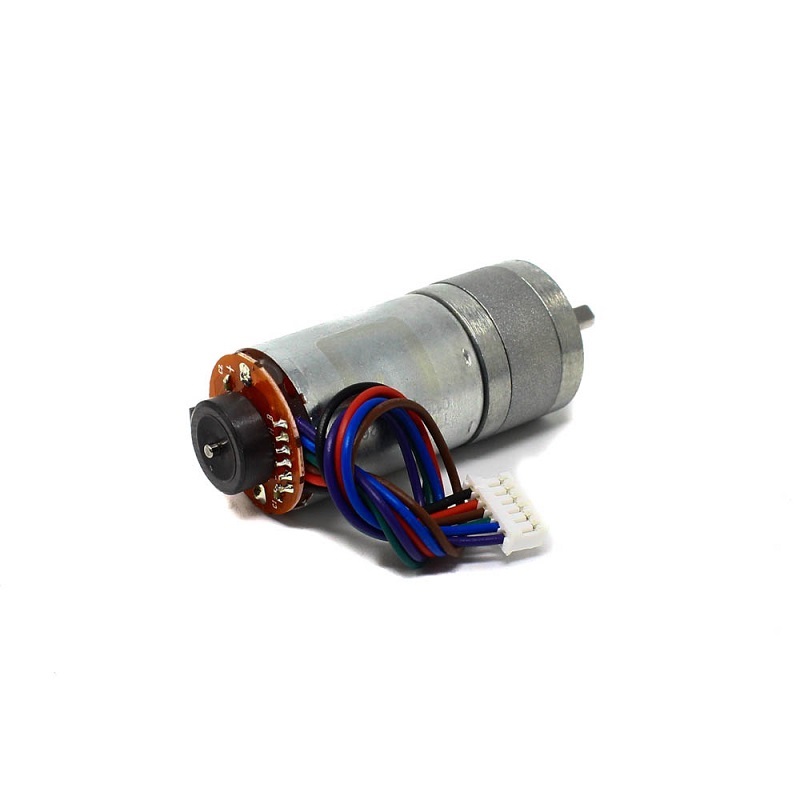

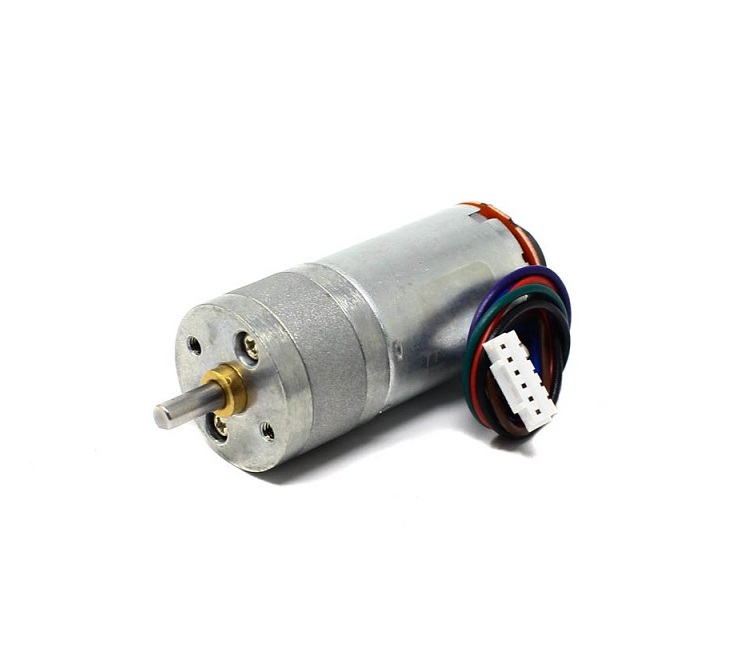

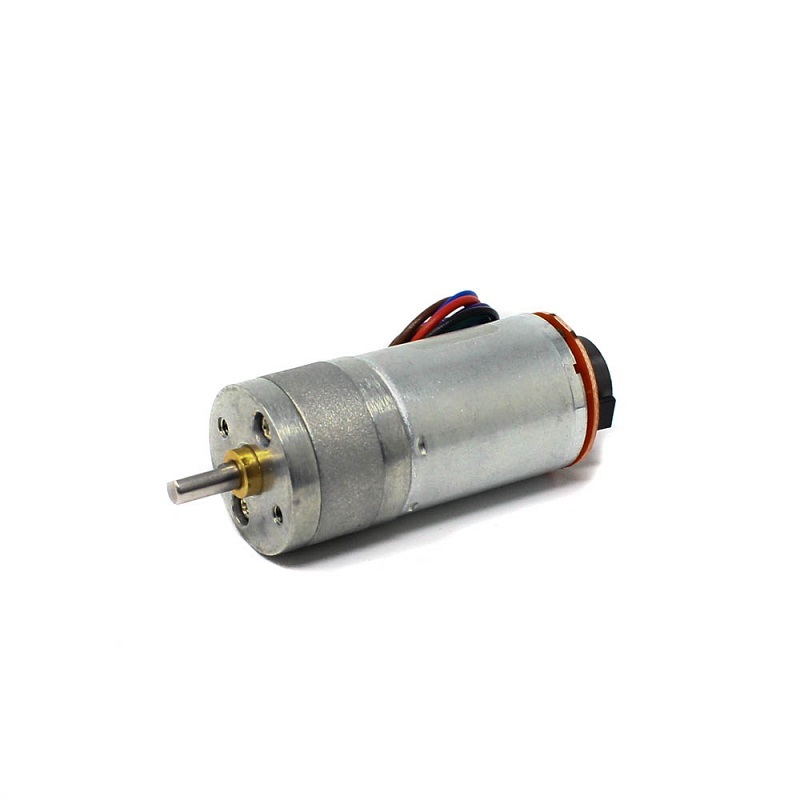

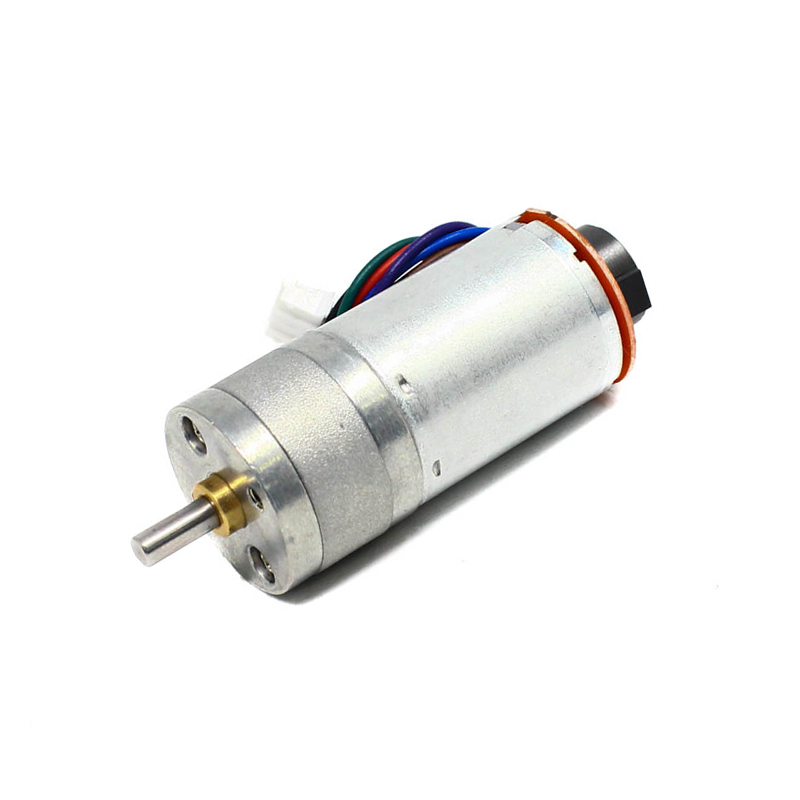

TTM DC N25 Metal Geared Motor with Encoder
TT Motor – N25 12V 170RPM Metal gear Motor With Encoder D Type Shaft
- Model: N25
- Type: Metal gear Motor With Encoder D Type Shaft
- Operating Voltage: 12V
- Rated RPM: 170
SKU: Not Found
Brand: TT Motors
Out of stock
₹562.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N25 12V 170RPM Metal Gear Motor with D-Type Encoder is a reliable choice for precise control and accurate feedback. Its sturdy metal gears ensure effective power transmission and durability. Operating at 12V with a speed of 170 RPM, the motor features a built-in D-type encoder for precise rotation monitoring. It suits various applications, including robotics and automation, where dependable motion control and position sensing are crucial.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607490 | N25 Metal Gear Motor With Encoder D Type Shaft | 12 | 75 |
| 1607491 | N25 Metal gear Motor With Encoder D type | 6 | 115 |
| 1607488 | N25 Metal gear Motor With Encoder D Type Shaft | 12 | 170 |
| R207441 | N25 Metal Gear Motor With Encoder | 6 | 260 |
| 1607489 | N25 Metal Gear Motor With Encoder D type | 12 | 370 |
| 1607495 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 550 |
| 1607493 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 1330 |
Features:
- N25 12V 170RPM Metal Gear Motor
- Equipped with D-Type Encoder
- Robust metal gears for durability
- Operating voltage: 12V
- Speed: 170 RPM
- Suitable for robotics and automation applications
Package Includes:
1 x N25 12V 170RPM Metal gear Motor With Encoder D Type Shaft
Technical Specifications
| Item Type | N25 Metal Gear Motor |
|---|---|
| Length (mm) | 60 |
| Operating Voltage (V) | 12 |
| Rated Speed (RPM) | 170 |
| Shaft Diameter (mm) | 2.6 |
| Shaft Length (mm) | 10 |
| Shaft Type | D Type |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.096 kg |
| Weight (g) | 94 |
