TTM DC N25 Metal Geared Motor with Encoder

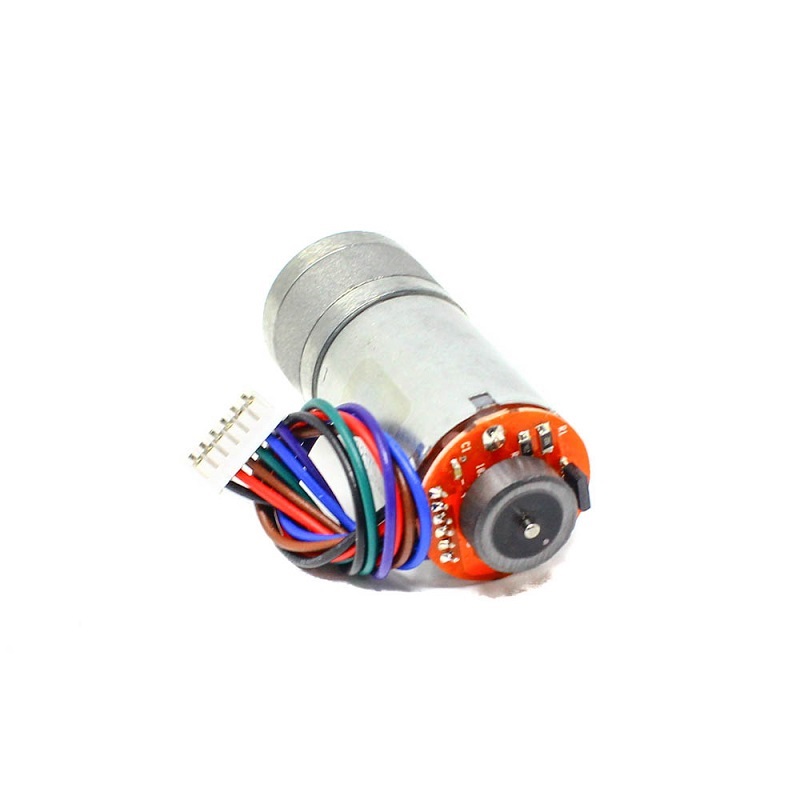

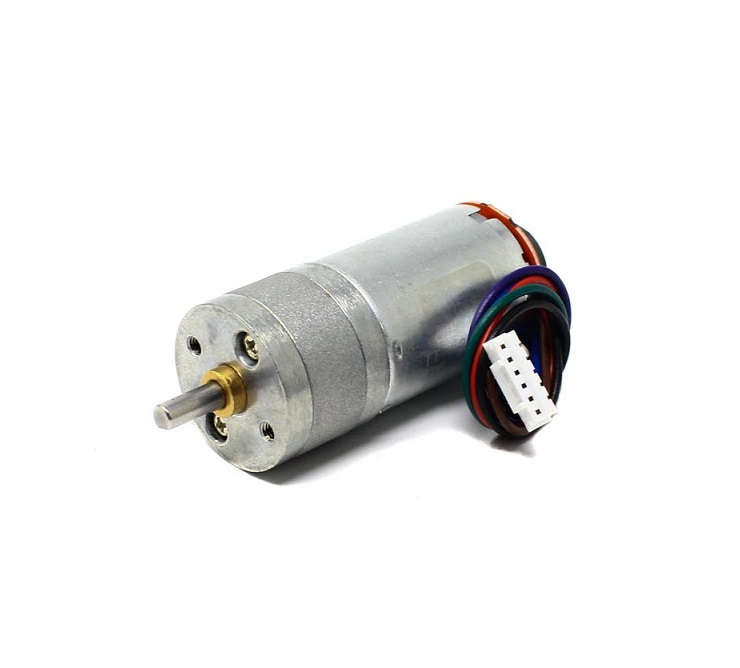

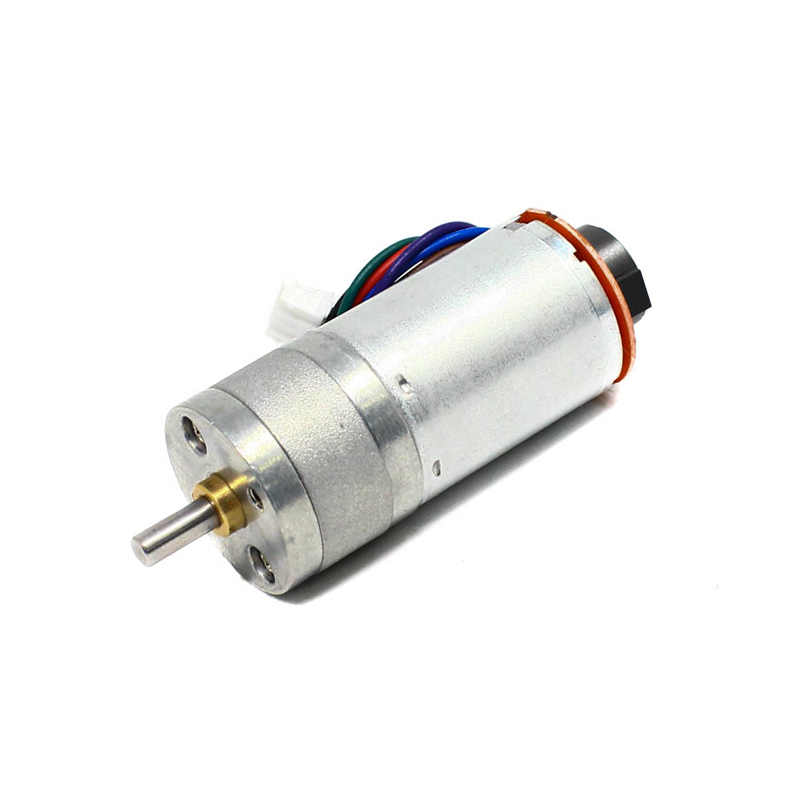

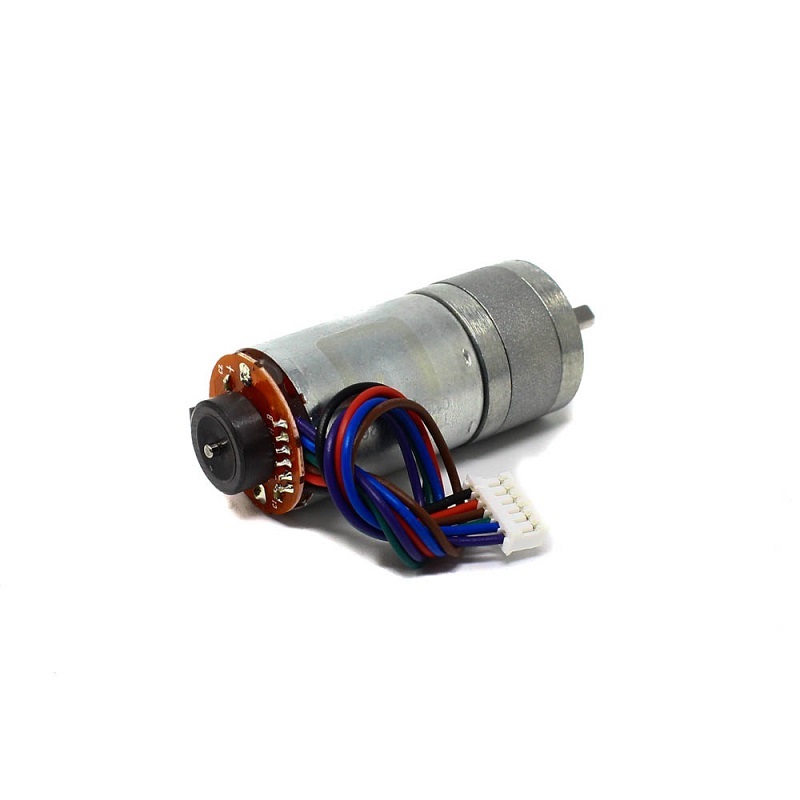

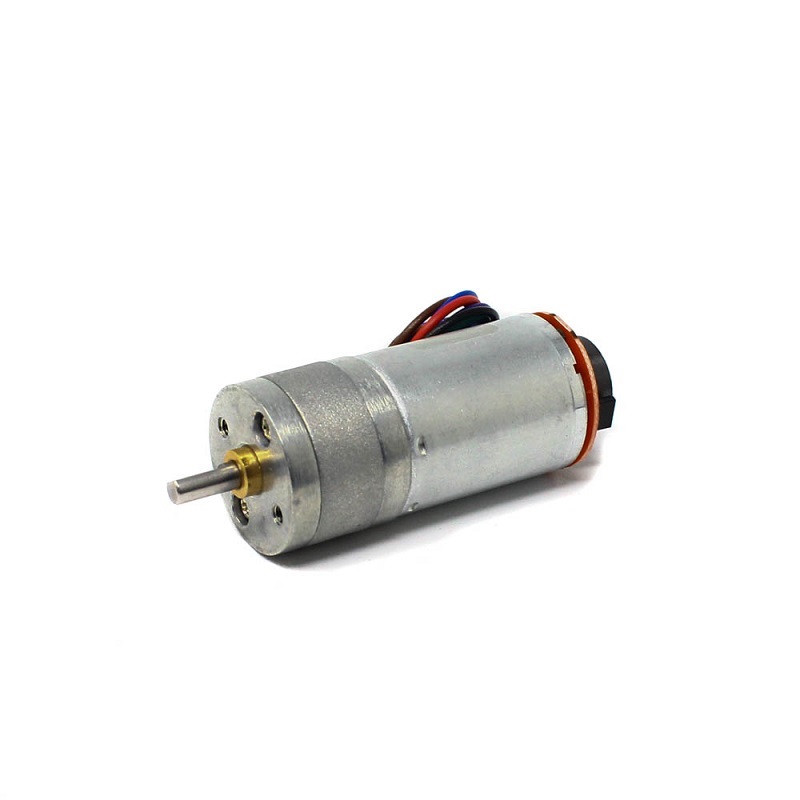

TT Motor – N25 12V 75RPM Metal Gear Motor With Encoder D Type Shaft
- Model: N25
- Type: Metal Gear Motor With Encoder D-Type Shaft
- Operating Voltage: 12V
- Rated RPM: 75
SKU: Not Found
Brand: TT Motors
Out of stock
₹534.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N25 12V 75RPM Metal Gear Motor with D-Type Encoder offers precise and reliable performance. Its robust metal gears ensure durability and efficient power transmission. Operating at 12V with a speed of 75 RPM, the motor is equipped with a D-type encoder for accurate rotation tracking. This motor is well-suited for applications requiring accurate motion control and position feedback, such as robotics, automation, and other projects where precision is essential.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607490 | N25 Metal Gear Motor With Encoder D Type Shaft | 12 | 75 |
| 1607491 | N25 Metal gear Motor With Encoder D type | 6 | 115 |
| 1607488 | N25 Metal gear Motor With Encoder D Type Shaft | 12 | 170 |
| R207441 | N25 Metal Gear Motor With Encoder | 6 | 260 |
| 1607489 | N25 Metal Gear Motor With Encoder D type | 12 | 370 |
| 1607495 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 550 |
| 1607493 | N25 Metal Gear Motor With Encoder D Type Shaft | 6 | 1330 |
Features:
- N25 12V 75RPM Metal Gear Motor
- Comes with D-Type Encoder
- Sturdy metal gears for durability
- Operating voltage: 12V
- Speed: 75 RPM
- Ideal for precise robotics, automation, and motion control tasks
Package Includes:
1 x N25 12V 75RPM Metal Gear Motor With Encoder D Type Shaft
Technical Specifications
| Item Type | N25 Metal Gear Motor |
|---|---|
| Length (mm) | 62 |
| Operating Voltage (V) | 12 |
| Rated Speed (RPM) | 75 |
| Shaft Diameter (mm) | 2.6 |
| Shaft Length (mm) | 9 |
| Shaft Type | D Type |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.096 kg |
| Weight (g) | 94 |
