Brushed / Brushless DC motor Driver

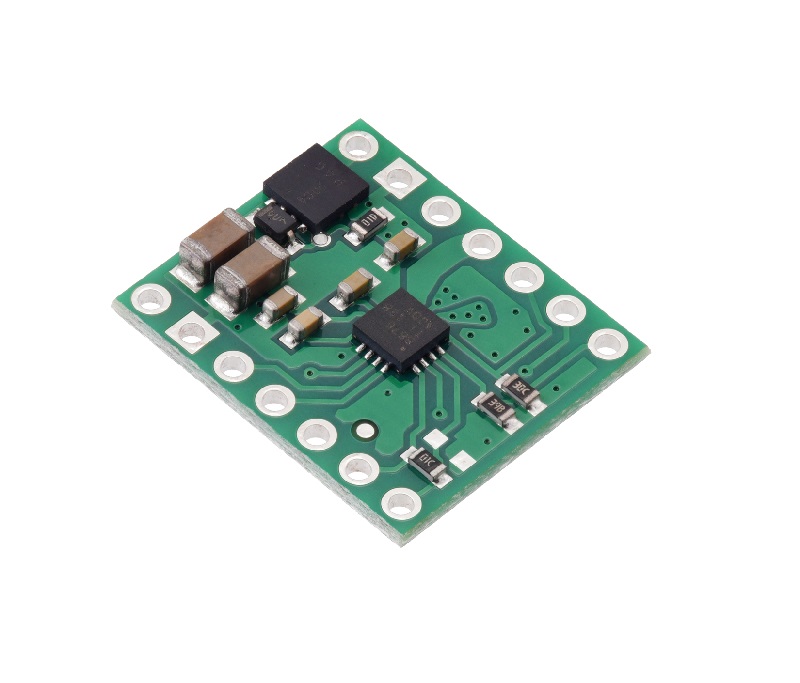

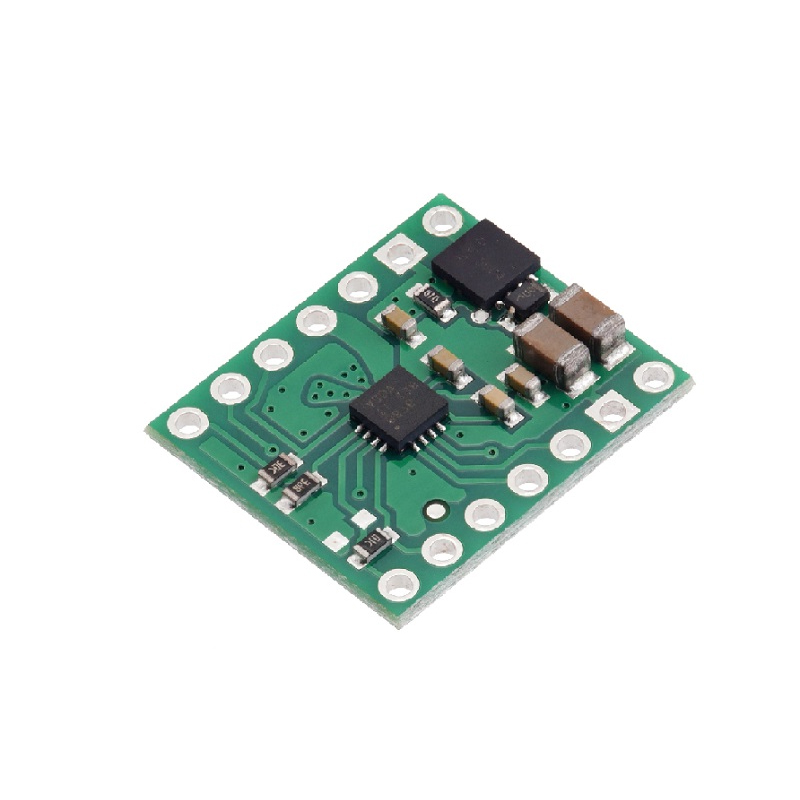

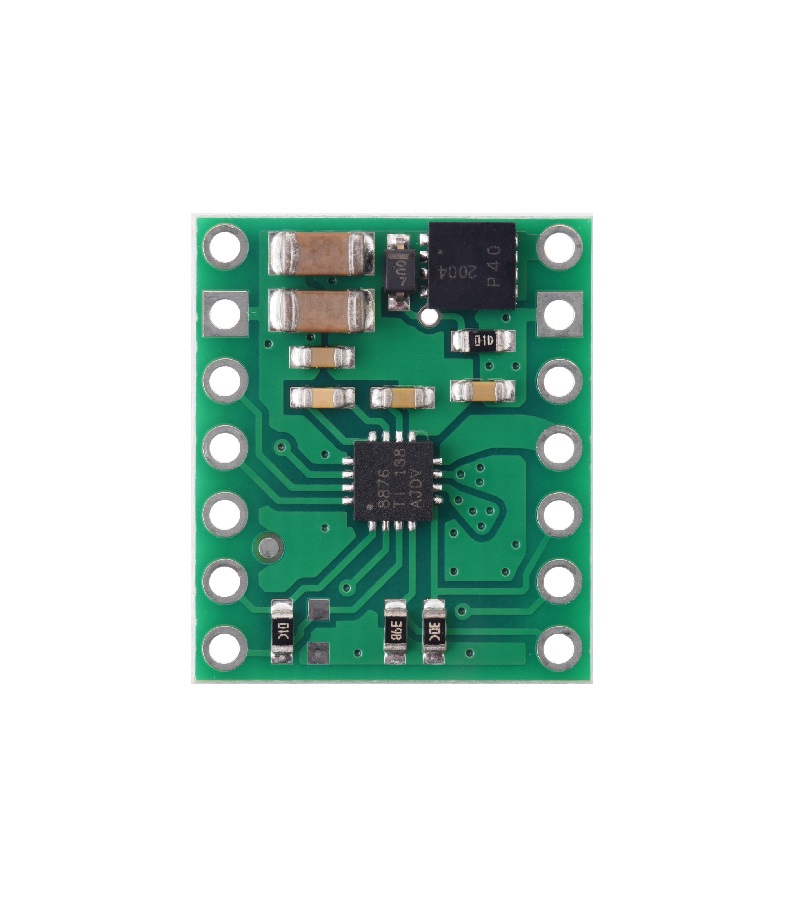

DRV8876 (QFN) Single Brushed DC Motor Driver Carrier
- Voltage Range: 4.5 V to 37 V
- Current: 1.1 A continuous, 2 A peak
- Control Modes: Phase/enable, PWM, independent half-bridge
- Protection Features: Over-current, under-voltage, over-temperature
- Reverse Voltage Protection: Ensures safety
- RoHS Compliant: Eco-friendly
SKU: Not Found
Brand: Pololu
Out of stock
₹734.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The DRV8876 motor driver carrier from Pololu is designed for controlling single bidirectional brushed DC motors. With an operating voltage range of 4.5 V to 37 V, it delivers continuous currents of up to 1.1 A and has a default peak current limit of 2 A. It includes features such as integrated current sensing, adjustable current regulation, and multiple control modes.
Features:
- Voltage Range: 4.5 V to 37 V
- Continuous Current: 1.1 A; Peak: 2 A
- Control Modes: Phase/enable, PWM, and independent half-bridge
- Integrated Protection: Over-current, under-voltage, and over-temperature
- Reverse Voltage Protection: Ensures safe operation
- RoHS Compliant: Environmentally friendly design
Package Includes:
1 x DRV8876 (QFN) Single Brushed DC Motor Driver Carrier
Technical Specifications
| Max. operating voltage | 4.5 |
|---|---|
| Model Name | DRV8876 |
| No. of Channels | 1 |
| Operating Voltage | 37V |
| Shipping Dimensions | 12 × 8 × 3 cm |
| Shipping Weight | 0.02 kg |
