Brushed / Brushless DC motor Driver

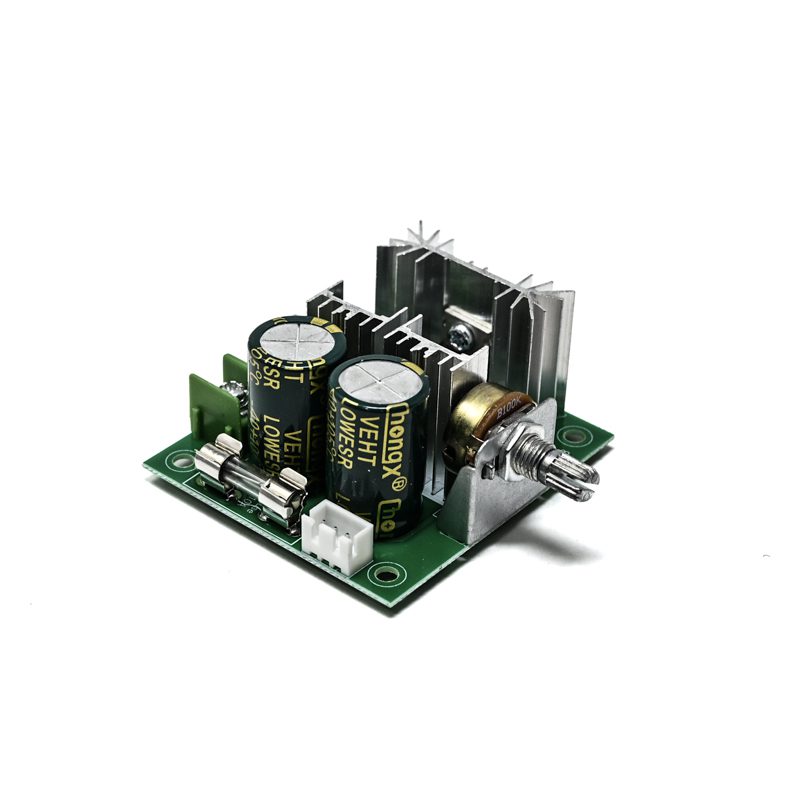

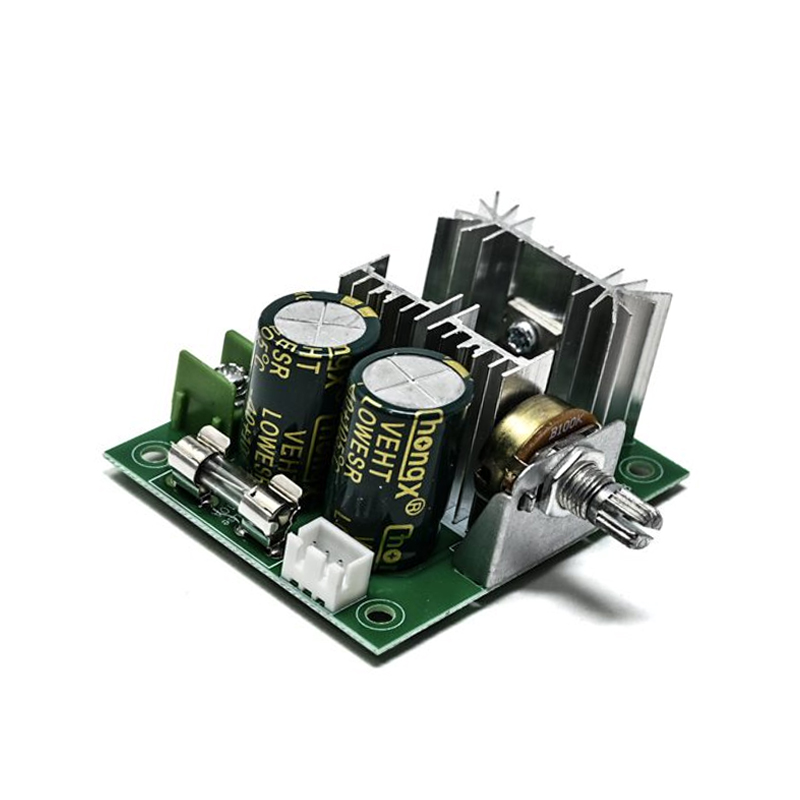

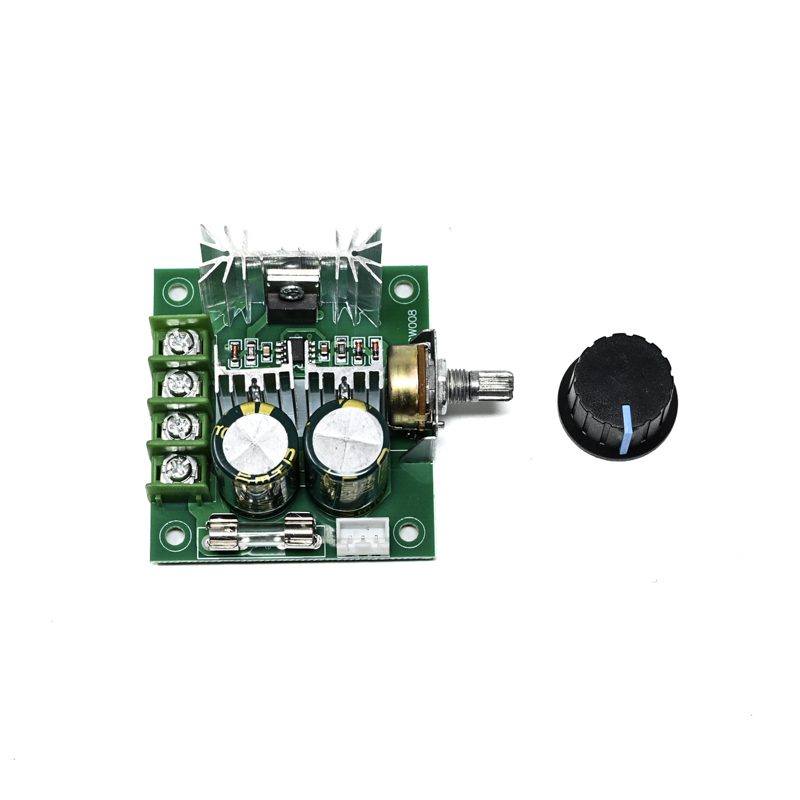

12V-40V10A DC Motor PWM Speed Control Switch Governor
- Input supply voltage: DC 12V-40V
- The maximum output power: 400W
- The maximum continuous output current:8A
- Static Current:0.02 A ( Standby )
- PWM frequency: 13kHz
- Duty Cycle adjustable: 10%-100%
SKU: Not Found
Brand: Generic
Out of stock
₹152.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The DC Motor Speed Controller allows controlling the speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
Note:
This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Features:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
- Working Voltage: DC 12V – DC 40V.
- Control Power:0.01 – 400W.
- Static Current:0.02 A ( Standby ).
- PWM Duty Cycle:10% -100%.
Package Includes:
1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
Technical Specifications
| Continuous Current (A) | 8A |
|---|---|
| Current Rating (A) | 10 |
| Dimensions (LxWxH) cm | 6*5.5*2.8 |
| Duty Cycle Adjustable (%) | 10%-100% |
| Input Supply Voltage (V) | DC 12V-40V |
| Item Type | PWM Speed Regulator |
| Material | Plastic, Metal |
| Operating Temperature (°C) | -20-40℃ |
| Output Power (W) | 400W |
| PWM frequency | 13kHz |
| Shipping Dimensions | 11 × 11 × 3 cm |
| Shipping Weight | 0.08 kg |
| Static Current | 0.02 A ( Standby ) |
| Voltage Rating (V) | 12 to 40 |
| Weight (g) | 69g |
