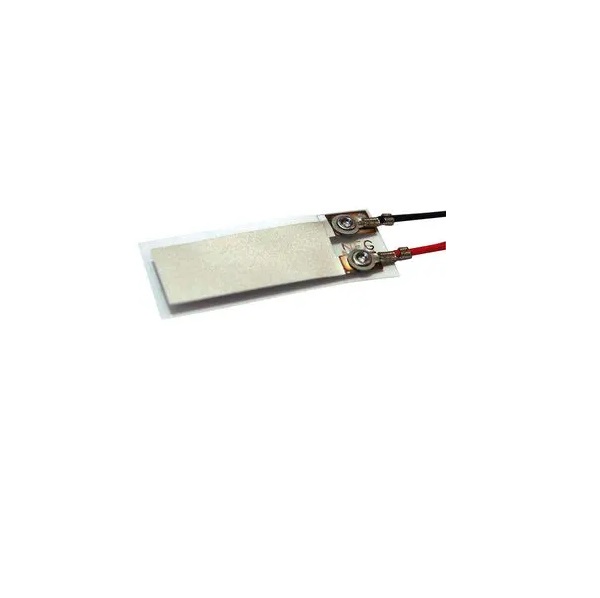

TE Connectivity Piezoelectric Voltage Sensor 1.38nF
- Piezoelectric film sensor without lead attachments
- Silver ink electrode
- Available in different sizes and thicknesses
- Great for making your own sensor
- Thin Piezo polymer w/ high piezo activity
- Flexible silver ink metallization
SKU: Not Found
Brand: Generic
Out of stock
₹811.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The DT series of piezo film sensor elements are rectangular elements of the piezo film with silver ink screen
printed electrodes. They are available in a variety of different sizes and thicknesses. The DT film element produces more than 10 millivolts per microstrain, about 60 dB higher than the voltage output of a foil strain gauge. The capacitance is proportional to the area and inversely proportional to the thickness of the element.
Note : Actual product may vary in terms of design.
Features:
- Piezoelectric film sensor without lead attachments
- Silver ink electrode
- Available in different sizes and thicknesses
- Great for making your own sensor
- Thin Piezo polymer w/ high piezo activity
- Flexible silver ink metallization
Package Includes:
1 x PIEZOELECTRIC SENSOR, VOLTAGE, 1.38NF
Technical Specifications
| Capacitor value | 1.38 nf |
|---|---|
| Operating Temperature (°C) | -40 to 60°C |
| Output Voltage (V) | mV to 100s of volts |
| Shipping Dimensions | 7 × 7 × 1 cm |
| Shipping Weight | 0.01 kg |
