Load Sensor

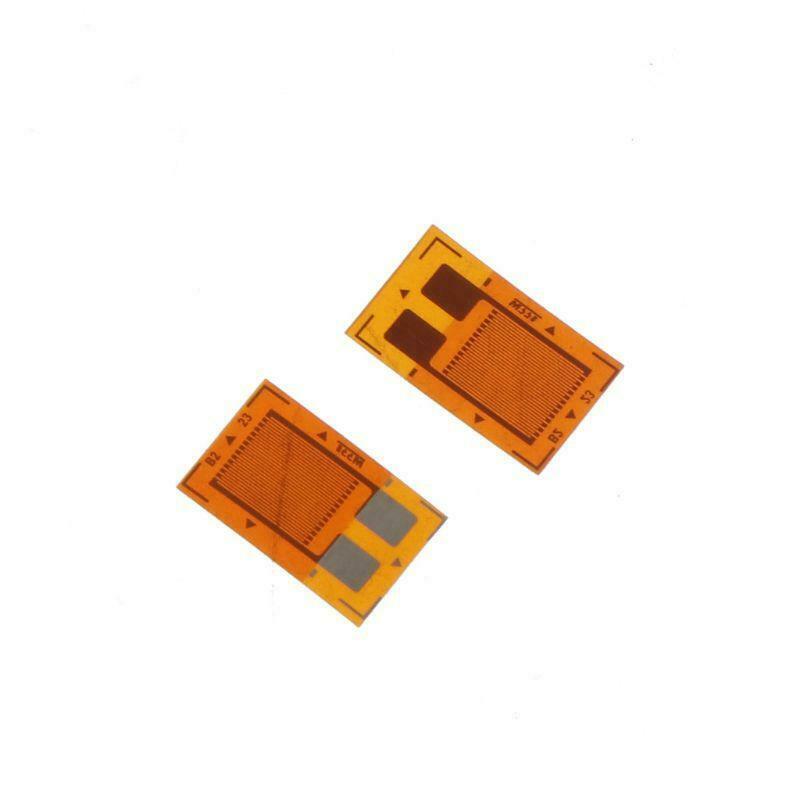

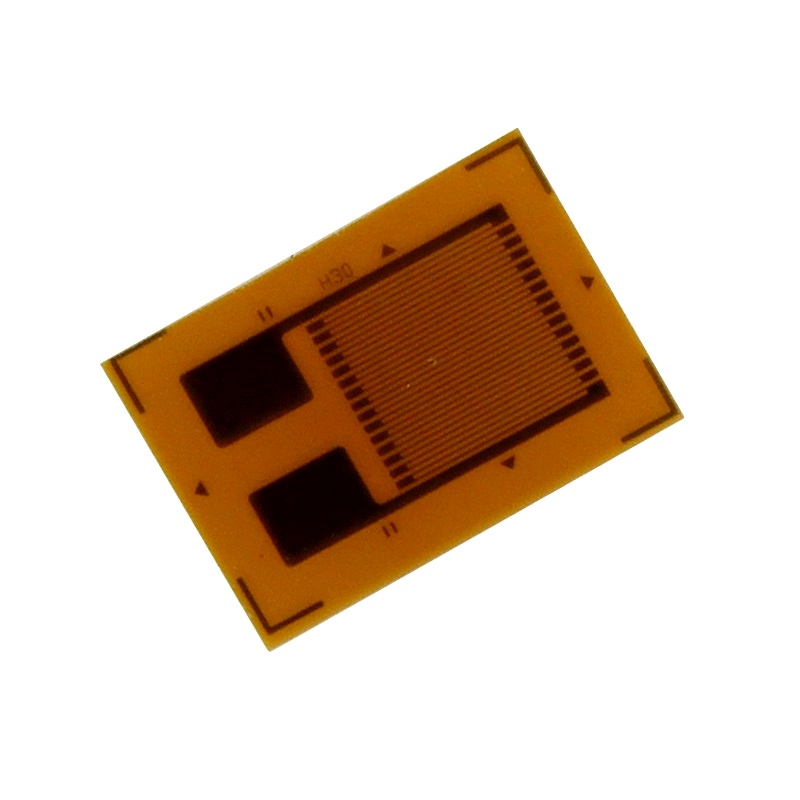

BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm
- Technical Indexes: BF series
- Strain limit: 2.0%
- Fatigue life: ≥1M
- Resistance: 350 ohms
- Contrast: 800: 1 (Min) (transmission)
- Sensitivity coefficient: 2.00-2.20
SKU: Not Found
Brand: Generic
Out of stock
₹29.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm is a foil metal strain gauge, widely used in pressure sensor and weighing sensor. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high. You could use it to measure the strain of components directly!
Features:
- High accuracy helps you get the accurate resistance data
- Good stability for its running and usability
- Modified phenolic of backing material and Cuni of the gate wire
- Fully-closed structure to ensure data transmission safety
- Automatic compensation of temperature and creep
Package Includes:
1 x BF350 High-precision Resistance Strain Gauge
Technical Specifications
| Contrast | 800: 1 (Min) (transmission) |
|---|---|

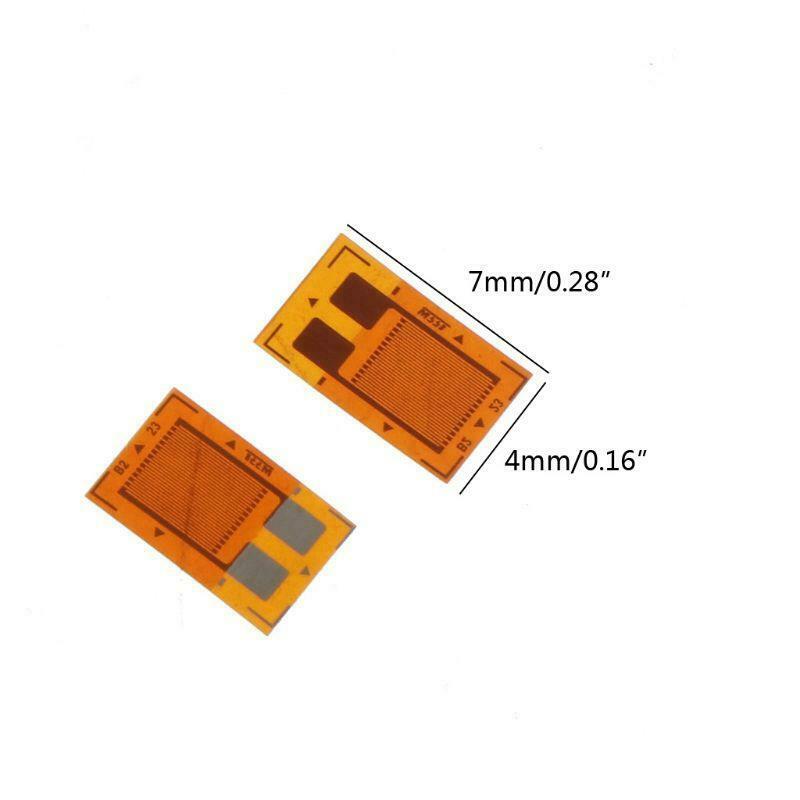

| Dimensions (L x W x H) mm | 7.4mm x 4.4mm |
| Fatigue life | ≥1M |
| Operating Temperature (°C) | -30-+80 |
| Resistance (Ohm) | 350 ohms |
| Resistance Tolerance | ≤±0.1% |
| Sensitivity Coefficient | 2.00-2.20 |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.005 kg |
| Strain limit | 0.02 |
| Technical Indexes | BF series |
