The NE5534 devices is high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate. This operational amplifier is compensated internally for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The device feature input-protection diodes, output short-circuit protection and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins. For the NE5534 device, a maximum limit is specified for the equivalent input noise voltage.
Note: Images for reference only.

Features:

• Small-Signal Bandwidth: 10 MHz
• Output Drive Capability: 6000, 10 VRMsat Vcc=+1
• 8 VInput Noise Voltage: 4nV/NH
• DC Voltage Gain: 100000
• AC Voltage Gain: 6000 at 10 kHz -Power Bandwidth: 200 kHz -Slew Rate: 13 V/us

Note: For more information, refer to the datasheet in attachments.

Package Includes:

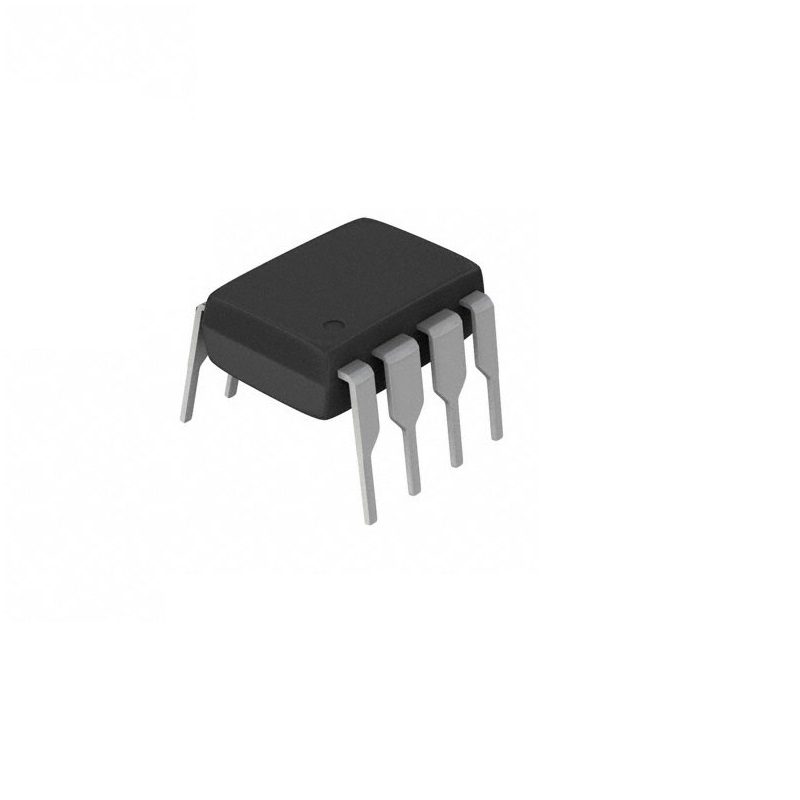

1 x NE5534-HLF-5V to 15V Low Noise Operational Amplifier IC
