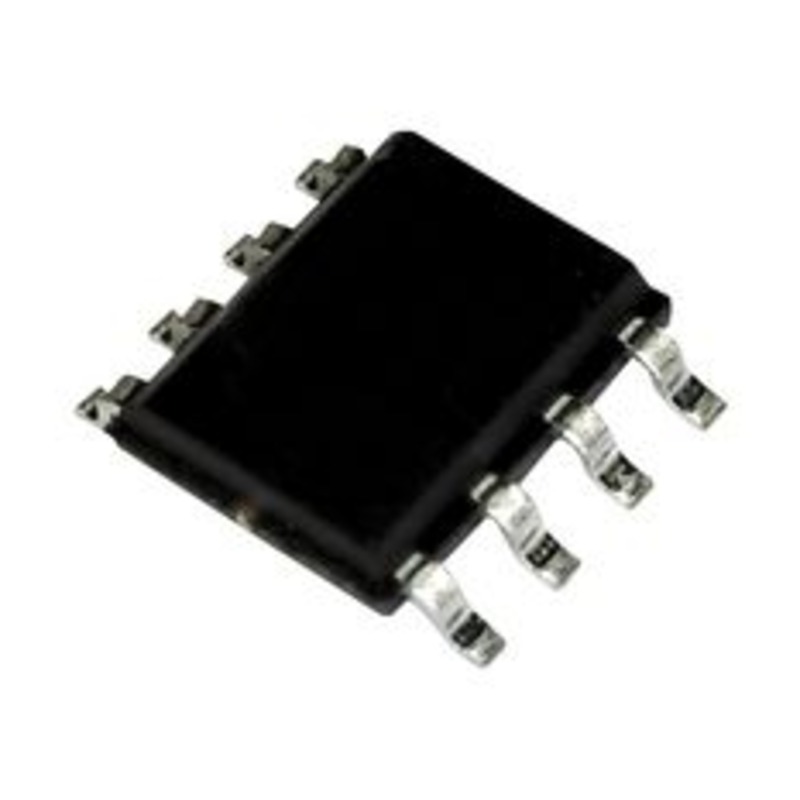

MC33078D-STMICROELECTRONICS-Operational Amplifier, Dual, 2 Amplifier, 15 MHz, 7 V/µs, ± 2.5V to ± 15V, SOIC, 8 Pins
- MPN: MC33078D
- Brand: STMICROELECTRONICS
SKU: Not Found
Brand: STMicroelectronics
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
MC33078D-STMICROELECTRONICS-Operational Amplifier, Dual, 2 Amplifier, 15 MHz, 7 V/µs, ± 2.5V to ± 15V, SOIC, 8 Pins.MC33078D is a monolithic low noise dual operational amplifier. It offers low voltage noise (4.5nV/√Hz) and high-frequency performance (15MHz gain bandwidth product, 7V/µs slew rate). In addition, this device has very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.
Note: Images for reference only.
Specifications:
No. of Channels:: 2Channels
Gain Bandwidth Product:: 15MHz
Slew Rate Typ:: 7V/µs
Supply Voltage Range:: ± 2.5V to ± 15V
IC Case / Package:: SOIC
No. of Pins:: 8Pins
Amplifier Type:: Low Noise
Input Offset Voltage:: 150µV
Input Bias Current:: 250nA
IC Mounting:: Surface Mount
Operating Temperature Min:: -40°C
Operating Temperature Max:: 105°C
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x MC33078D-STMICROELECTRONICS-Operational Amplifier, Dual, 2 Amplifier, 15 MHz, 7 V/µs, ± 2.5V to ± 15V, SOIC, 8 Pins
Technical Specifications
| Amplifier Type | Low Noise |
|---|---|
| Case/Package | SOIC |
| Gain Bandwidth Product (GBP) | 15MHz |
| IC Mounting | Surface Mount |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 150µV |
| Manufacturer | STMicroelectronics |
| No. of Channels | 2 |
| No. of Pins | 8Pins |
| Operating Temperature Max | 105°C |
| Operating Temperature Min | -40°C |
| Product Range | Multicomp Pro RJ45 Adapter |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Slew Rate Typ | 7V/µs |
| Supply Voltage Range | ± 2.5V to ± 15V |
