OLED Display

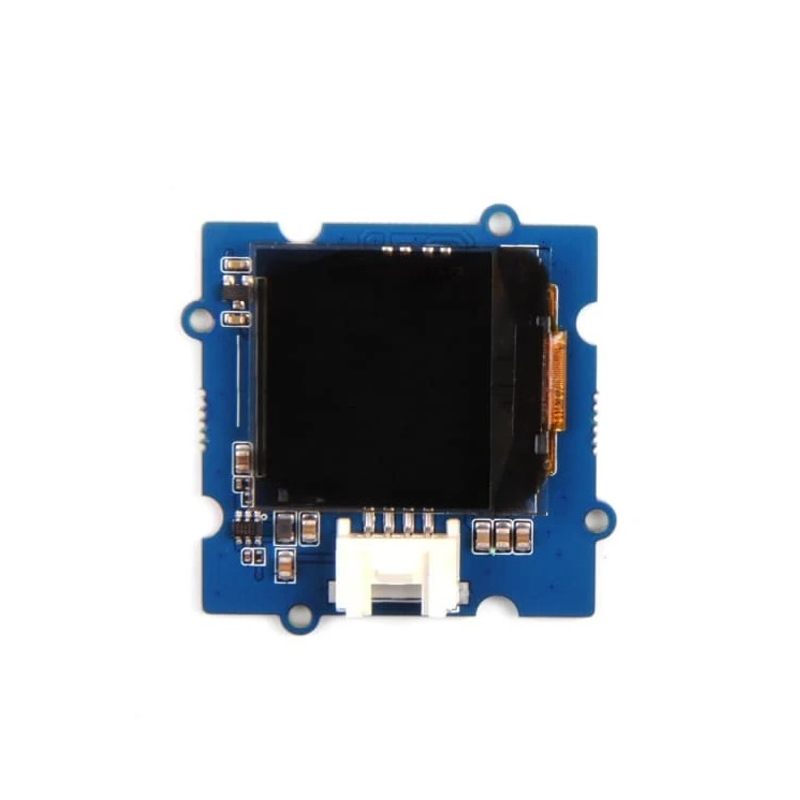

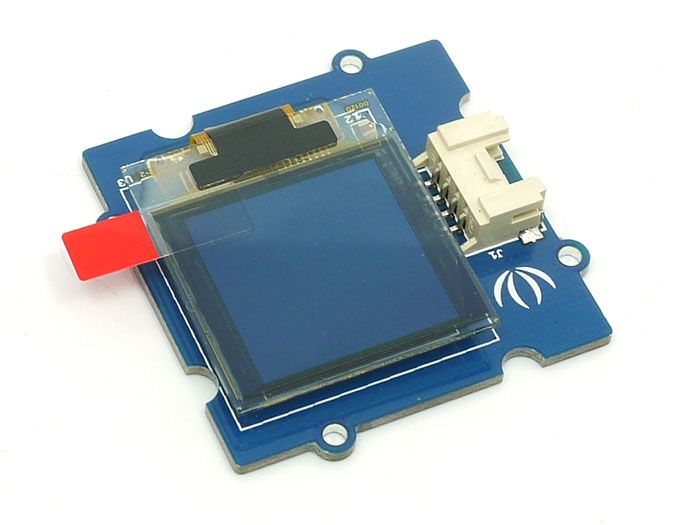

SeeedStudio Grove OLED Display 1.12”
- Operating Voltage: 3 V
- Operating Temperature Range: -40 °C ~ 70 °C
- Dot Matrix: 96×96
- OLED Display: LY120-96096
- Display Color: 16 Grayscale
- Driver Chip: SSD1327Z
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹1670.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Grove – OLED 1.12” is a 16 color grayscale 96×96 dot-matrix OLED display module with Grove compatible 4pin I2C interface. Grove – OLED 1.12″ is constructed with a 96 x 96 dot-matrix OLED module ([ LY120])and SSD1327 driver IC.
The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
Features:
- Communicate Mode: I2C
- Grayscale Display: 16 Gray shades.
- Supports both Normal and Inverse Color Display.
- Supports Continuous Horizontal Scrolling.
- Grove compatible Interface
Useful Links:
Project Links:
- Flying BeagleBone Green
- Automated Plant Watering System
- Smart Crops: Implementing IoT in Conventional Agriculture!

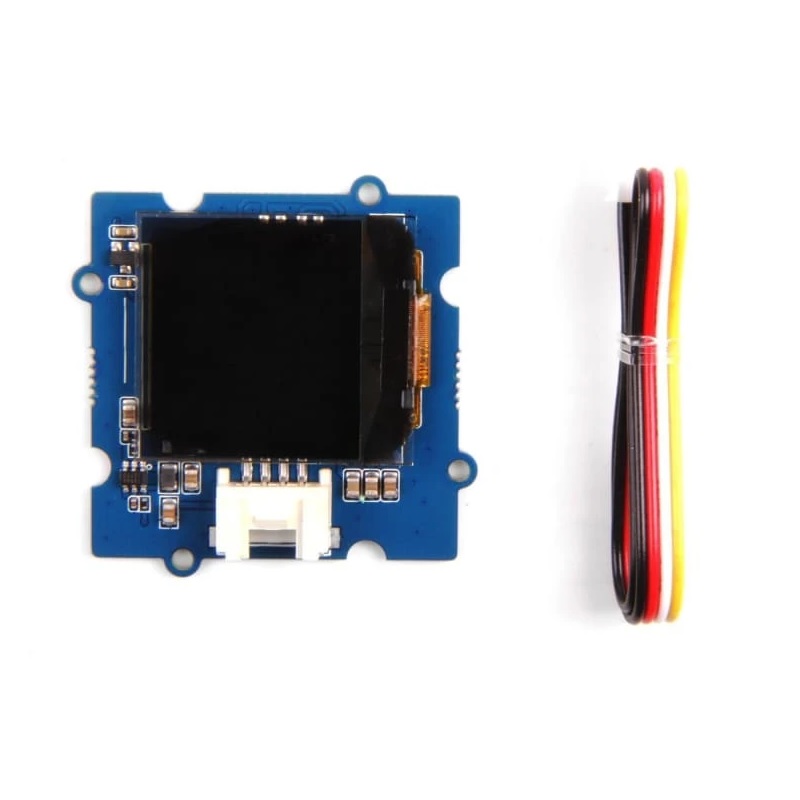

Package Includes:
1 x Grove – OLED 1.12” Display
Technical Specifications
| Display | OLED LY120-96096 |
|---|---|
| Display Color | 16 Grayscale |
| Display Size (Inch) | 1.12 |
| Dot Matrix | 96×96 |
| Driver IC | SSD1327Z |
| Height (mm) | 10 |
| Interface | I2C |
| Length (mm) | 40 |
| Model | OLED Display Module |
| Mounting Hole Diameter (mm) | 2 |
| Operating Temperature (°C) | -40 ?C ~ 70??C |
| Operating Voltage (V) | 3 V |
| Shipping Dimensions | 15 × 9 × 2 cm |
| Shipping Weight | 0.02 kg |
| Weight (g) | 16.5 |
| Width (mm) | 40 |
