OLED Display

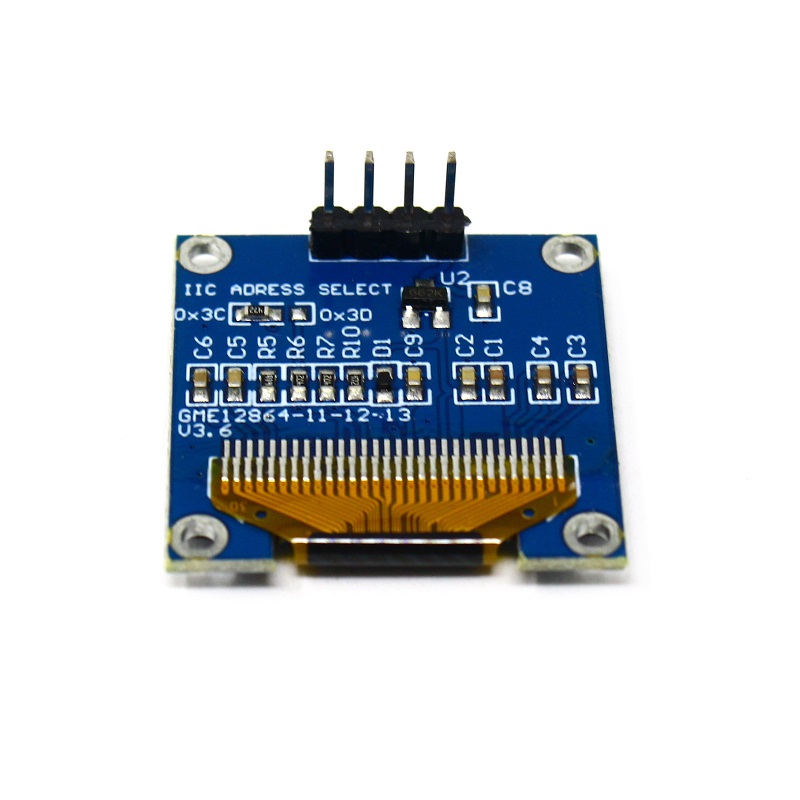

GoldenMorning 0.96 Inch I2C/IIC 4-Pin OLED Display Module -WHITE
- Size: 0.96 inch
- Resolution: 128 x 64
- Controlling Chip: SSD1306
- Display Area: 21.74 x 10.86mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 celsius
- Interface Type: IIC
- Light Color: White
SKU: Not Found
Brand: GoldenMorning
Out of stock
₹219.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This 0.96” I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

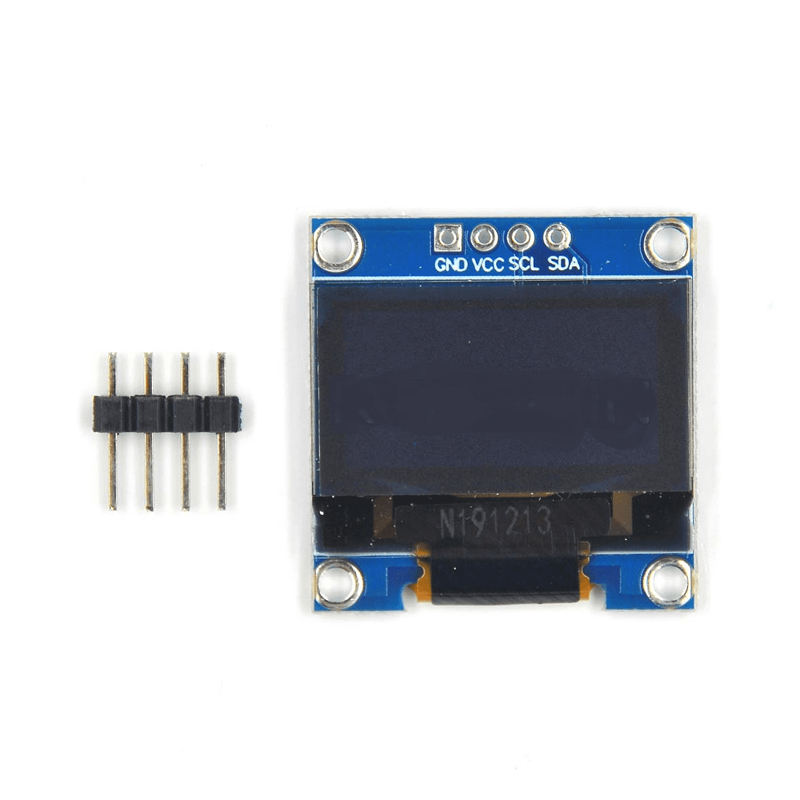

Pin Definition:
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.
Package Includes:
1 x GoldenMorning 0.96 Inch I2C/IIC 4-Pin OLED Display Module -WHITE
Technical Specifications
| Display area | 21.74 x 10.86mm |
|---|---|
| Display Size (Inch) | 0.96 |
| Height (mm) | 6 |
| Interface Type | IIC |
| Length (mm) | 27 |
| Model | OLED Display Module |
| Operating Temperature (°C) | -40º~70º Celsius |
| Operating Voltage (V) | 3.3-5V |
| Pixel Color | White |
| Shipping Dimensions | 5 × 8 × 1 cm |
| Shipping Weight | 0.01 kg |
| Weight (g) | 5 |
| Width (mm) | 27 |
