OLED Display

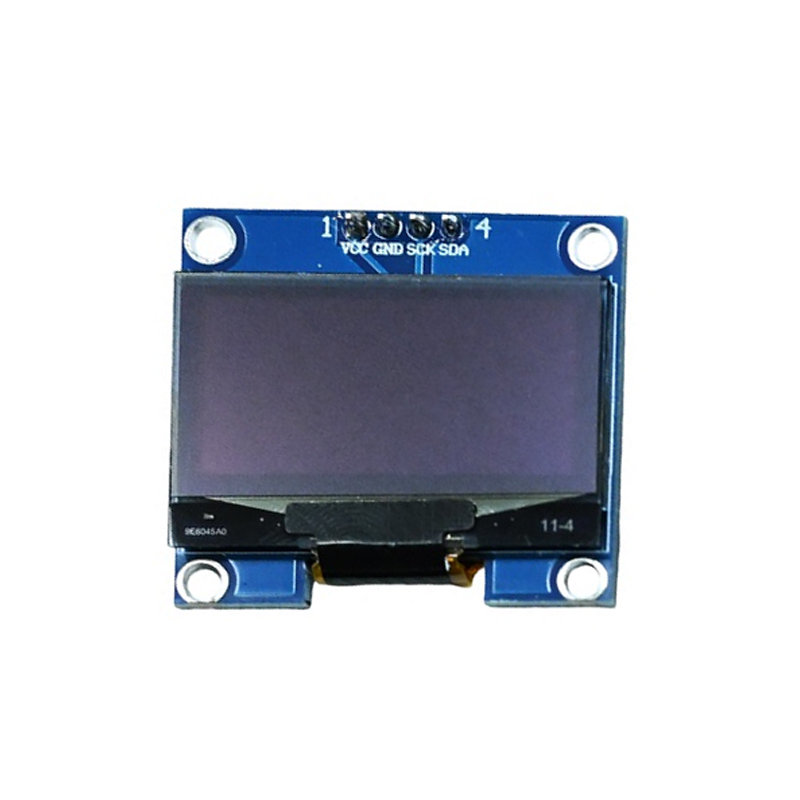

GoldenMorning 1.3 Inch I2C OLED Display Module 4pin- WHITE
- Size: 1.3 inch
- Resolution: 128 x 64
- Controlling Chip: SSH1106
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 celsius
- Interface Type: IIC
- Light Color: White
SKU: Not Found
Brand: GoldenMorning
Out of stock
₹341.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This 1.3″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Note : Actual product may vary in terms of version .

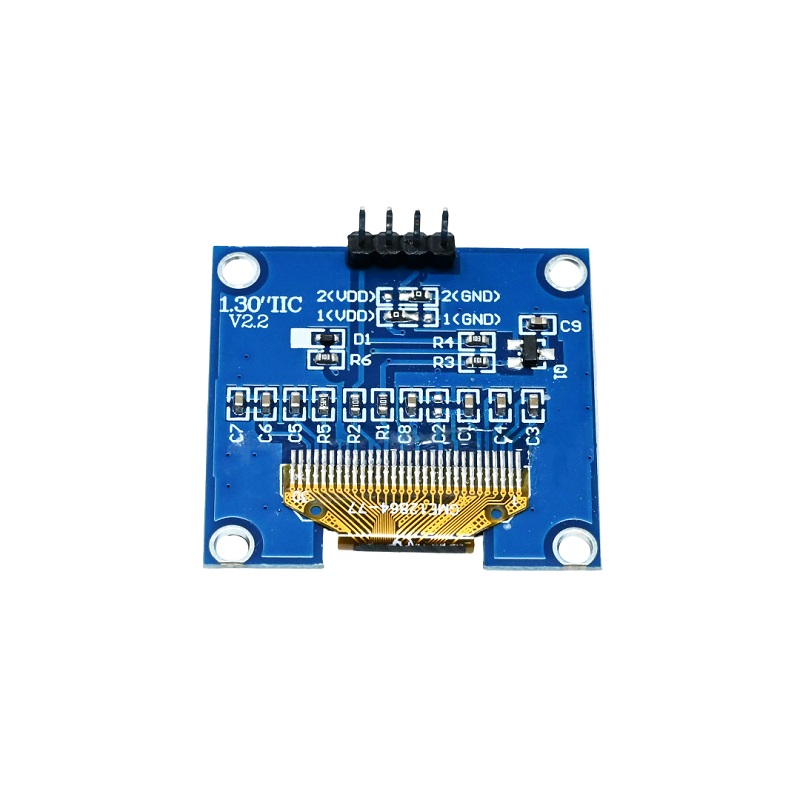

Pin Definition:
- VCC: Power positive
- GND: Power ground
- SCK: Clock wire
- SDA: Data wire.
Package Includes:
1 x GoldenMorning 1.3 Inch I2C OLED Display Module 4pin- WHITE
Technical Specifications
| Controller | SSH1106 |
|---|---|
| Display area | 34.5 x 19mm |
| Display Resolution | 128 × 64 |
| Display Size (Inch) | 1.3 |
| Height (mm) | 4 |
| Interface Type | IIC |
| Length (mm) | 35.5 |
| Model | OLED Display Module |
| Operating Temperature (°C) | -40º~70º Celsius |
| Operating Voltage (V) | 3.3-5V |
| Pixel Color | White |
| Shipping Dimensions | 8 × 6 × 2 cm |
| Shipping Weight | 0.01 kg |
| Weight (g) | 7 |
| Width (mm) | 33.5 |
