LIDAR Sensors

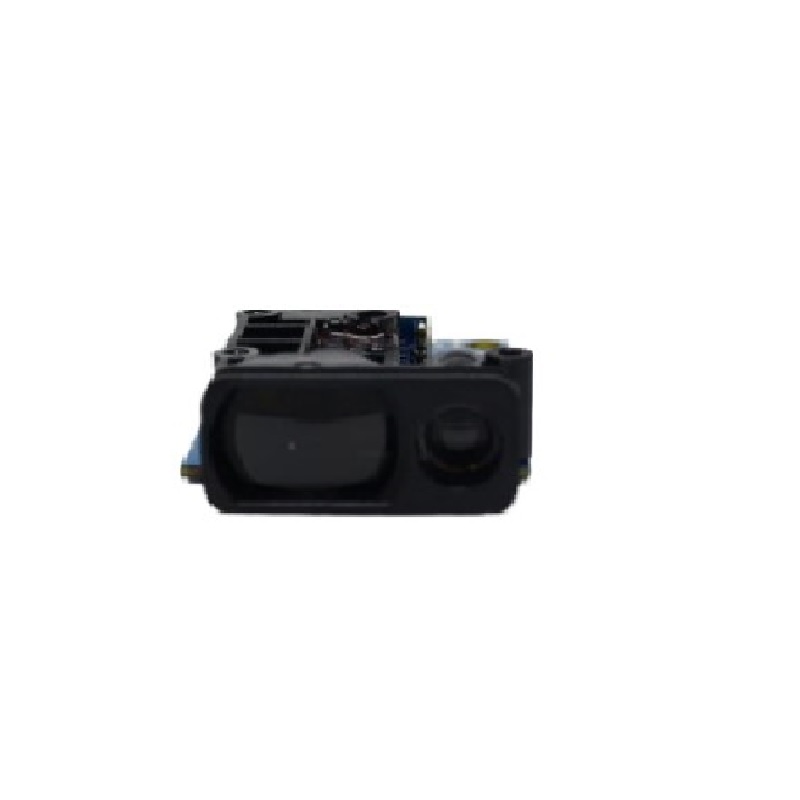

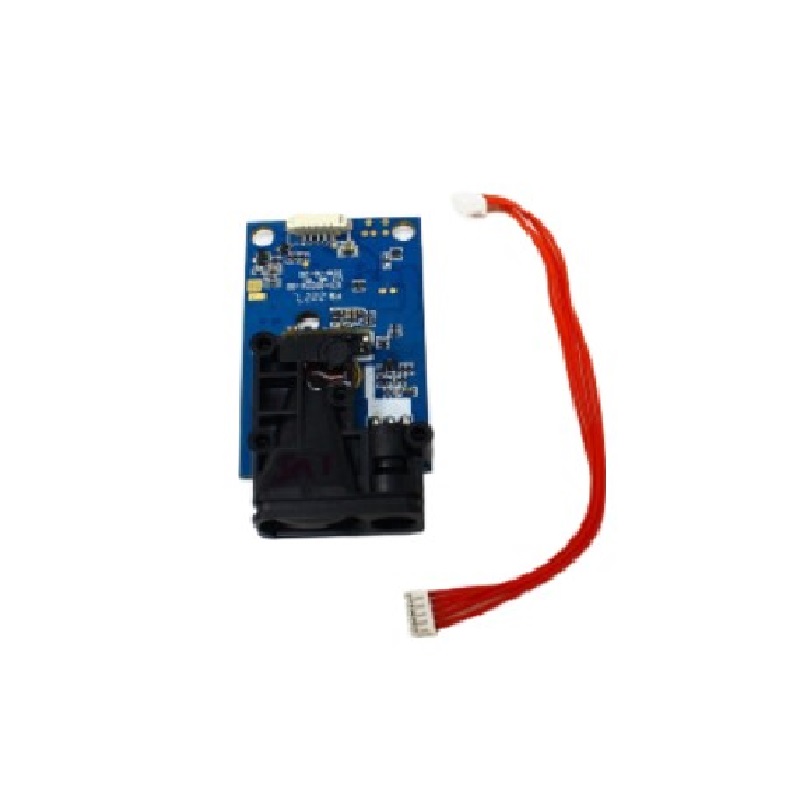

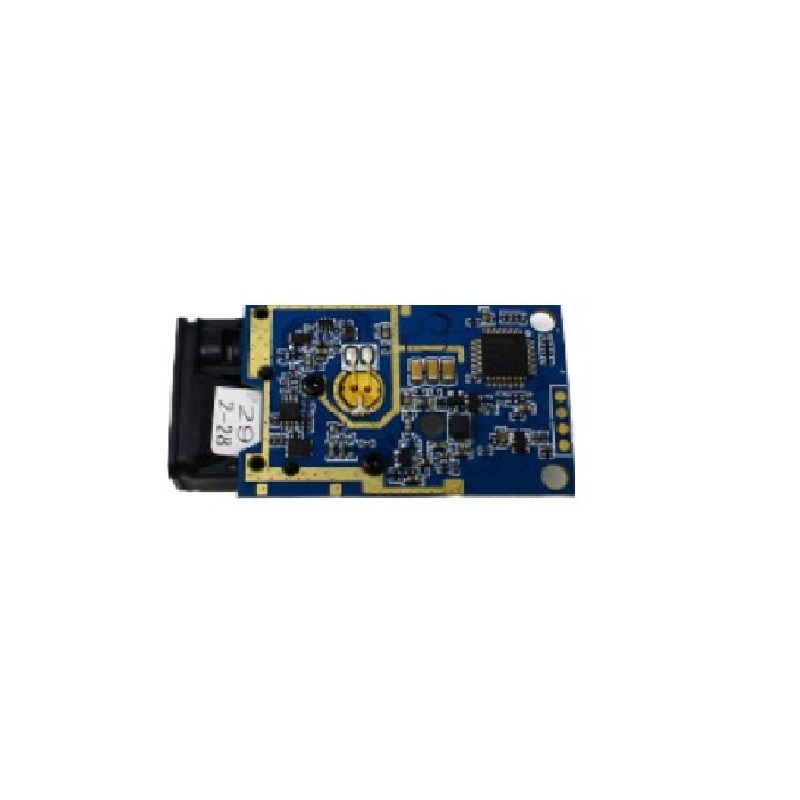

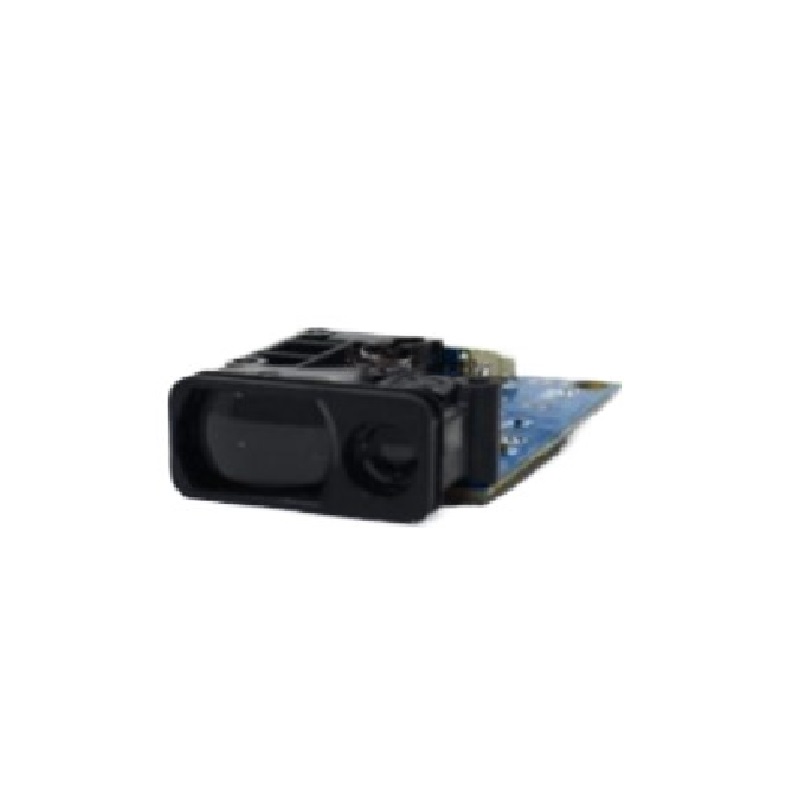

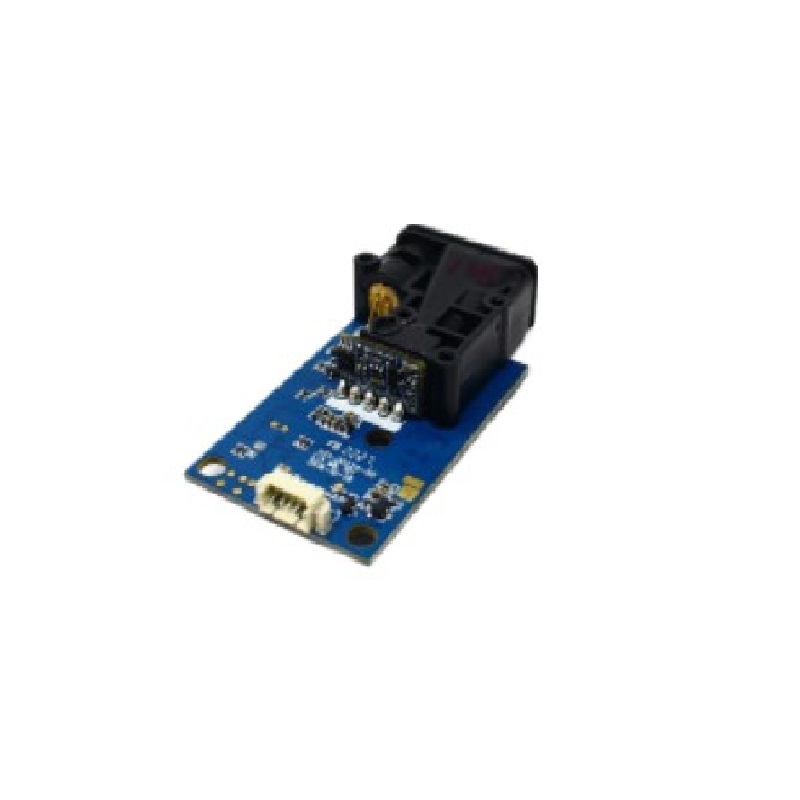

Benewake TF40-S LiDAR Sensor, (Range: 0.05~40m)
- Operating Range: 0.05-40m
- Product: LiDAR Sensor
- Accuracy: ±2mm
- Frame Rate: 5Hz
- Model: TF40-S
SKU: Not Found
Brand: Benewake
Out of stock
₹6584.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Benewake TF40-S LiDAR sensor is an advanced and versatile LiDAR (Light Detection and Ranging) device designed to provide high-precision distance measurement and object detection capabilities. This sensor is a part of Benewake’s TF series and has gained popularity across various industries due to its reliable performance and robust features.
Note: For more technical Details go through Datasheet in the attachment section
Features:
- LiDAR Technology: The TF40-S utilizes Time-of-Flight (ToF) LiDAR technology to measure distances accurately
- High Accuracy
- Compact and Lightweight
- Multi-Data Outputs
- IP65 Rating
- Wide Field of View (FoV)
- Customizable Settings
- User-Friendly Interface
Package Includes:
1 x Benewake TF40-S LiDAR Sensor, (Range: 0.05~40m)
Technical Specifications
| Accuracy | ±2mm |
|---|---|
| Avg. Current Used (mA) | ≤180mA |
| Avg. Power Consumption (W) | ≤0.6W |
| Central wavelength(nm) | 635nm |
| Communication Level | LVTTL(3.3V) |
| Data Bit | 8 bit |
| Frame rate(Hz) | 5Hz |
| Lense Viewing Angle (FOV) | <1mrad |
| Light Source | LD |
| Model | TF40-S |
| Operating Temperature (°C) | -10~50℃ |
| Peak Current (mA) | ≤180mA |
| Power Supply(V) | 3.3V |
| Range | 0.05~40m |
| Repeatability | 1σ：<2mm |
| Resolution | 1mm |
| Shipping Dimensions | 14 × 12 × 2 cm |
| Shipping Weight | 0.045 kg |
| Stop Bit | 1 bit |
| UART Baud Rate | 9600 |
