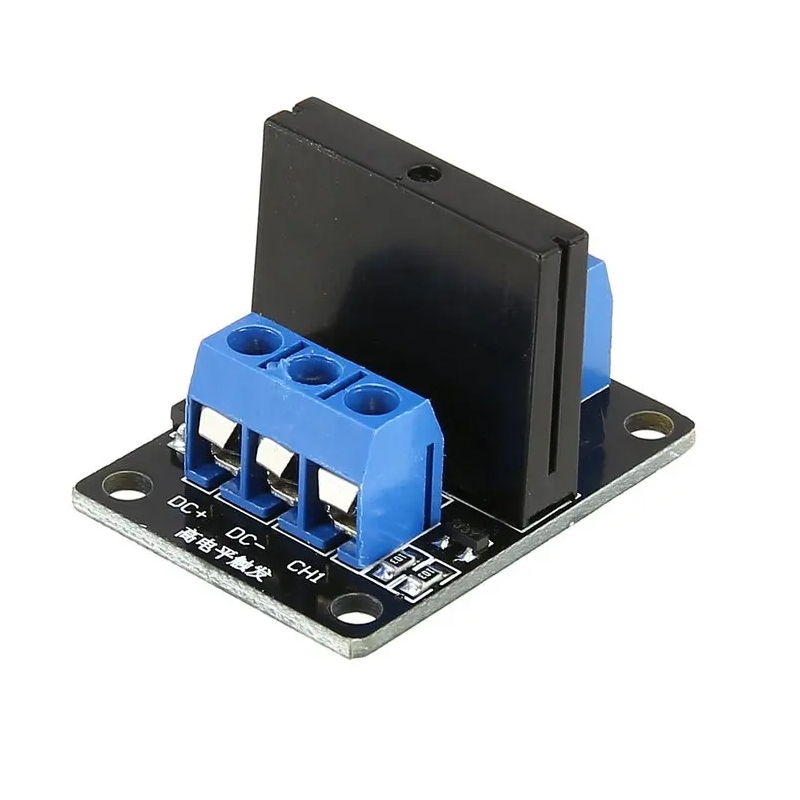

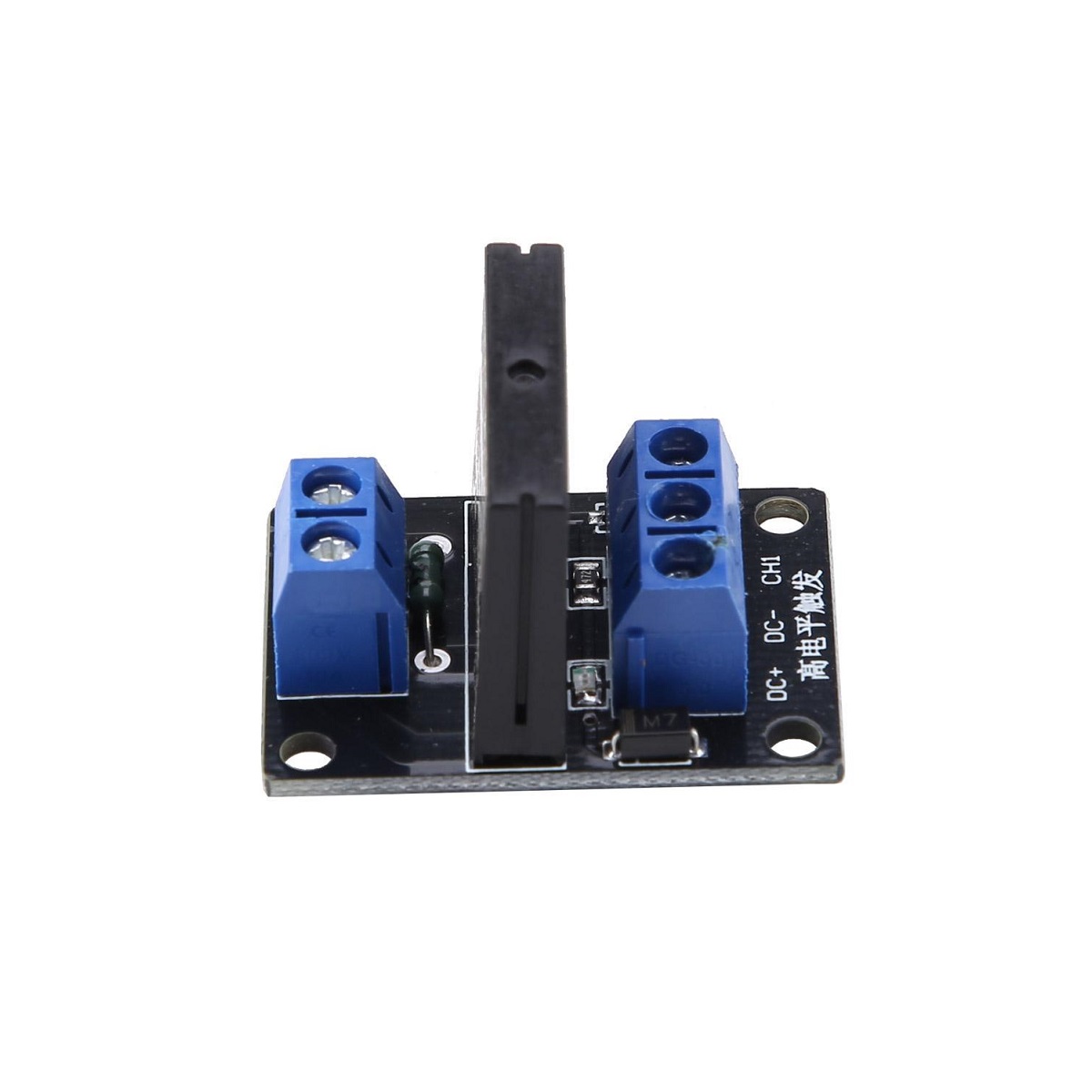

1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
- Part Number: H3MB-052D
- Power supply: 3-24VDC/160mA
- Trigger Voltage (VDC): 3-24 VDC
- Switching Voltage (VDC): 50@2A
- Isolation: Phototriac
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
It is an Ingenex 3-24VDC 50V solid state relay 2A, output with resistance type fuse 50V 2A. The input control signal voltage for the relay module is: (the state of the 0-2.5V low-level relay OFF; the state of the 3-24V high-level relay ON).
Low-level trigger refers to the signal-triggering voltage between the end and the negative electrode of the power supply is OV, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay, is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.
It has the blue KF301 terminal is connected to the line of control.
Package Includes:
1 x 1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
Technical Specifications
| Model | Relay Module |
|---|---|
| No. of Channels | 1 |
| Operating Temperature (°C) | -40 to 85 |
| Operating Voltage (VDC) | 3 to 24 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Shipping Dimensions | 8 × 7 × 1 cm |
| Shipping Weight | 0.011 kg |
| Storage Conditions | – 65 to 125℃ |
| Supply Current(mA) | 2mA |
| Switching Voltage (VAC) | 50@2A |
