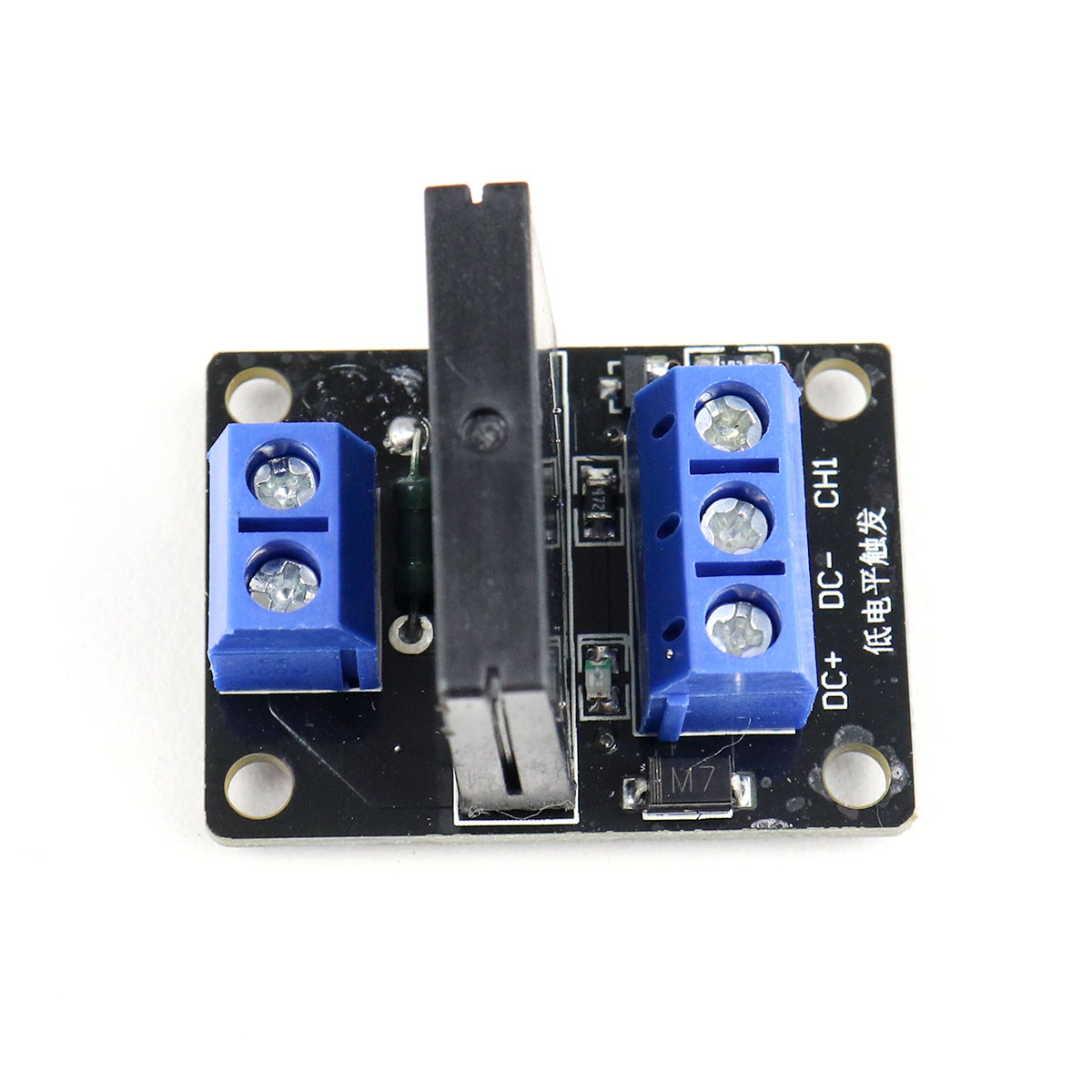

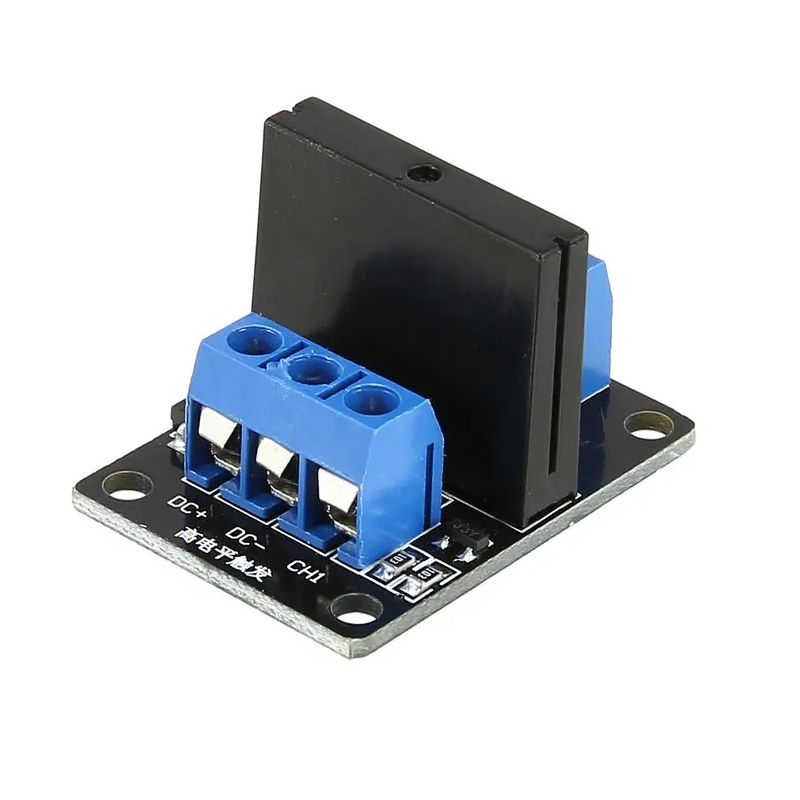

A03B 1 Road 5v Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse
- Trigger voltage: 5VDC
- Trigger current: 2mA
- Switching Voltage: 240VAC@2A
- Triggering: Low-level
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

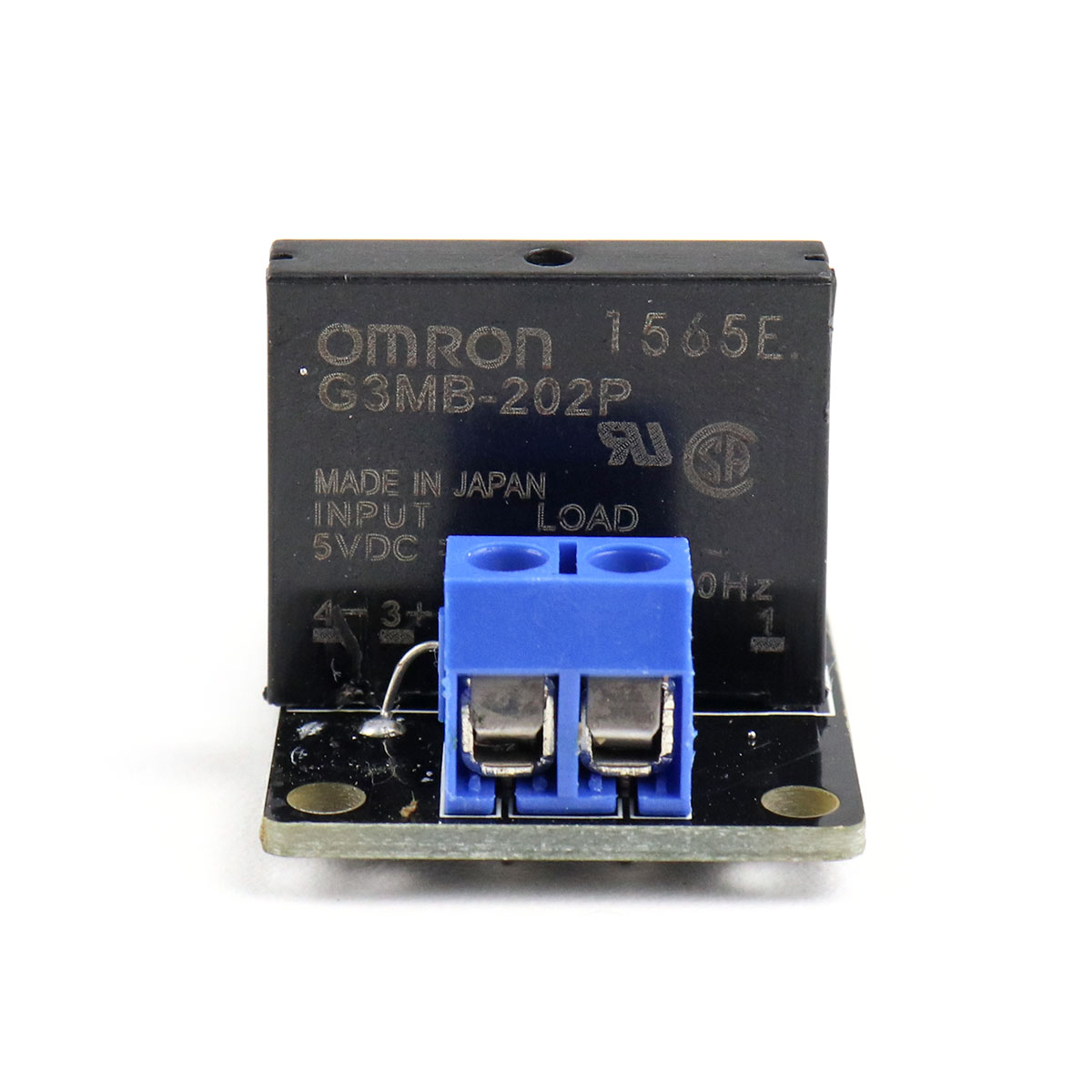

It is an OMRON 5V 240V solid state relay 2A, output with resistance type fuse 240V 2A. The input control signal voltage for the relay module is: (the state of the 0-2.5V low-level relay OFF; the state of the 3-5V high-level relay ON).
Low-level trigger refers to the signal triggering voltage between the end and the negative electrode of the power supply is OV, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay, is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.

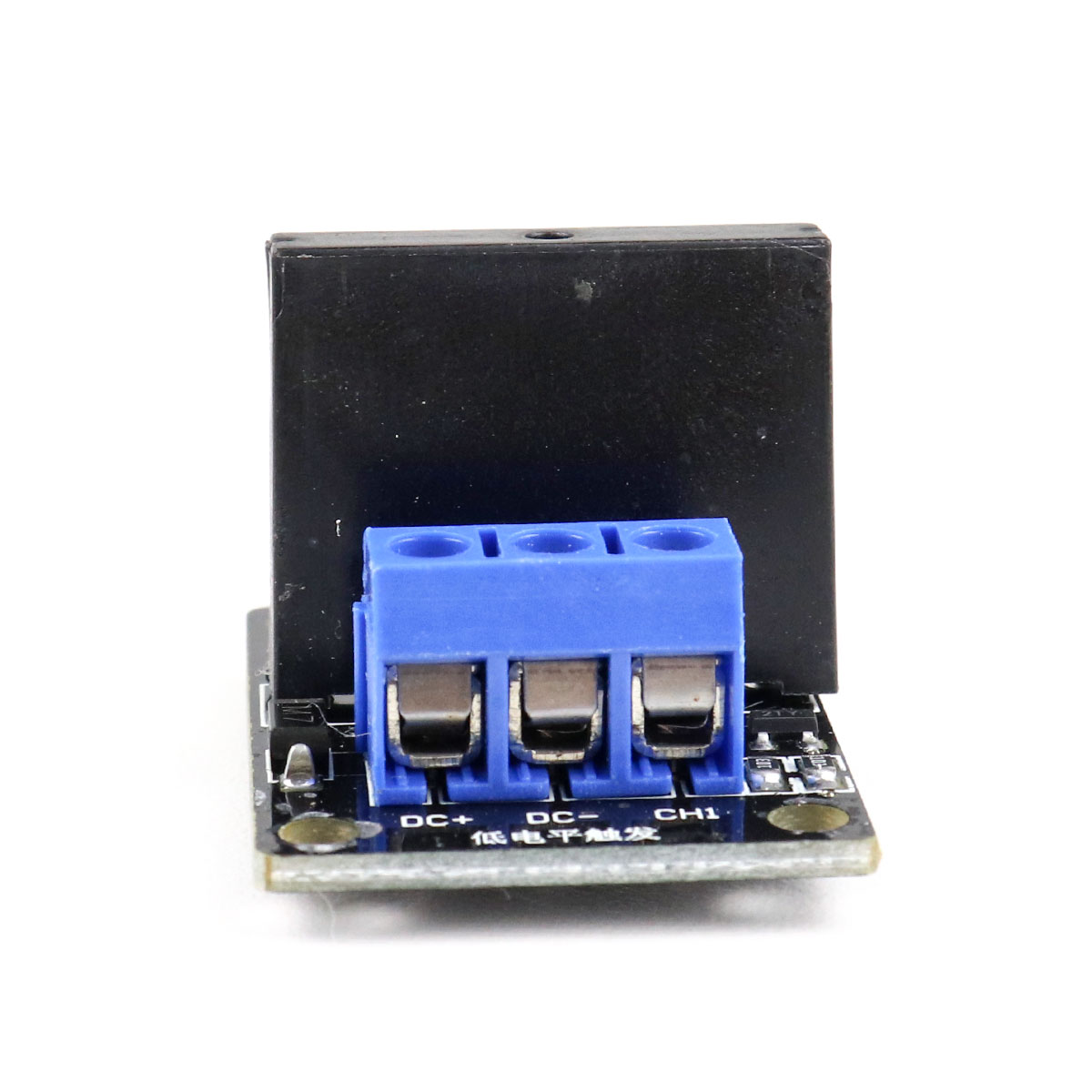

It has the blue KF301 terminal is connected to the line of control.
Package Includes:
1 x A03B 1 Road 5v Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse
Technical Specifications
| Height (mm) | 22 |
|---|---|
| Length (mm) | 34 |
| Model | Relay Module |
| Operating Temperature (°C) | -40 to 85 |
| Operating Voltage (VDC) | 5 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Shipping Dimensions | 5 × 8 × 3 cm |
| Shipping Weight | 0.015 kg |
| Storage Temperature (°C) | – 65 to 125 |
| Supply Current (A) | 2mA |
| Switching Voltage (VAC) | 240@2A |
| Trigger Voltage (VDC) | 5 |
| Weight (g) | 10 |
| Width (mm) | 26 |
