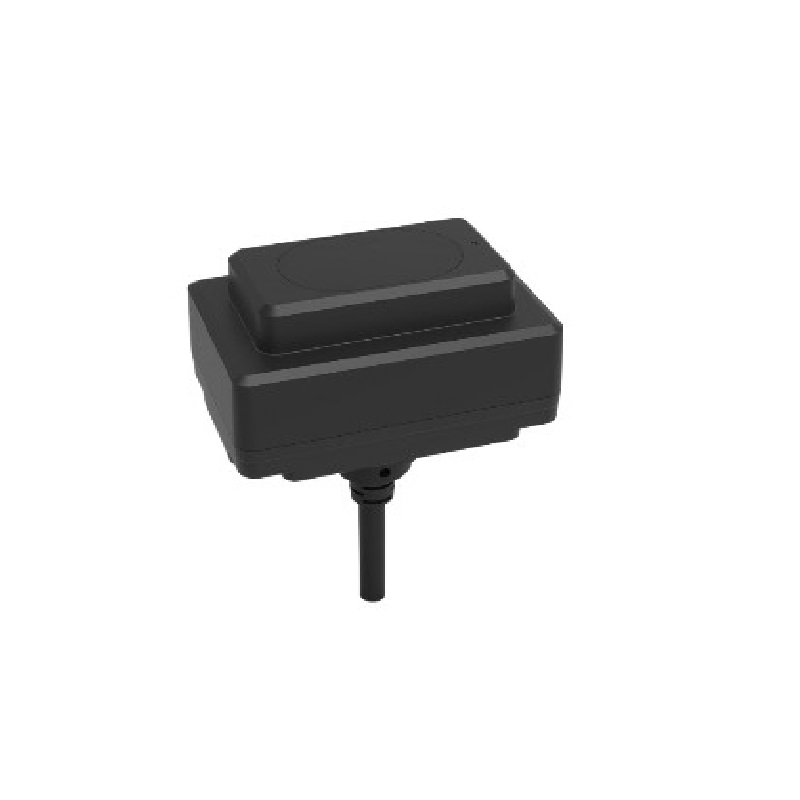

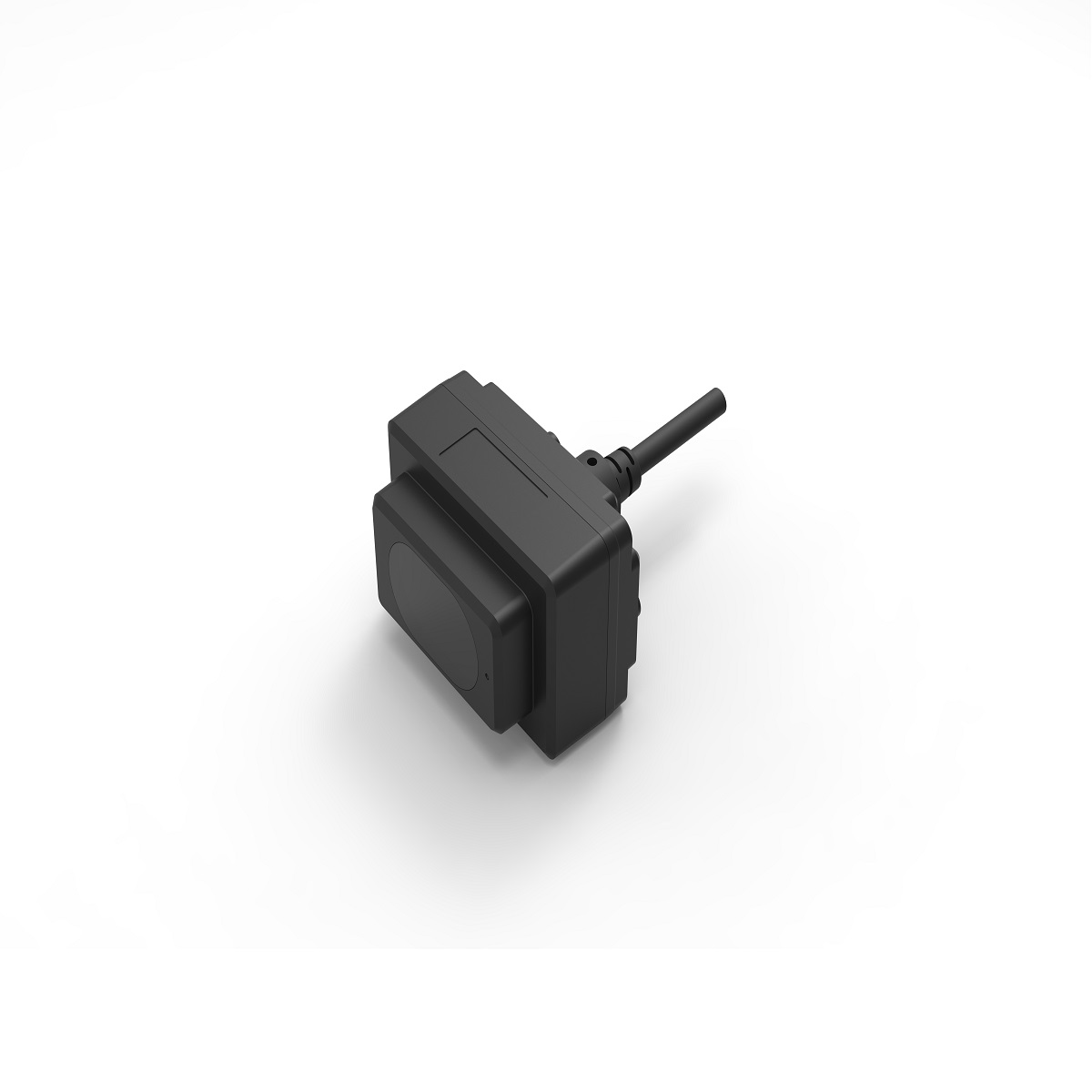

Benewake TFmini-i-CAN LiDAR Long Distance Sensor Module (Range: 0.1~12m)
- 100Hz frame rate
- 70Klux ambient light immunity
- IP65 enclosure rating
- 850nm central wavelength
- -20°C to 70°C operating temperature range
SKU: Not Found
Brand: Benewake
Out of stock
₹8025.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Benewake TFmini-i-CAN LiDAR Long Distance Sensors are updated single-point ranging LiDAR based on TFmini-S. These sensors have been optimized in communication interface, input voltage, and reverse protection. The TFmini-i sensors come with an IP65 enclosure rating, 100Hz frame rate, and 70Klux ambient light immunity. These distance sensors operate from 7V to 30V supply voltage range and -20°C to 70°C temperature range. The TFmini-i sensors suits for various industrial environments like pedestrian detection, vehicle testing, and altitude.
Features:
- 7V to 30V wide input voltage range
- Reverse protection
- CAN communication interface
Application:
- Pedestrian detection
- Vehicle testing
- Altitude measurement
Package Includes:
1 x Benewake TFmini-i-CAN LiDAR Long Distance Sensor Module (Range: 0.1~12m)
Technical Specifications
| Avg. Current Used (mA) | ≤65mA@12V |
|---|---|
| Avg. Power Consumption (W) | ≤0.8W@12V |
| Field of View (FOV) | 2 |
| Frame rate(Hz) | 1-1000Hz |
| Interface | CAN |
| Model | Long Distance Sensor |
| Operating Range | 0.1-12m |
| Operating Temperature (°C) | -20°-60 |
| Overvoltage Protection | 30V |
| Peak Current (mA) | 100mA |
| Polarity Protection (Y/N) | 40V |
| Shipping Dimensions | 12 × 10 × 5 cm |
| Shipping Weight | 0.166 kg |
| Supply Voltage (V) | 7V~30V |
| Weight (g) | 52±0.3g |
