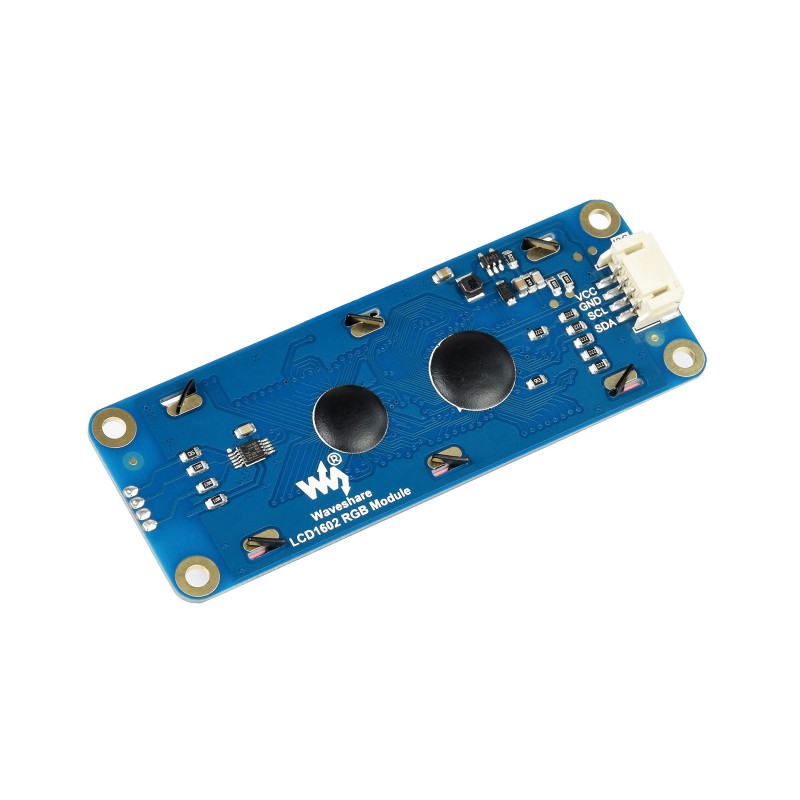

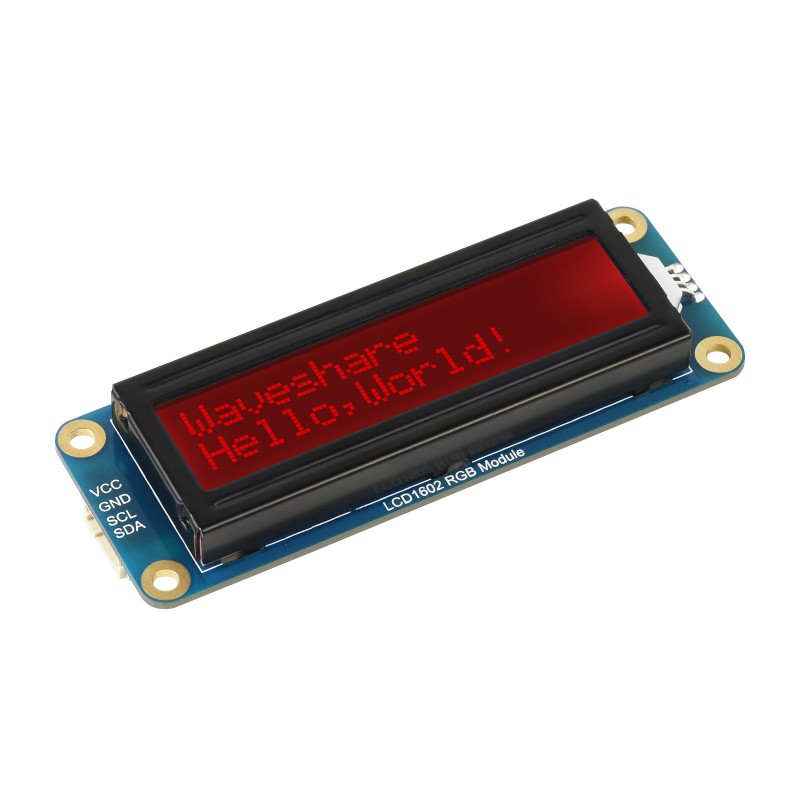

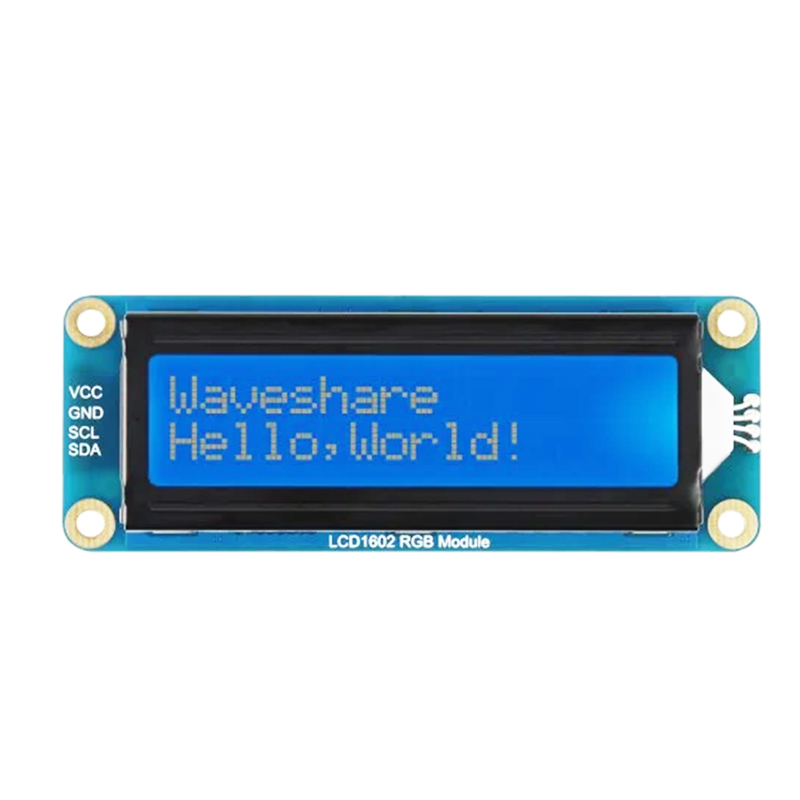

Waveshare LCD1602 RGB Module, 16×2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
- Operating Voltage: 3.3 ~ 5V
- LCD Controller: AiP31068
- Communications Interface: I2C
- RGB Driver: PCA9633
- Display Panel: character
- LCD Display Size 64.5 × 16.0mm
- Display Size 64.5 × 16.0mm
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹1163.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare LCD1602 RGB Module is a versatile and feature-rich display module that combines the convenience of a 16×2 character LCD with the added benefits of an RGB backlight and compatibility with both 3.3V and 5V power supplies. This module is designed to be easily integrated into various electronic projects, making it an ideal choice for hobbyists, makers, and professionals alike
Features:
- Incorporates character LCD panel LCD1602
- Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)
Package Includes:
1 x Waveshare LCD1602 RGB Module 16×2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
Technical Specifications
| Characters | 16 × 2 |
|---|---|
| Communication Mode | I2C |
| Dimensions (L x W x H) mm | 87.0 × 32.0 × 13.0mm |
| Display Panel | character LCD |
| Model | Waveshare LCD |
| Model No | LCD1602 |
| Operating Voltage (VDC) | 3.3 ~ 5V |
| RGB Driver | PCA9633 |
| Shipping Dimensions | 12 × 7 × 4 cm |
| Shipping Weight | 0.02 kg |
