OLED Display

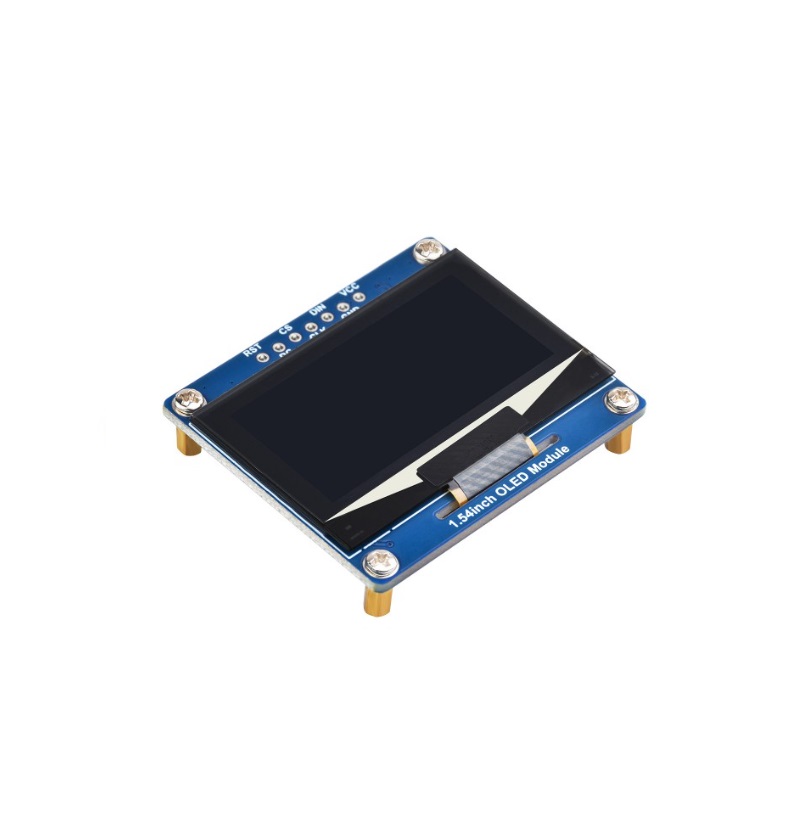

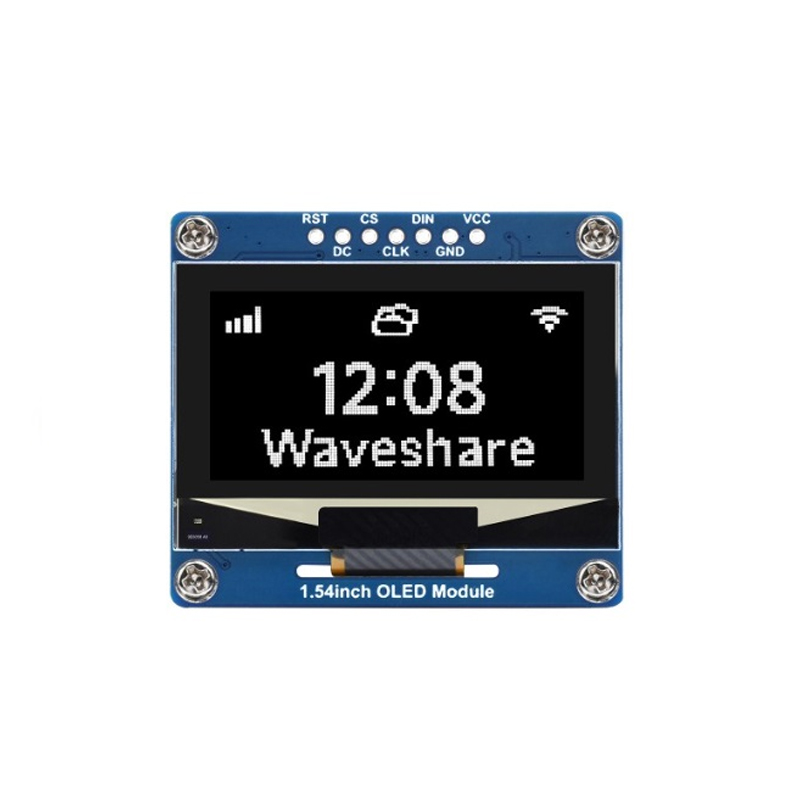

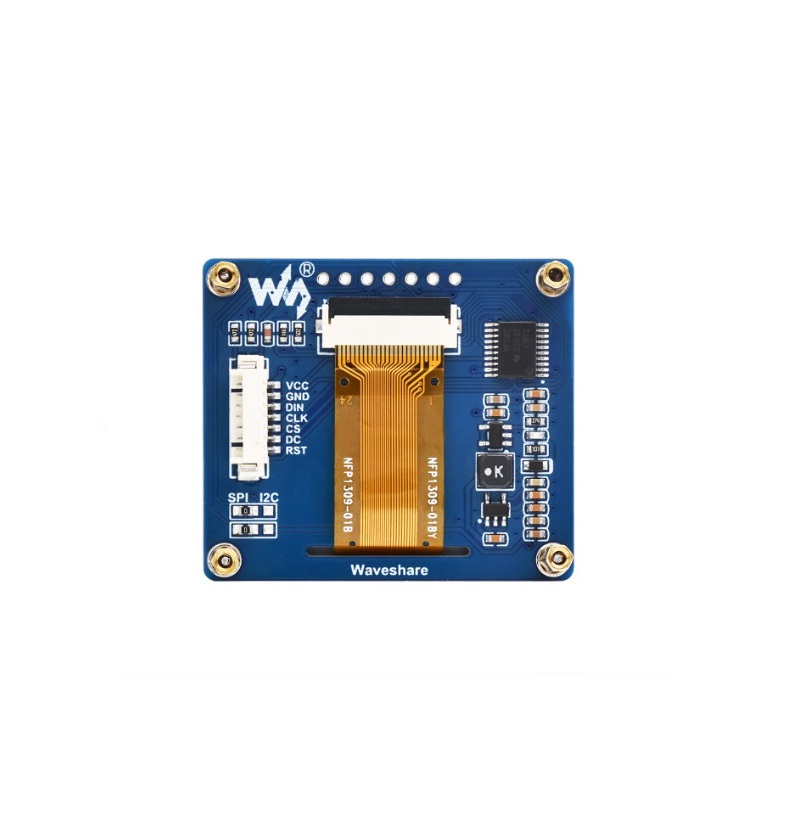

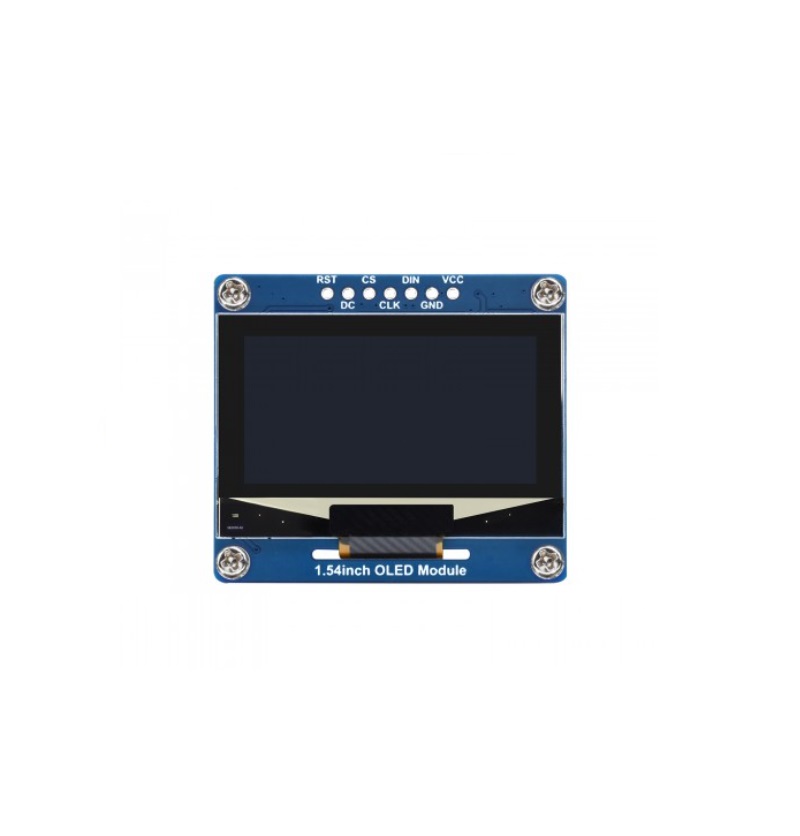

Waveshare 1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication white
- Operating Voltage: 3.3V / 5V
- Resolution: 128 × 64 pixels
- Display Size: 1.54inch
- Display Panel: OLED
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹1174.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare 1.54-inch OLED Display Module features a crisp 128×64 resolution screen in white, offering high-contrast visuals. It supports both SPI and I2C communication interfaces, providing flexibility for various projects. This compact module is perfect for displaying text, graphics, and simple animations in a wide range of applications, including IoT devices and portable gadgets, thanks to its clear and vibrant OLED display.
Features:
- 1.54-inch OLED screen
- 128×64 resolution in white
- Supports both SPI and I2C communication
- High-contrast display
- Ideal for text, graphics, and simple animations
- Compact and versatile for IoT and portable devices.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)
Package Includes:
1 x Waveshare 1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication white
Technical Specifications
| Communication Mode | 4-wire SPI / I2C |
|---|---|
| Display Color | 1.54inch OLED Module: white |
| Display Panel | OLED |
| Display Resolution | 128 × 64 |
| Display Size (Inch) | 1.54 |
| Driver | SSD1309 |
| Model | OLED Display Module |
| Operating Voltage (V) | 3.3V / 5V |
| Pixel Size | 0.25 × 0.25 mm |
| Shipping Dimensions | 7 × 5 × 2 cm |
| Shipping Weight | 0.021 kg |
