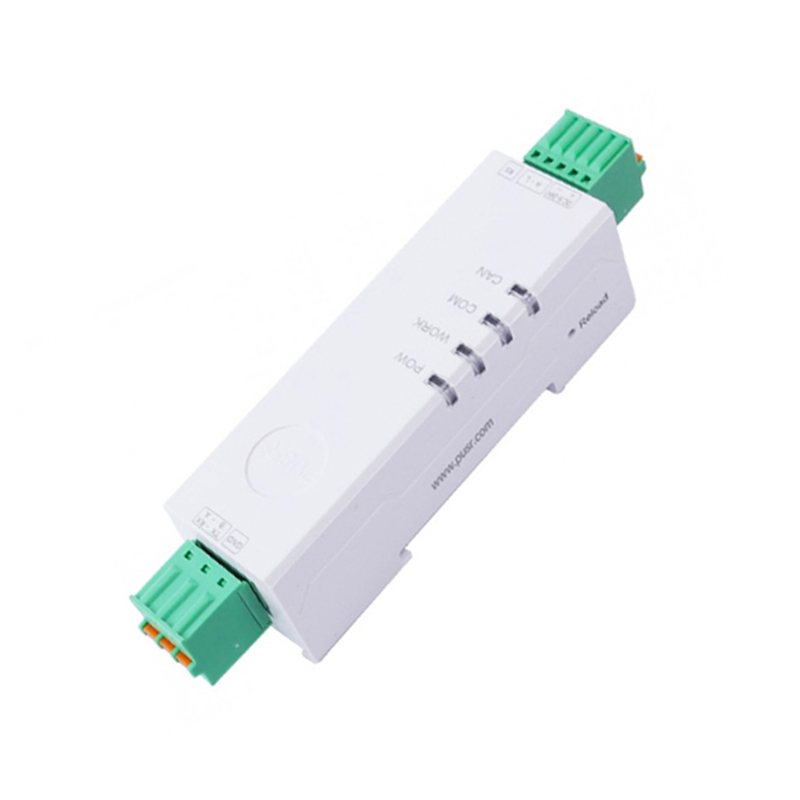

USR-CAN112 Serial/Ethernet to CAN Converter
- Automotive Electronics
- Industrial Automation
- EV Charging
- Traffic Monitoring
SKU: Not Found
Brand: PUSR
Out of stock
₹1235.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The USR-CAN112 Serial/Ethernet to CAN Converter is an ultra-small serial-to-CAN converter that supports data communication and conversion between RS232/485 and CAN interfaces. This device is compliant with CAN 2.0A and CAN 2.0B specifications and has a wide CAN baud rate of 5 Kbps~1 Mbps. And it has high EMC protection, so it can work in harsh environments and can be used in multiple scenarios like automotive electronics, EV charging, industrial automation, etc.
Features:
- Ultra-small Size: Save your space
- 5 Operating mode: Modbus RTU protocol conversion supported
- 14 sets of filters: software configurable
- User-configurable baud rate
- Wide operating temperature: -40℃ – +85℃
- High reliable: EMC protection level 3
- DIN rail mounting
- Compliant with CAN 2.0A and CAN 2.0B specification
Package Includes:
1 x USR-CAN112 Serial/Ethernet to CAN Converter
Technical Specifications
| Baud Rate | CAN: 5 kbps–1 Mbps, Serial: 600–230 400 bps |
|---|---|
| CAN | Support |
| Converter Type | Serial (RS232/485) ↔ CAN 2.0A/B bridge |
| Design | EMC level 3 |
| Ethernet | NO |
| Height (mm) | 23 |
| Item Type | Converter |
| Length (mm) | 100 |
| Model | Serial/Ethernet to CAN |
| Model No | CAN112 |
| Operating Temperature (°C) | –40 to +85 |
| Power Input | 5–24 DC |
| Shipping Dimensions | 14 × 8 × 3 cm |
| Shipping Weight | 0.06 kg |
| Weight (g) | 30 |
| Width (mm) | 25 |
| Working Mode | Modbus RTU |
