TTM DC N37 Metal Geared Motor

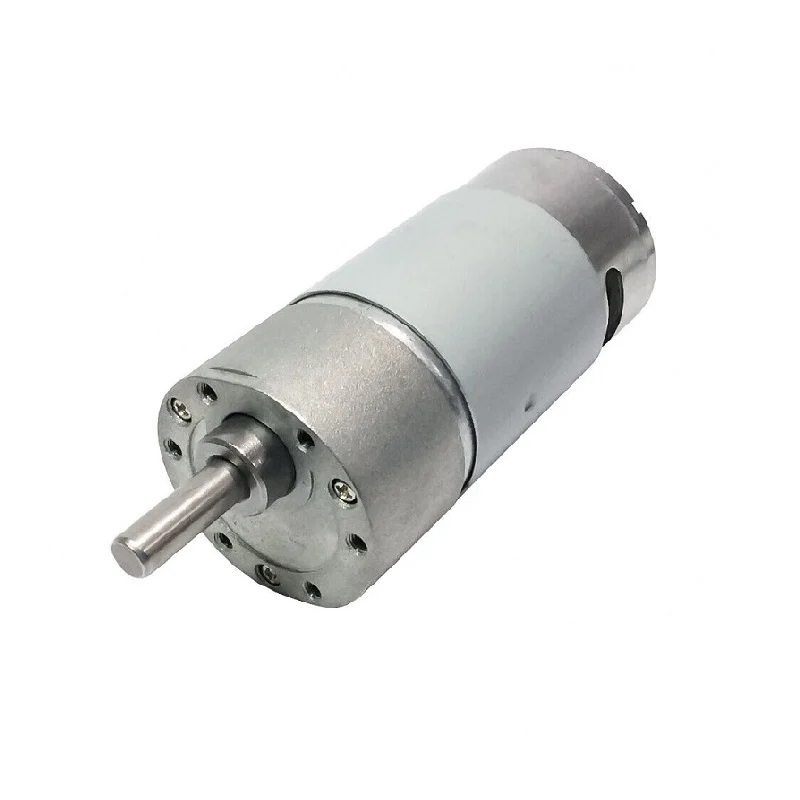

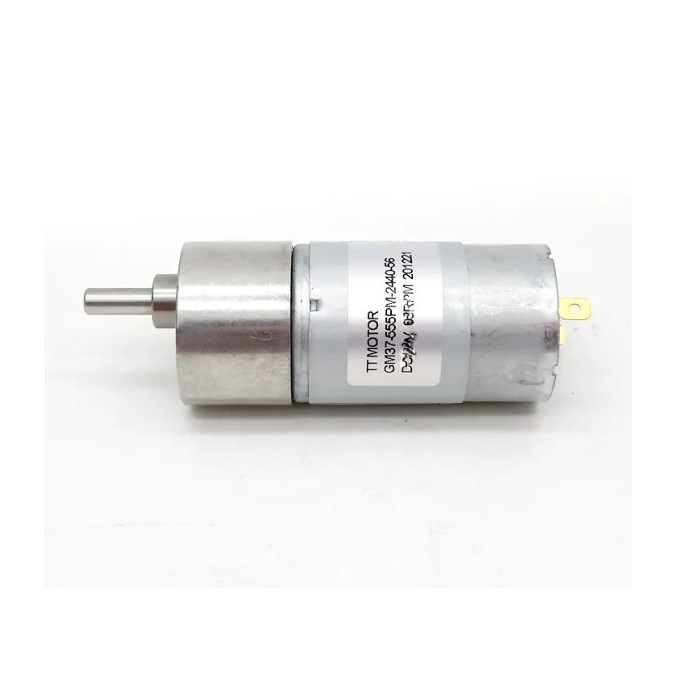

TT Motor N37 12V 480RPM Metal gear motor D type
- Model: N37
- Type: Metal gear motor D type
- RPM: 480RPM
- Voltage: 12V
SKU: Not Found
Brand: TT Motors
Out of stock
₹586.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N37 12V 480RPM Metal Gear Motor D type is a specialized motor designed to deliver controlled and efficient motion for various applications. Its combination of power, precision, and robust construction makes it an excellent choice for projects that require reliable and accurate movement. Whether used in robotics, automation, or other mechanical systems, this motor offers a dependable solution for achieving controlled motion
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607499 | N37 Metal Gear Motor D type | 12 | 50 |
| 1607496 | N37 Metal gear motor D type | 12 | 160 |
| 1607497 | N37 Metal gear Motor D Type | 12 | 250 |
| 1607498 | N37 Metal gear motor D type | 12 | 480 |
Features:
- Small-size dc gear motor with low speed and big torque
- 37mm gear motor provide 1.0Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Dc Gear motors can match the encoder,11ppr
- Reduction Ratio: 6、10、19、30、44、56、90、131、169、270、506、810
Package Includes:
1 x N37 12V 480RPM Metal gear motor D type
Technical Specifications
| Current (mA) | 90 |
|---|---|
| Item Type | N37 Metal Gear Motor |
| Operating Voltage (V) | 12 |
| Rated Speed (RPM) | 480 |
| Shaft Type | D Type |
| Shipping Dimensions | 11 × 4 × 4 cm |
| Shipping Weight | 0.3 kg |
| Torque | 200gcm |
