TTM DC N37 Metal Geared Motor

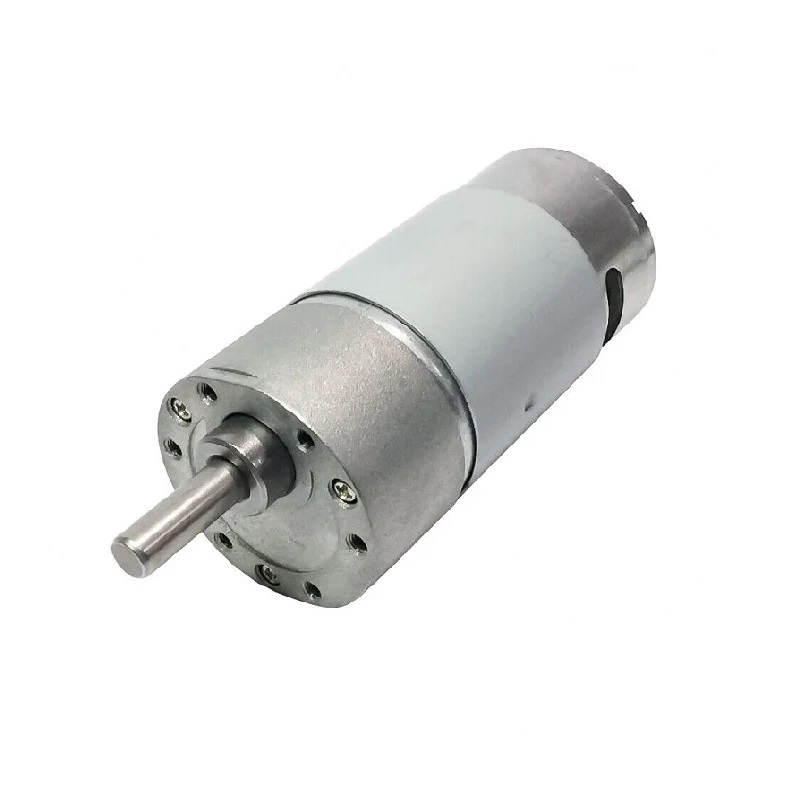

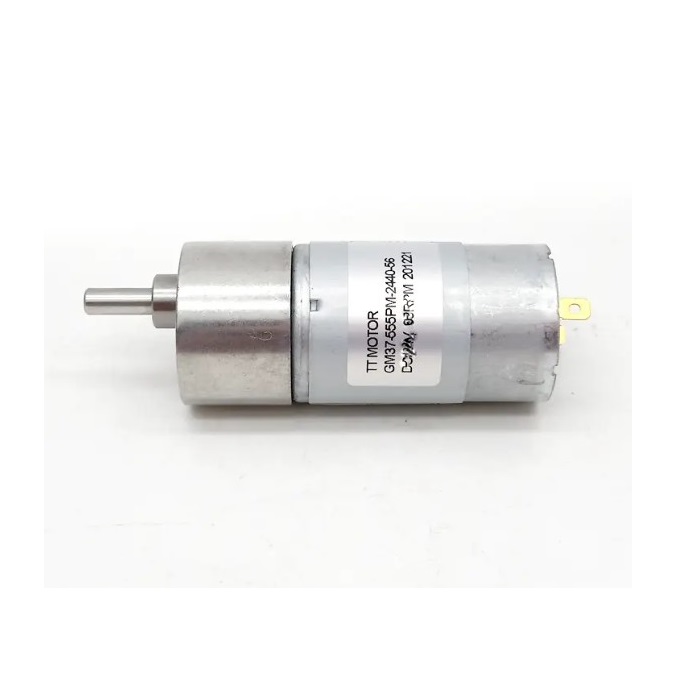

TT Motor – N37 12V 160RPM Metal gear motor D type
- Type: Metal gear motor D type
- Model: N37
- Voltage: 12V
- Current: 90mA
SKU: Not Found
Brand: TT Motors
Out of stock
₹564.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N37 12V 160RPM Metal Gear Motor D type is a precision-engineered motor designed to provide reliable and controlled motion in various applications. With its combination of power, durability, and efficient gear design, this motor is well-suited for tasks that require consistent and accurate movement, making it a valuable asset in robotics, automation, and other projects where controlled motion is essential.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607499 | N37 Metal Gear Motor D type | 12 | 50 |
| 1607496 | N37 Metal gear motor D type | 12 | 160 |
| 1607497 | N37 Metal gear Motor D Type | 12 | 250 |
| 1607498 | N37 Metal gear motor D type | 12 | 480 |
Features:
- Small-size dc gear motor with low speed and big torque
- 20mm gear motor provides 0.3Nm torque and more reliable
- Suitable to small diameter, low noise, and big toque application
- Dc Gear motors can match the encoder,3ppr
- Reduction Ratio: 29、31、56、73、78、107、140、182、268、349、456、488
Package Includes:
1 x N37 12V 160RPM Metal gear motor D type
Technical Specifications
| Current (mA) | 90 |
|---|---|
| Item Type | N37 Metal Gear Motor |
| Operating Voltage (V) | 12 |
| Rated Speed (RPM) | 160 |
| Shaft Type | D Type |
| Shipping Dimensions | 11 × 4 × 4 cm |
| Shipping Weight | 0.3 kg |
| Torque | 10gcm |
