TTM DC N20 Metal Geared Motor with Encoder

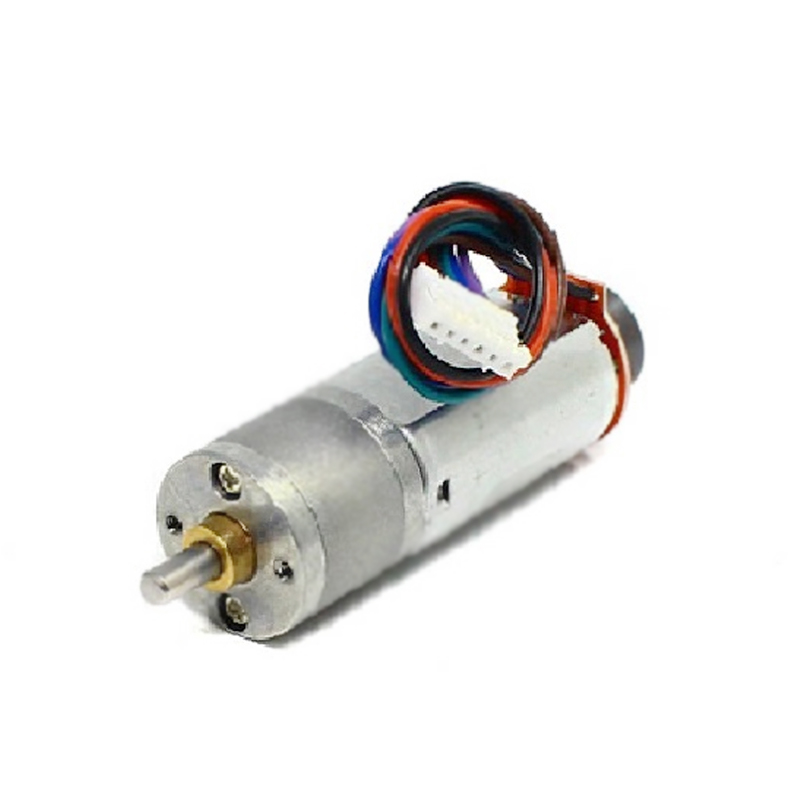

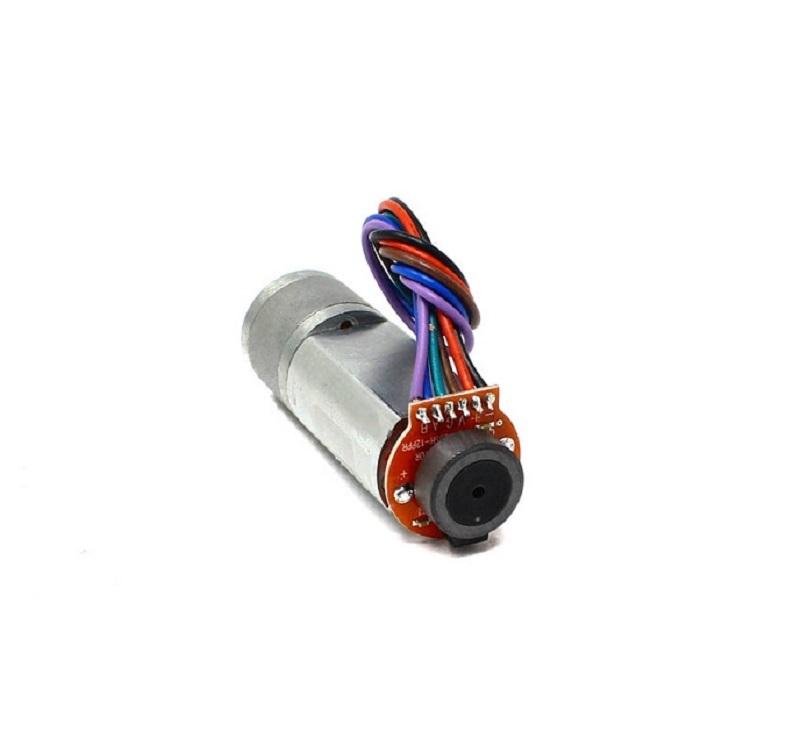

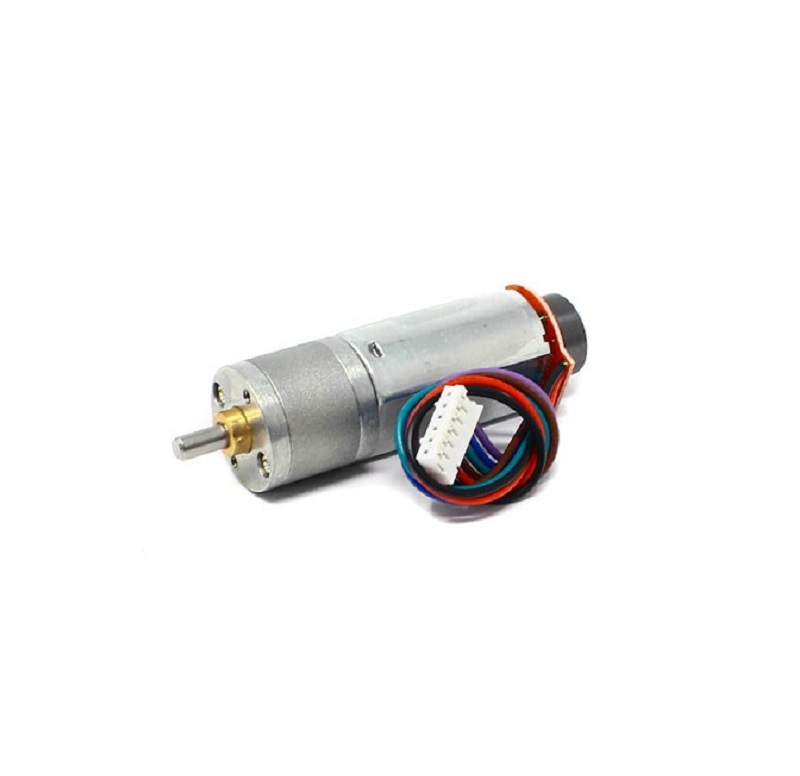

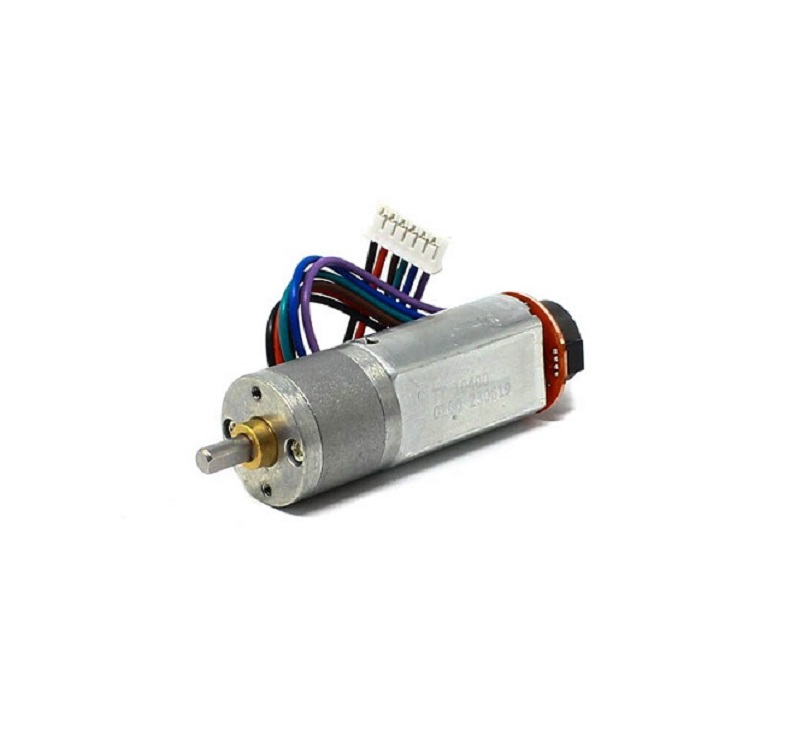

TT Motor – N20 24V 90RPM Metal Gear Motor With Encoder D Type Shaft
- Model: N20
- Type: Metal Gear Motor With Encoder D-Type Shaft
- Operating Voltage: 24 V
- Rated: 90RPM
SKU: Not Found
Brand: TT Motors
Out of stock
₹399.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N20 24V 90RPM Metal Gear Motor with Encoder is a compact and powerful motor designed for precision applications. It features a robust metal gear mechanism that ensures durability and efficient power transmission. The integrated encoder (D type) provides accurate feedback for monitoring and controlling motor speed and position. With a voltage rating of 24V, this motor offers a smooth operation at a speed of 90 RPM, making it ideal for projects that require reliable and controlled motion in a compact form factor.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607480 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 52 |
| 1607483 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 55 |
| 1607486 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 65 |
| 1607484 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 90 |
| 1607487 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 125 |
| 1607478 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 125 |
| 1607479 | N20 Metal gear Motor With Encoder D type | 12 | 135 |
| 1607481 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 175 |
| 1607485 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 240 |
| 1607482 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 340 |
Features:
- N20 24V 90RPM metal gear motor
- Includes D-type encoder
- Compact and durable design
- Precise speed and position control
- Ideal for precision projects
- Reliable and efficient motion
Package Includes:
1 x N20 24V 90RPM Metal Gear Motor With Encoder D Type Shaft
Technical Specifications
| Length (mm) | 60 |
|---|---|
| Operating Voltage (V) | 24 |
| Rated Speed (RPM) | 90 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 8 |
| Shaft Type | D Type |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.063 kg |
| Weight (g) | 61 |
