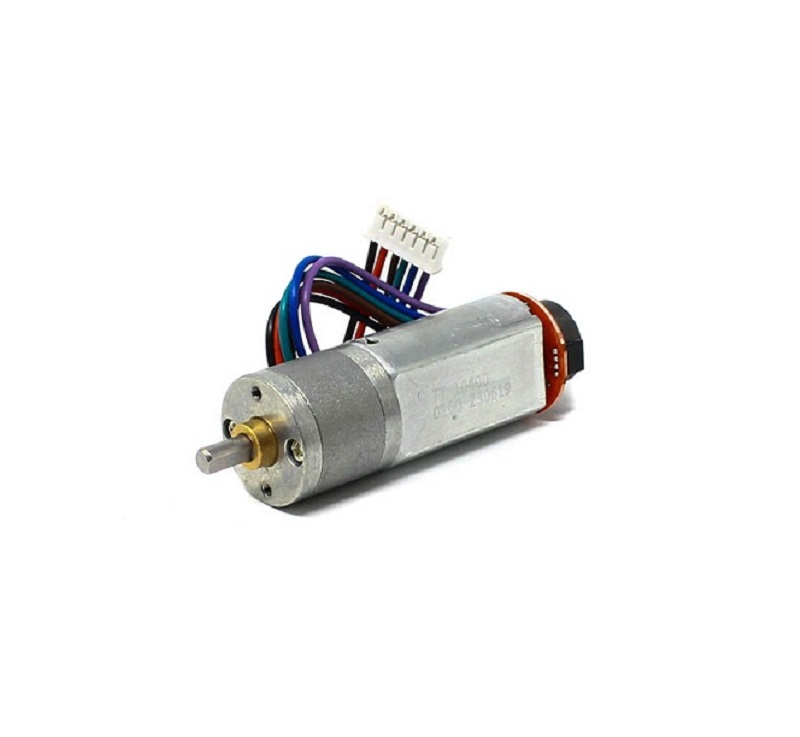

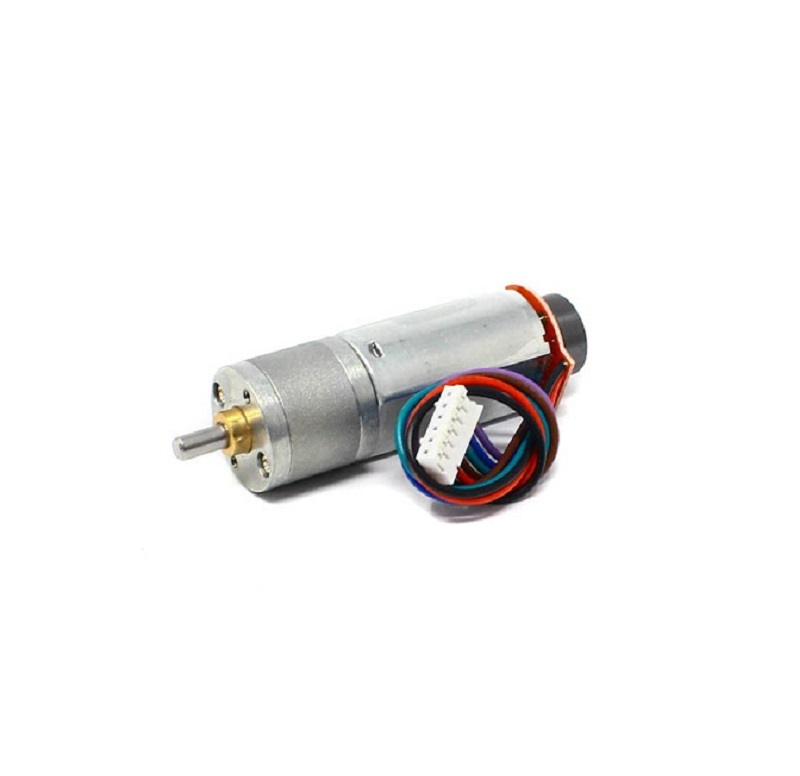

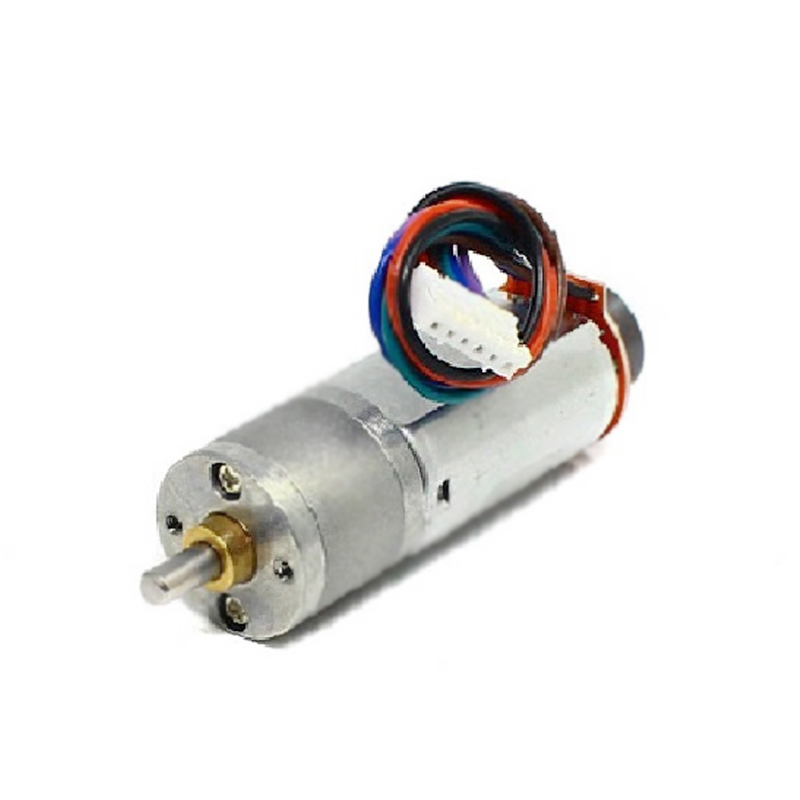

TTM DC N20 Metal Geared Motor with Encoder
TT Motor – N20 24V 340RPM Metal Gear Motor With Encoder D Type Shaft
- Model: N20
- Type: Metal Gear Motor With Encoder D-Type Shaft
- Operating Voltage: 24V
- Rated RPM: 340
SKU: Not Found
Brand: TT Motors
Out of stock
₹429.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The N20 24V 340RPM Metal Gear Motor with D-Type Encoder delivers precise and robust performance. Its sturdy metal gears ensure efficient power transmission and durability. Operating at 24V with a speed of 340 RPM, the motor is equipped with a D-type encoder for accurate rotation monitoring. This motor is well-suited for applications demanding reliable motion control and position feedback, such as robotics, automation, and electronics projects that require accuracy and consistency.
Explore and select from all variants that matches to your requirements:
| SKU | Name | Voltage(V) | RPM |
| 1607480 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 52 |
| 1607483 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 55 |
| 1607486 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 65 |
| 1607484 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 90 |
| 1607487 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 125 |
| 1607478 | N20 Metal Gear Motor With Encoder D Type Shaft | 12 | 125 |
| 1607479 | N20 Metal gear Motor With Encoder D type | 12 | 135 |
| 1607481 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 175 |
| 1607485 | N20 Metal Gear Motor With Encoder D Type Shaft | 6 | 240 |
| 1607482 | N20 Metal Gear Motor With Encoder D Type Shaft | 24 | 340 |
Features:
- N20 24V 340RPM Metal Gear Motor

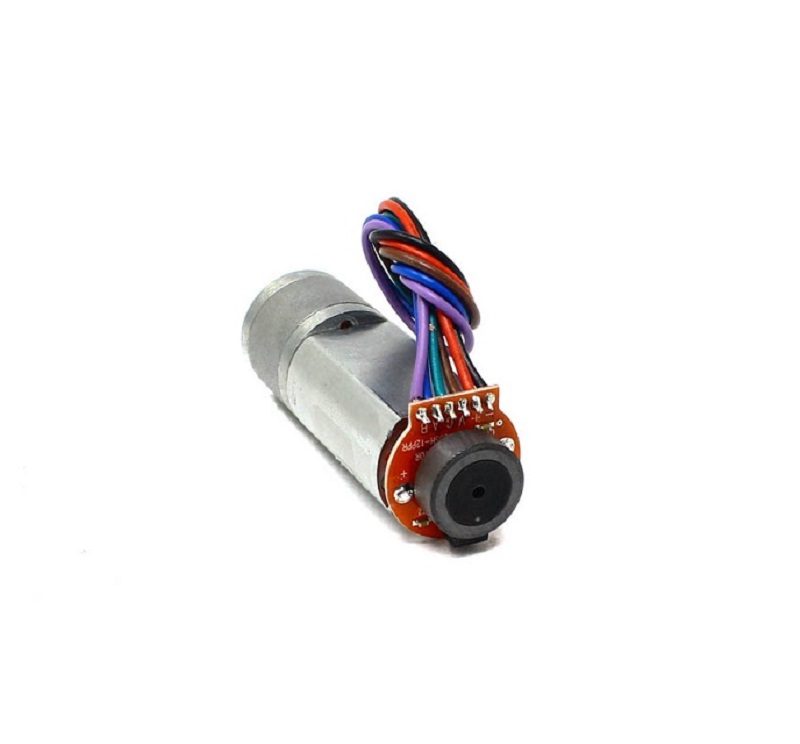

- Includes D-Type Encoder
- Sturdy metal gears for durability
- Operating voltage: 24V
- Speed: 340 RPM
- Ideal for robotics, automation, and projects needing precise motion control and feedback.
Package Includes:
1 x N20 24V 340RPM Metal Gear Motor With Encoder D Type Shaft
Technical Specifications
| Length (mm) | 58 |
|---|---|
| Operating Voltage (V) | 24 |
| Rated Speed (RPM) | 340 |
| Shaft Diameter (mm) | 3.4 |
| Shaft Length (mm) | 8 |
| Shaft Type | D Type |
| Shipping Dimensions | 10 × 8 × 2 cm |
| Shipping Weight | 0.061 kg |
| Weight (g) | 59 |
