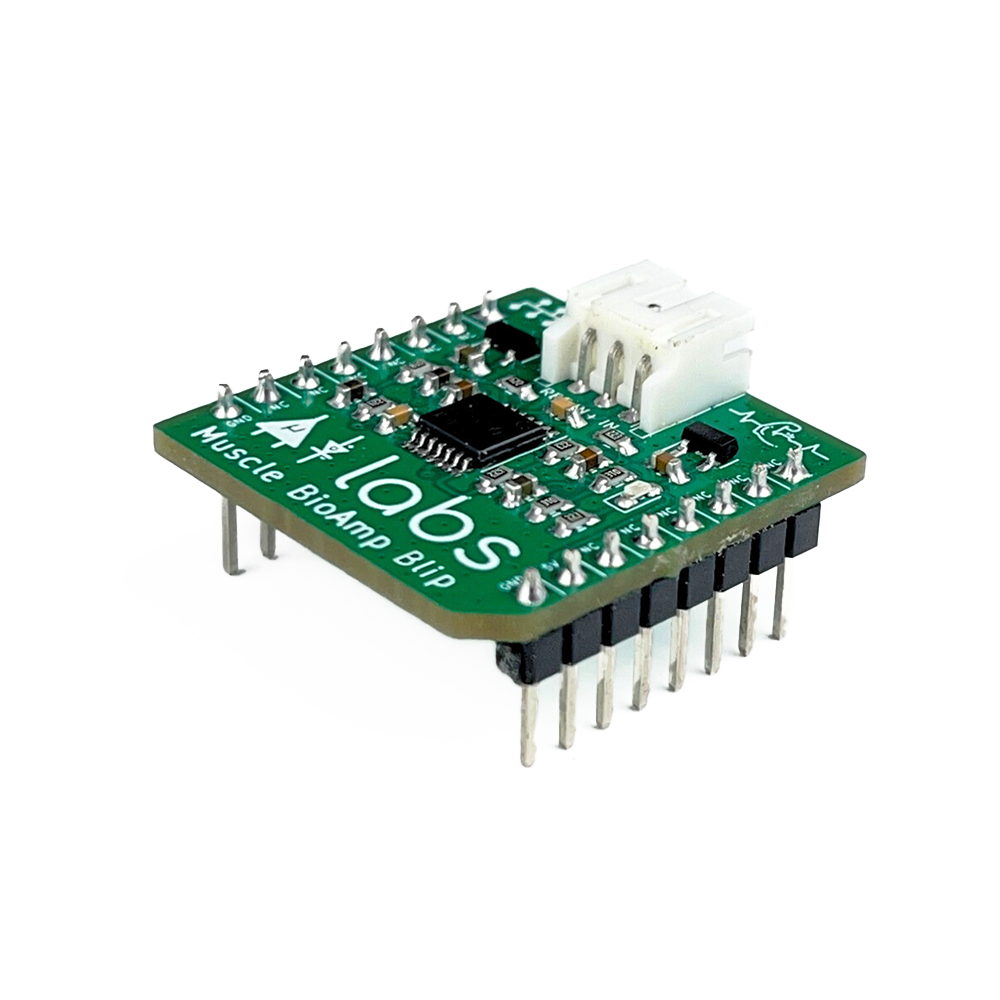

Muscle BioAmp Blip is a single channel mikroBUS™ compatible ElectroMyography (EMG) sensor for precise muscle signal recording. It allows you to add the EMG functionality to your projects at ease. You can either connect it to any mikroBUS™ port or even a breadboard to get started.

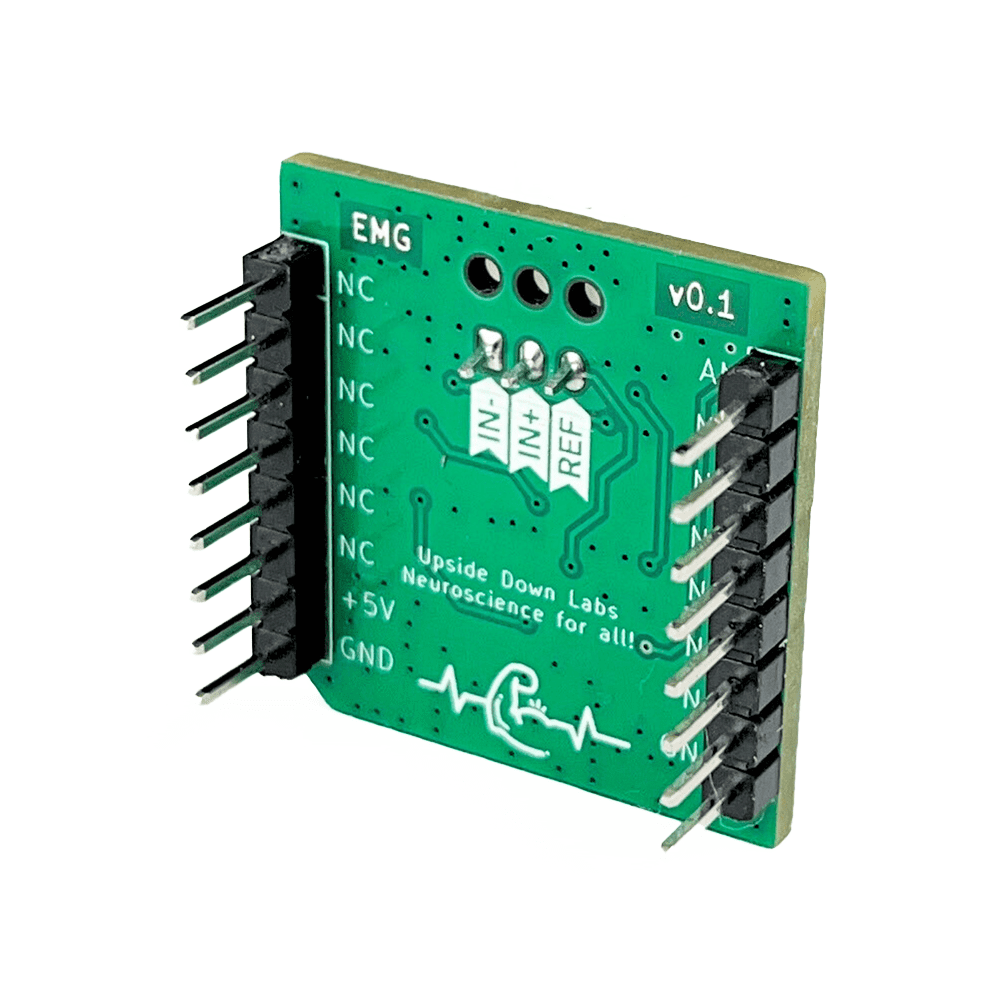

Pinout Diagram:

Connection Diagram:

Note:

1. Arduino Uno and breadboard are not included in the kit.
2. Click board is a registered trademark of MIKROE thus you might see a white mark on the Muscle BioAmp Blip v0.1 (since the sensor was named as Muscle BioAmp Click earlier).
3. mikroBUS™ is a socket standard developed by MIKROE which enables hundreds of Click boards™ to be connected to the microcontroller or microprocessor.
4. Arduino Uno and breadboard are not included in the kit.

Features and Specifications:

1. Operating Voltage: 5V
2. Input Impedance: 10^12 Ω
3. Fixed Gain: x2420
4. Bandpass Filter: 72 – 720 Hz
5. Compatible Hardware: Any development board with an ADC (Arduino UNO & Nano, Adafruit QtPy, STM32 Blue Pill, BeagleBone Black, Raspberry Pi Pico, to name just a few) or a standalone ADC of your choice
6. Biopotentials: EMG (Electromyography)
7. No. of channels: 1
8. Electrodes: 3 (Positive, negative and reference)
9. Dimensions: 2.54 x 2.86 cm
10. Open Source: Hardware + Software

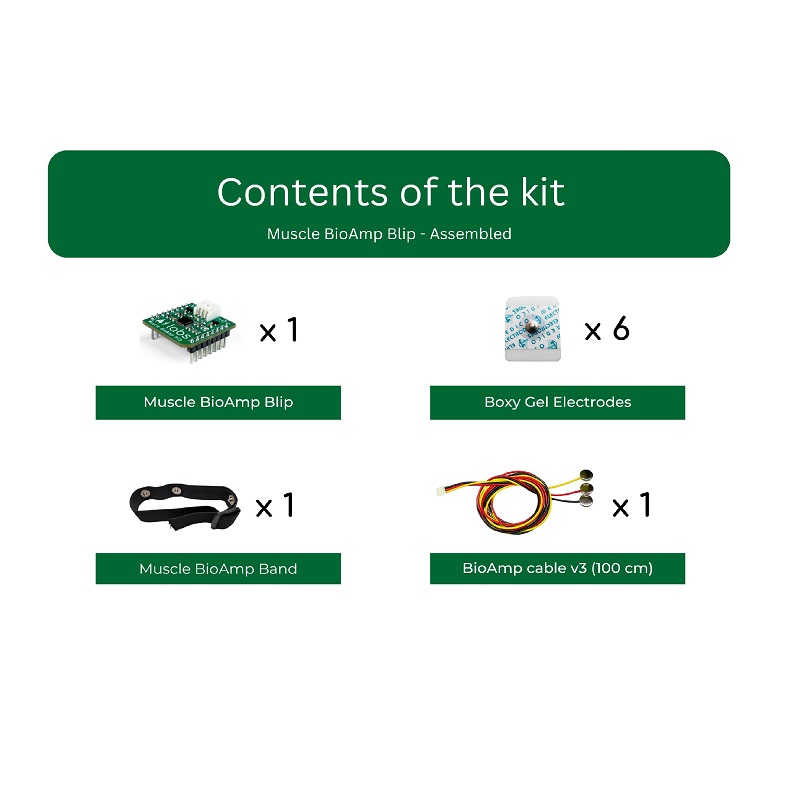

Package Includes:

1 x Muscle BioAmp Blip (Assembled)
1 x  BioAmp Cable v3 (100cm)
6 x Boxy Gel Electrodes
1 x Muscle BioAmp Band

Useful Links:

Complete Documentation:

https://docs.upsidedownlabs.tech/hardware/bioamp/muscle-bioamp-blip/index.html
