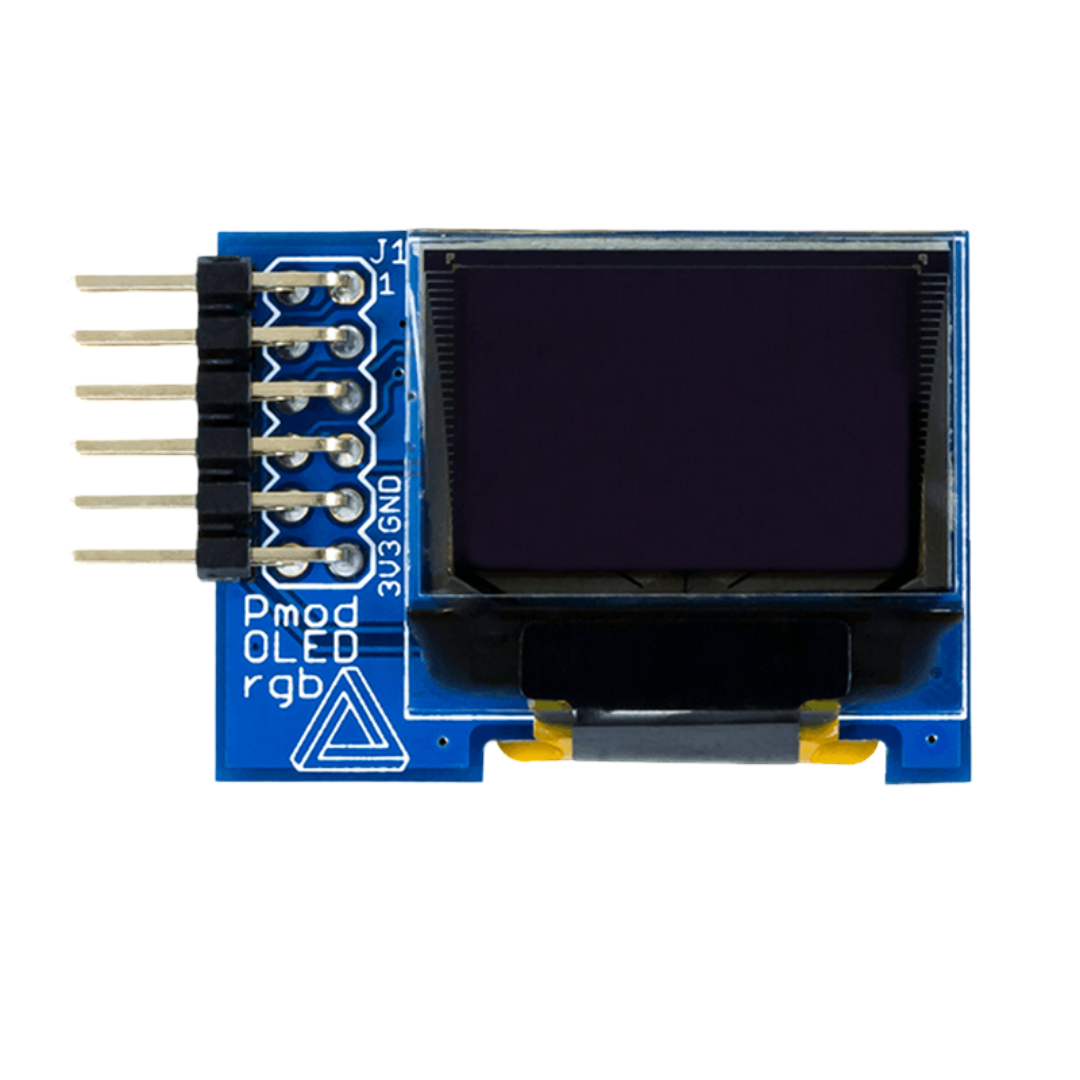

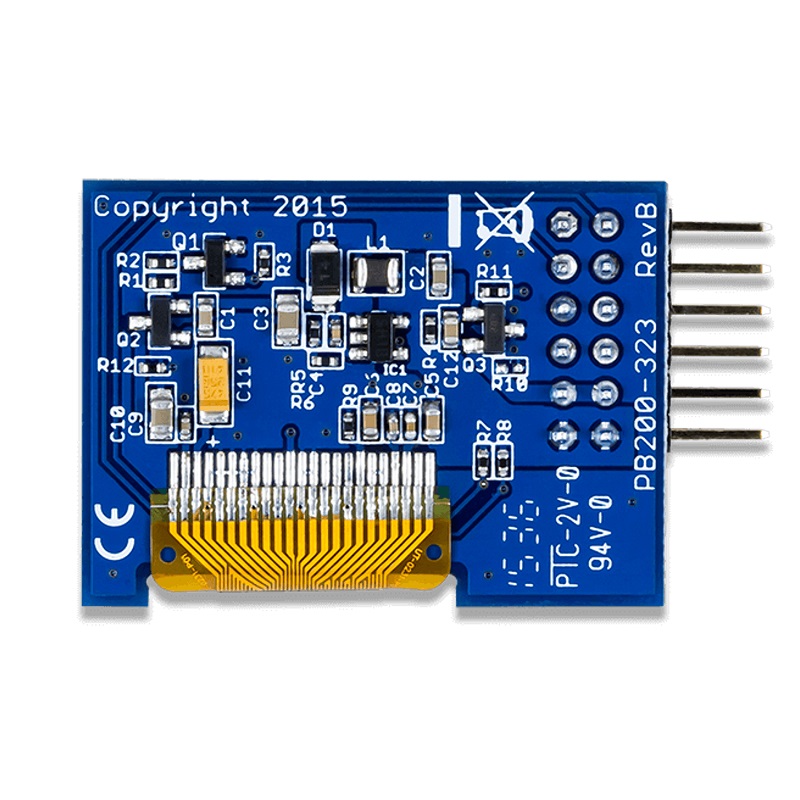

Digilent Pmod OLEDrgb: 96 x 64 RGB OLED Display with 16-bit Color Resolution
- 96×64 pixel RGB OLED screen
- 0.8“ x 0.5” graphical display
- 16-bit color resolution
- Two low-power display shutdown modes
SKU: Not Found
Brand: Digilent
Out of stock
₹2583.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Pmod OLEDrgb features a 96 x 64 pixel RGB OLED display that is capable of 16-bit color resolution. As a graphical display, users may show off graphs, full-color pictures, text, and anything else they want to see by communicating with it through a standard SPI interface. This module uses the ug-9664hddag01 display from Univision Technology Inc. and Solomon Systech SSD1331 display controller.
Features:
- 96×64 pixel RGB OLED screen
- 0.8“ x 0.5” graphical display
- 16-bit color resolution
- Two low-power display shutdown modes
- Small PCB size for flexible designs (1.4“ x 1.0”)
- 12-pin Pmod connector with SPI interface
- Library and example code available in resource center
Package Includes:
1 x Digilent Pmod OLEDrgb: 96 x 64 RGB OLED Display with 16-bit Color Resolution
Technical Specifications
| Model | OLED Display Module |
|---|---|
| PCB Size ( L x W ) mm | 1.4“ x 1.0” |
| Pixel | 96×64 |
| Pmod connector | 12-pin |
| Resolution | 16-bit color |
| Shipping Dimensions | 10 × 8 × 1 cm |
| Shipping Weight | 0.009 kg |
