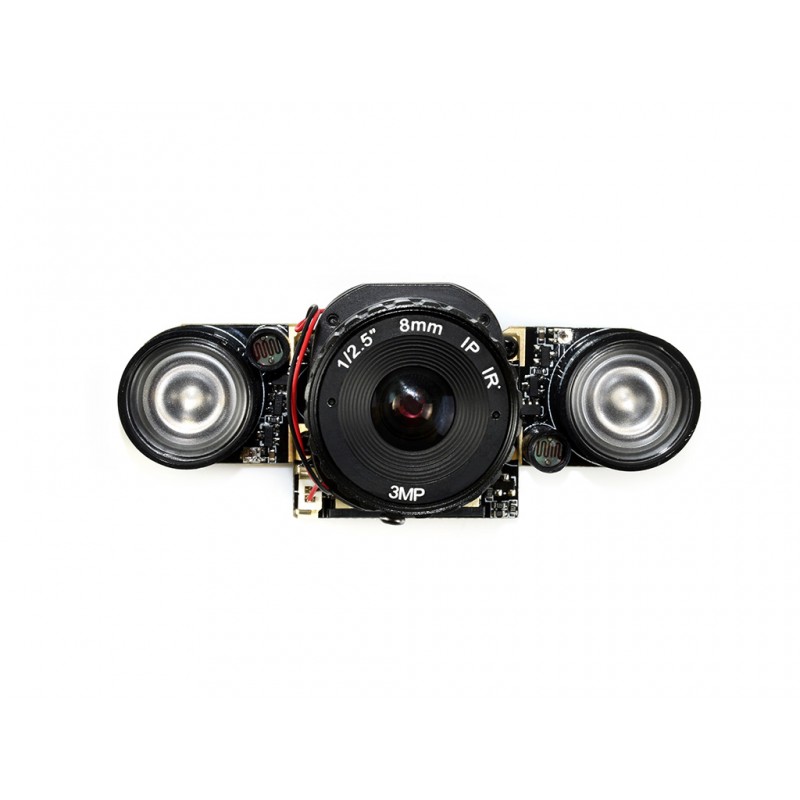

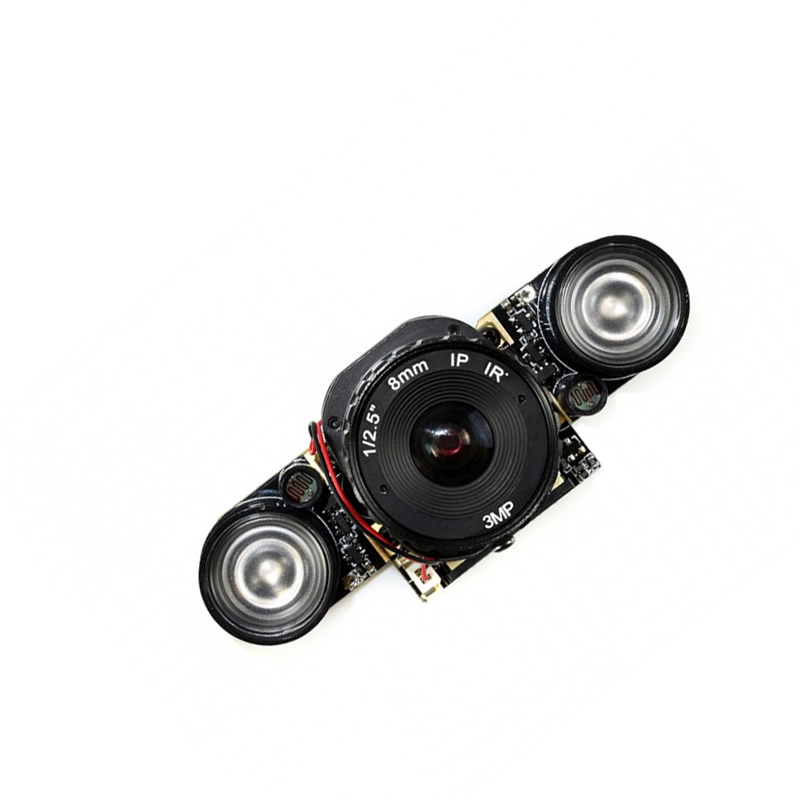

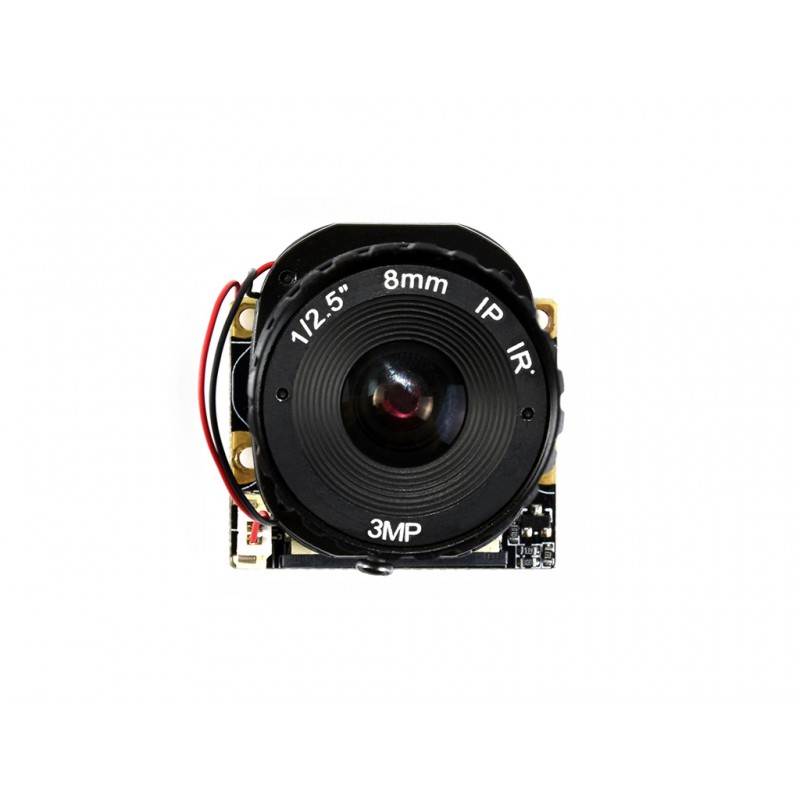

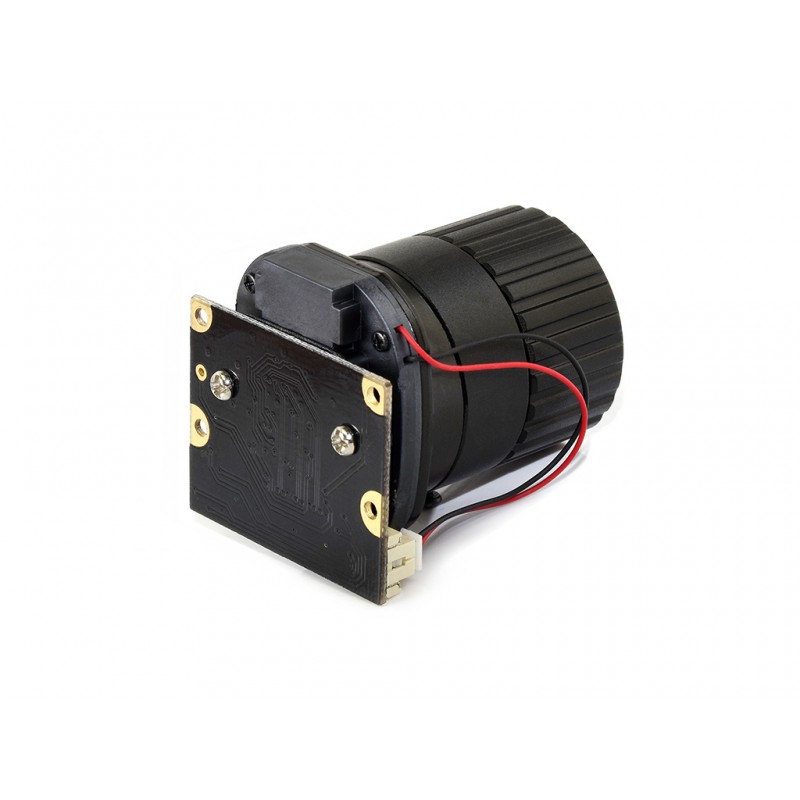

Waveshare RPi IR-CUT Camera (B), Better Image in Both Day and Night
- Brand: Waveshare
- product: RPi IR-CUT camera
- Sensor: OV5647
- Megapixel: 5
- Sensor best resolution : 1080p
- Aperture (F) : 1.4
- Focal Length : 8mm
SKU: Not Found
Brand: WAVESHARE
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B. After the Bullseye version of the Raspberry Pi image, the underlying Raspberry Pi driver was switched from Raspicam to libcamera. libcamera is an open-source software stack (will be called driver later, which is easy to understand), which is convenient for third-party porting and development of their own camera drivers. As of 2021-12-20, there are still many bugs in libcamera, and the current libcamera does not support python, so the Raspberry Pi official still provides a method for installing and downloading raspicam. For users who are difficult to switch to libcamera but need to use the latest system, please directly refer to the Raspicam instructions.
Feature:

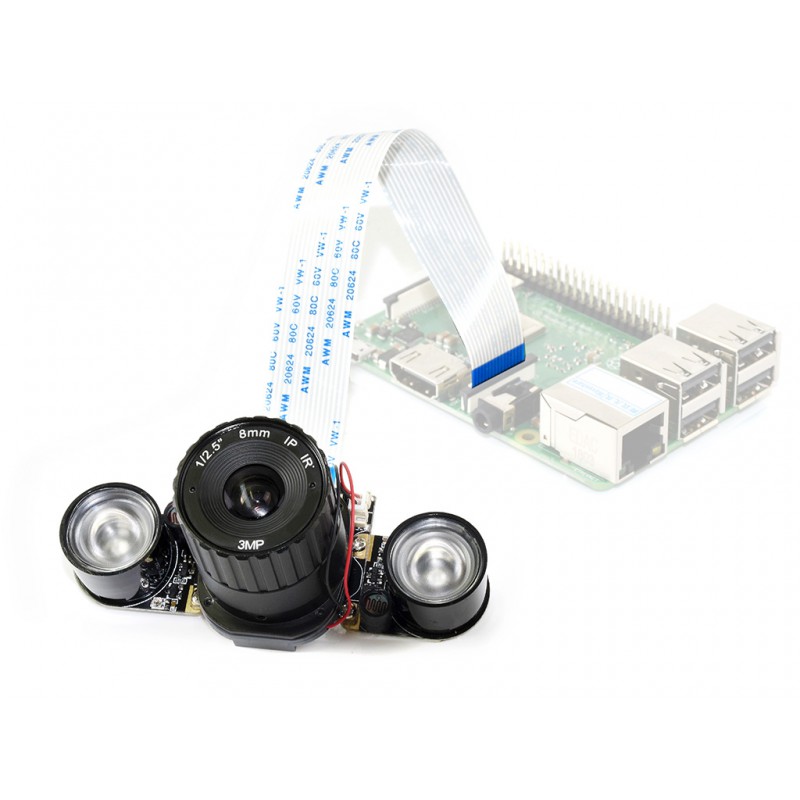

- Raspberry Pi Camera, supports all revisions of the Pi

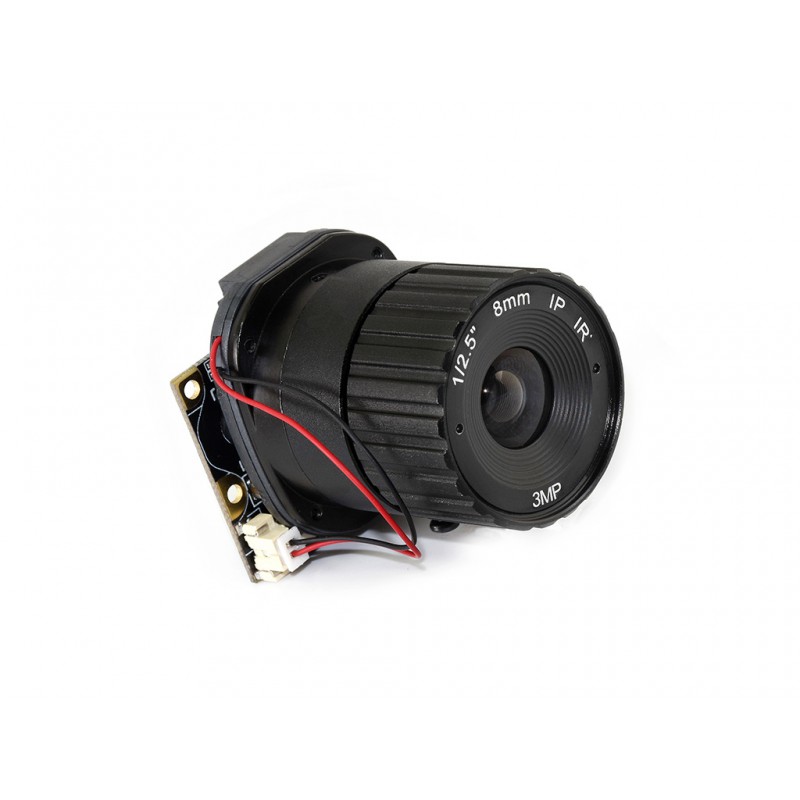

- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor

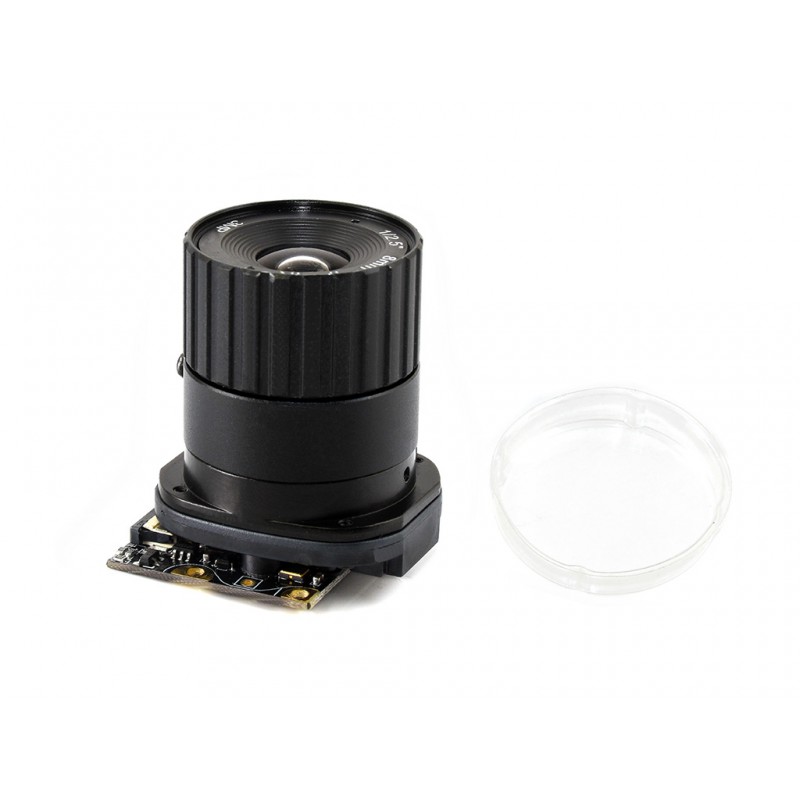

- Adjustable focus distance
Package Include:

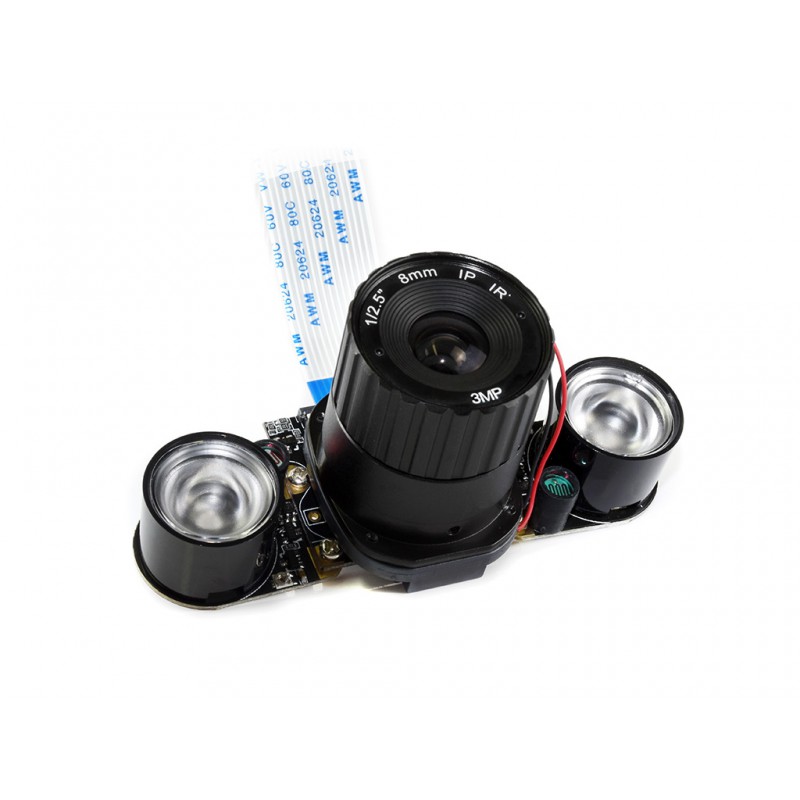

1 X RPi IR-CUT Camera
2 X Infrared LED Board
1 X 15-pin FFC (opposite sides contact)
Technical Specifications

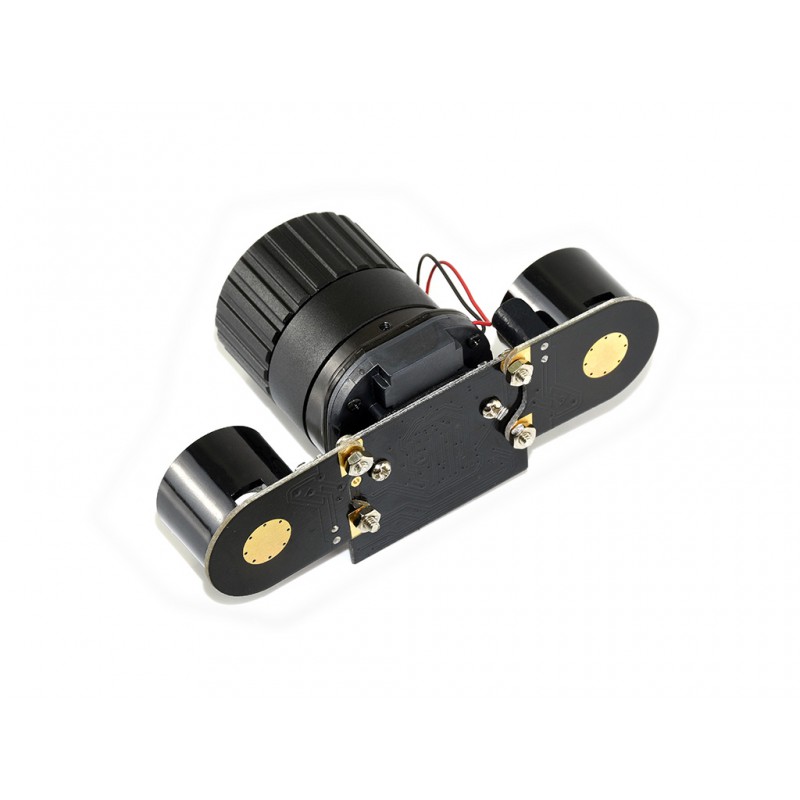

| 4 screw holes | Provides 3.3V power output |
|---|---|
| Additional Specs. | Camera CCD size: 1/4inch |
| Angle of View (diagonal) | 40 degree |
| Aperture (F) | 1.4 |
| Focal Length (mm) | 8mm |
| Item Type | Camera Module |
| Operating Voltage (V) | 3.3 |
| Resolution | 5MP (2592 x 1944) |
| Sensor best resolution | 1080p |
| Shipping Dimensions | 8 × 9 × 4 cm |
| Shipping Weight | 0.086 kg |
| Supported | Infrared LED and/or fill flash LED |
